Component Locations

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Brake Fluid Level Indicator Switch On Left Side Of Brake Fluid Reservoir
Data Link Connector (DLC) Behind Left Side Of Instrument Panel, Below Steering Column
Door Control Module (DCM) Behind Bottom Center Of Door Trim Panel
Engine Coolant Level Indicator Switch In Right Rear Corner Of Engine Compartment, In Bottom Of Coolant Reservoir
Parking Brake Switch In Center Console, Under Parking Brake
Underhood Electrical Center Right Rear Corner Of Engine Compartment, Between Battery & Coolant Reservoir
Windshield Washer Solvent Level Switch Rear Of Washer Fluid Reservoir
Fig 1: Locating Powertrain Control Module (PCM)
G00011673Courtesy of GENERAL MOTORS CORP.

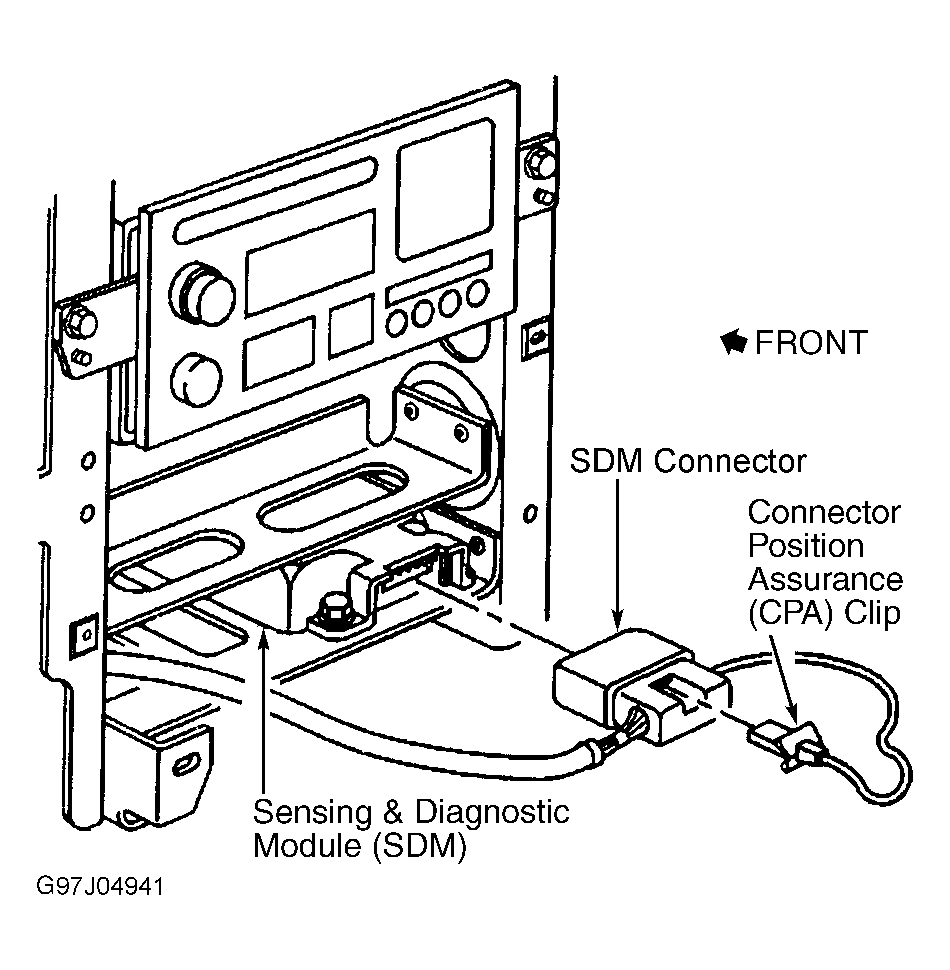

Fig 2: Locating Sensing & Diagnostic Module (SDM)
G97J04941Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Body Control Module (BCM)
G97J28208Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Body Control Module (BCM) & Star Connectors
G00011676Courtesy of GENERAL MOTORS CORP.

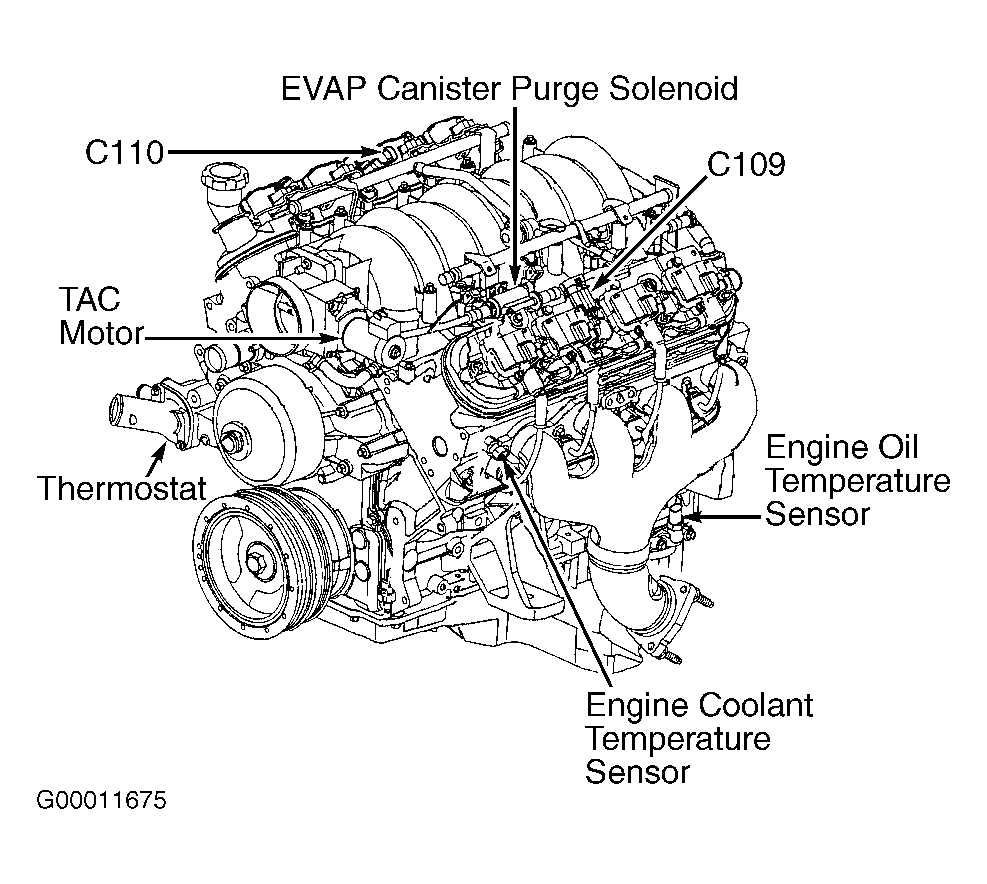

Fig 5: Locating Engine Oil & Coolant Temperature Sensors
G00011675Courtesy of GENERAL MOTORS CORP.
Fig 6: Locating Instrument Panel Components
G00011674Courtesy of GENERAL MOTORS CORP.
