Section 10 (Analog Instrument Panels): Description
WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Deactivate air bag system before performing any service operation. See appropriate AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

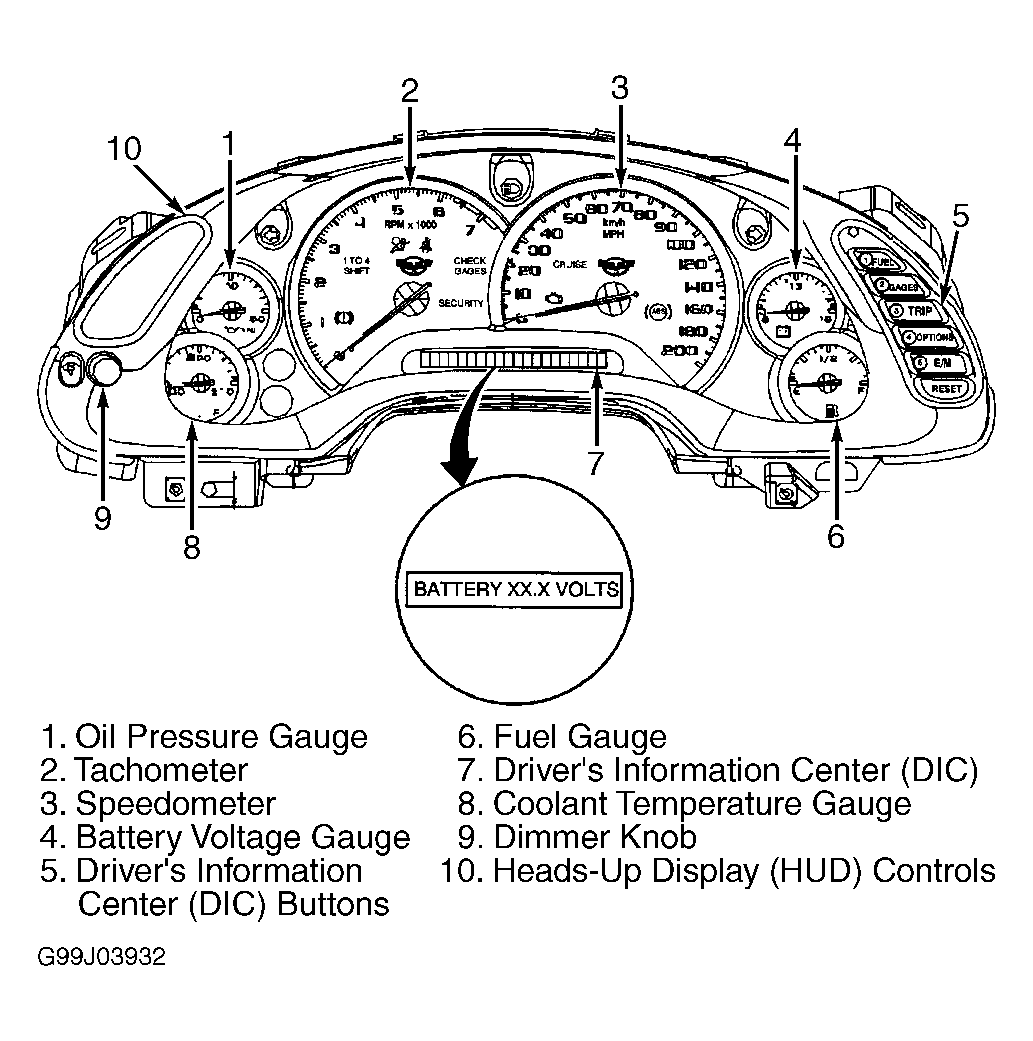

Instrument Panel Cluster (IPC) contains gauges for speedometer, fuel level, tachometer, coolant temperature, oil pressure and voltage. Warning indicator lights are used for: turn signals, high beam, fasten seat belt, air bag, brake system, check gauges, ABS, Malfunction Indicator Light (MIL), SECURITY, MPH, traction system, and 1-4 SHIFT. IPC can also perform ambient light sensor processing, chime functions, warning/status message display and Driver Information Center (DIC) functions. See Fig 1 .
