Exhaust Manifold Heat Shield: Removal

  1. Disconnect oxygen sensor connector from wiring harness.
  2. Remove bolts.
  3. Remove heat shield.
  4. Remove spacers from exhaust manifold (if removing exhaust manifold).

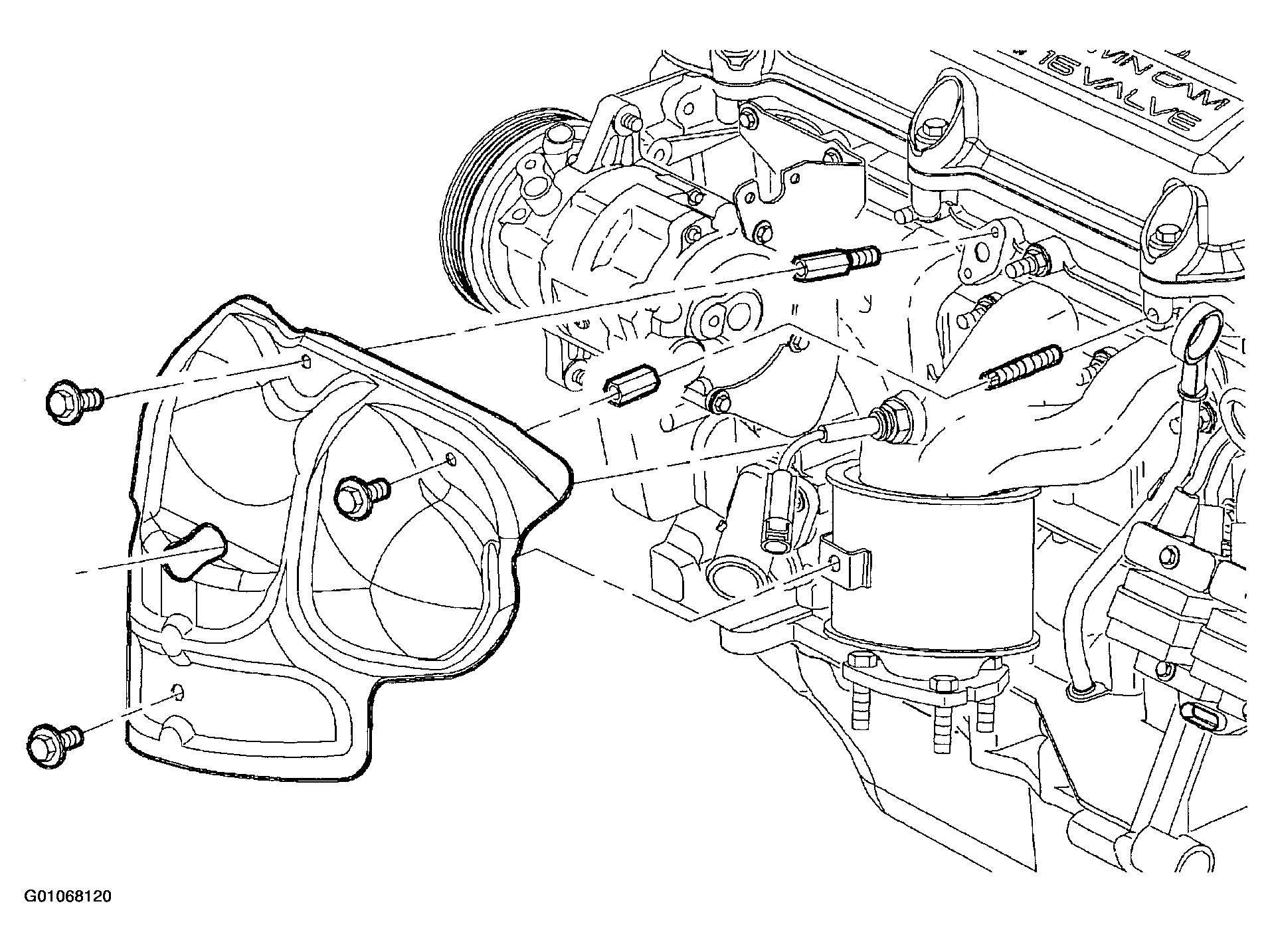

    Fig 1: Identifying Heat Shield And Spacers
    G01068120Courtesy of GENERAL MOTORS CORP.
