Starting And Charging Component Locations
Starting And Charging Component Locations

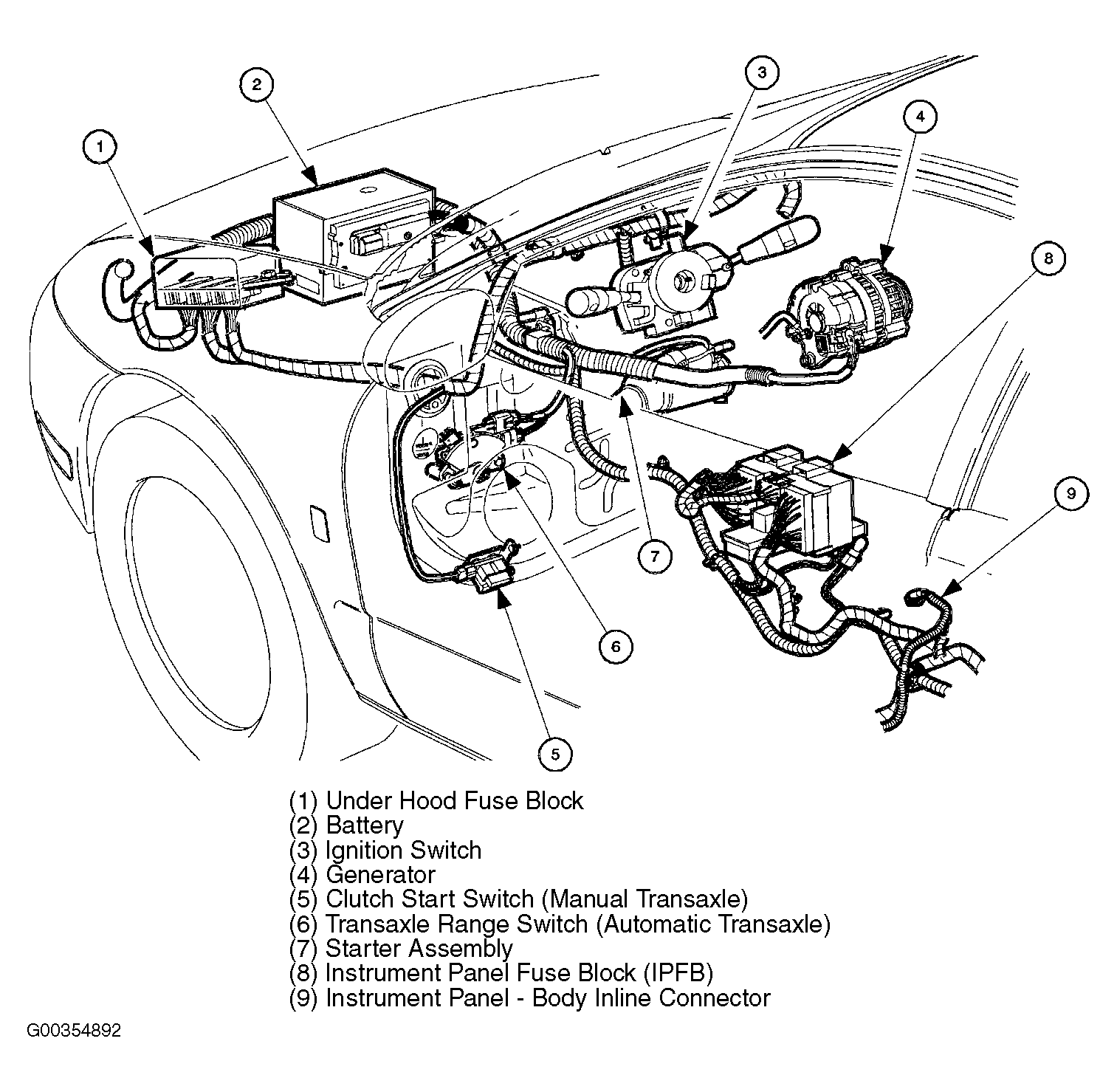

Fig 1: Locating Starting/Charging System Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
