General Description
›
Exhaust System Production Installation
Exhaust System Production Installation

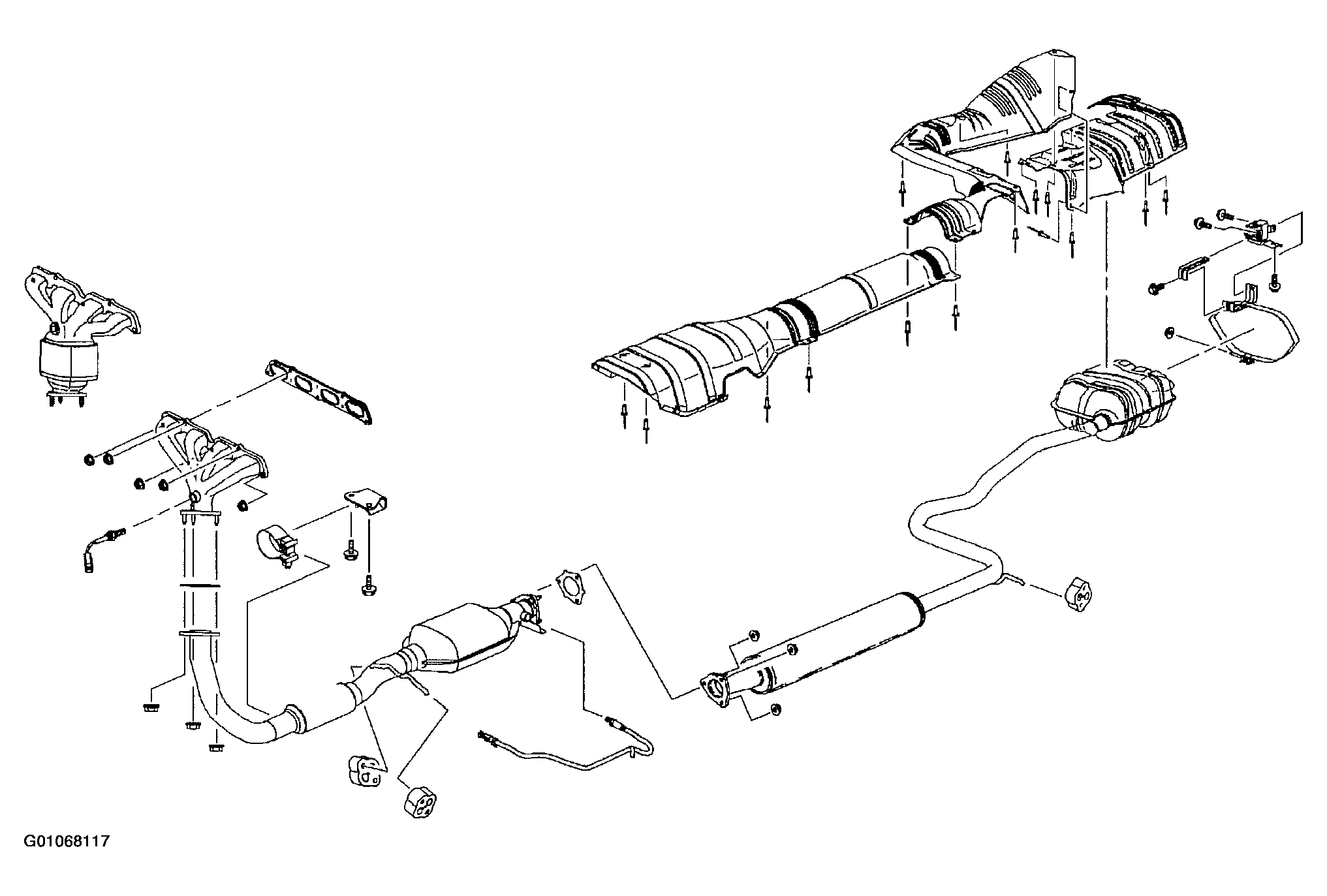

Fig 1: Exploded View OF Exhaust System
Courtesy of GENERAL MOTORS CORP.
