Output Shaft - Component Locations
Output Shaft - Component Locations

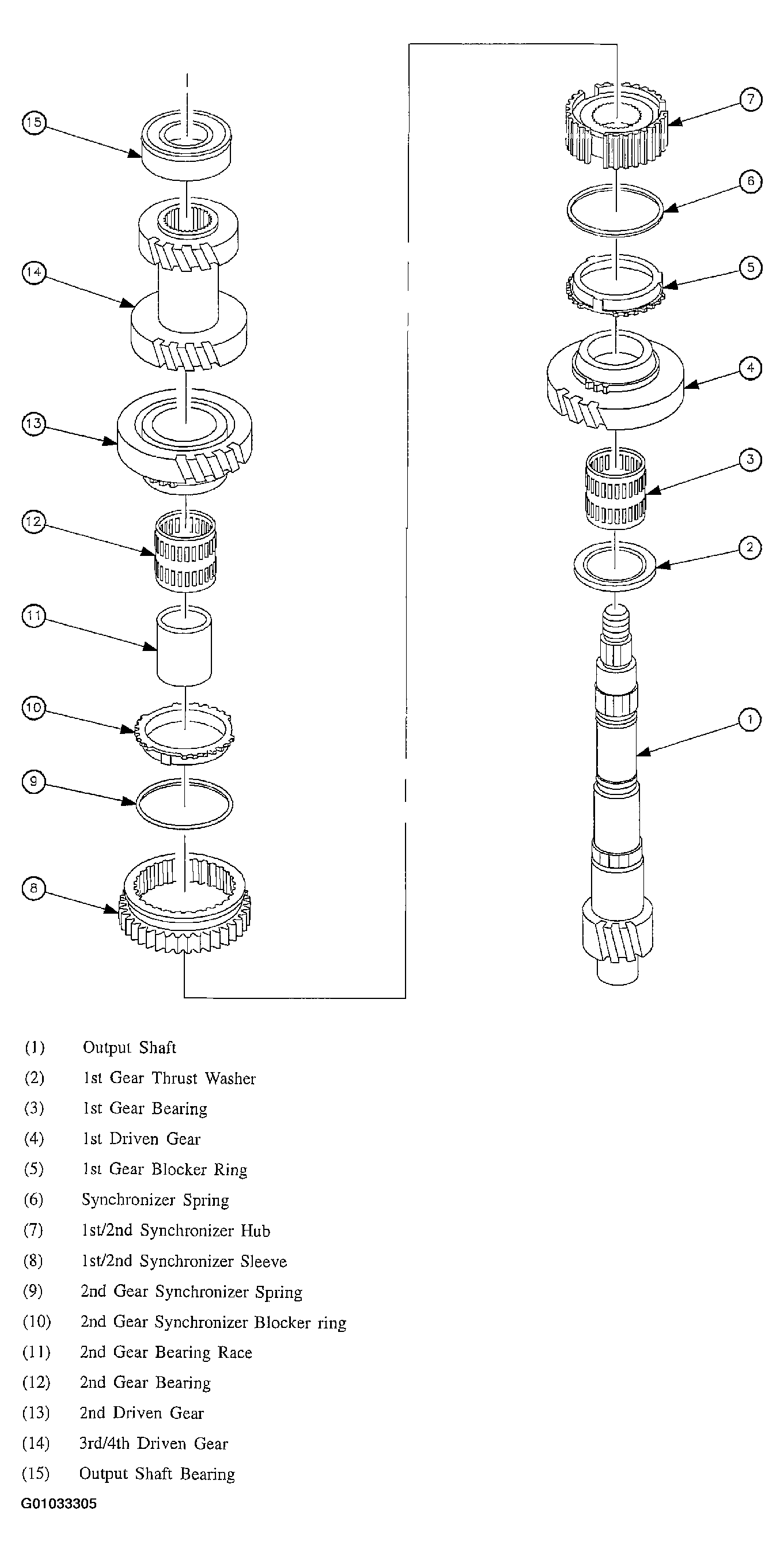

Fig 1: Exploded View Of Output Shaft
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
