Clutch Diagnostic Chart
Clutch Diagnostic Chart

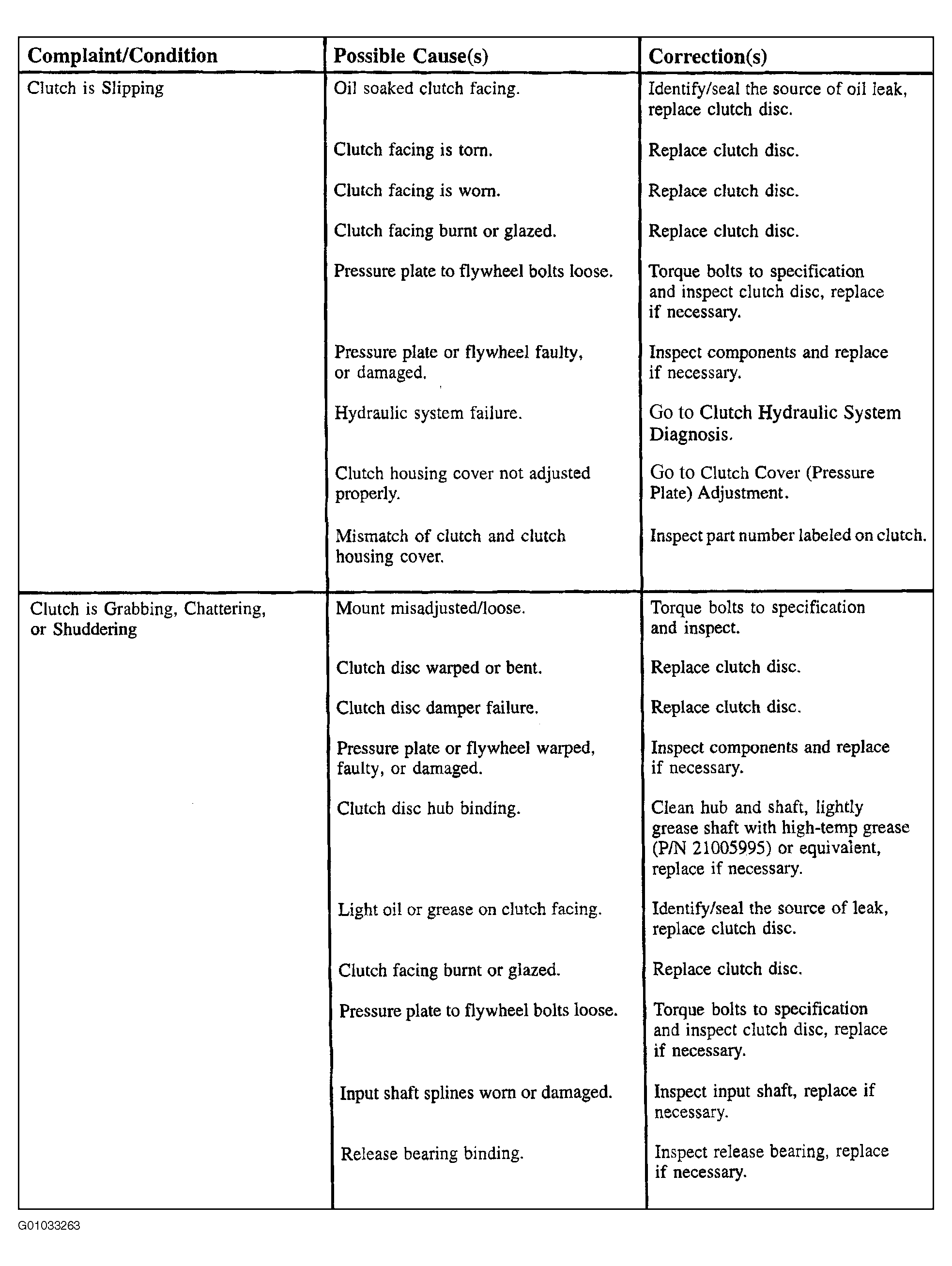

Fig 1: Clutch Diagnostic Chart (1 of 3)
Courtesy of GENERAL MOTORS CORP.

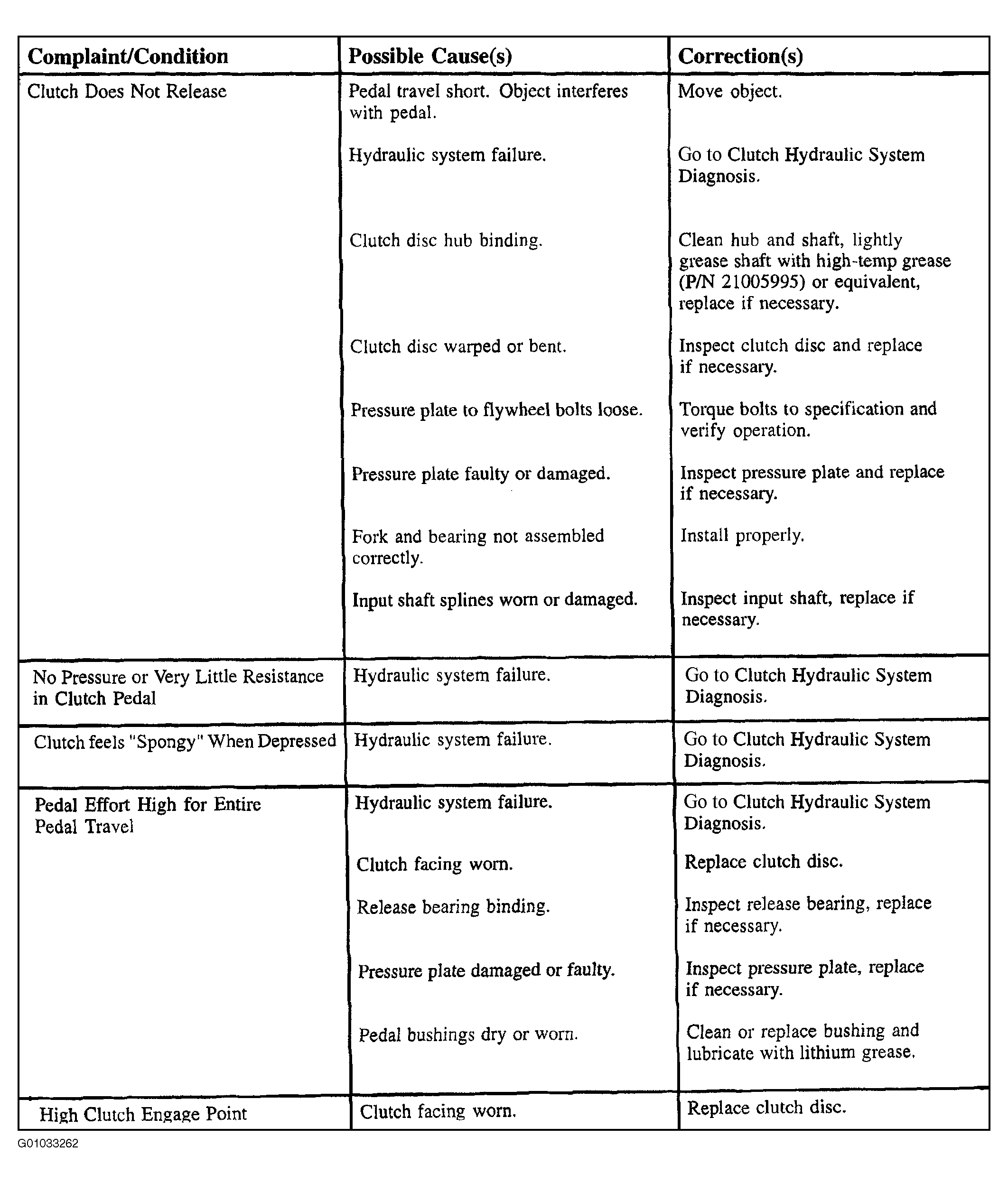

Fig 2: Clutch Diagnostic Chart (2 of 3)
Courtesy of GENERAL MOTORS CORP.

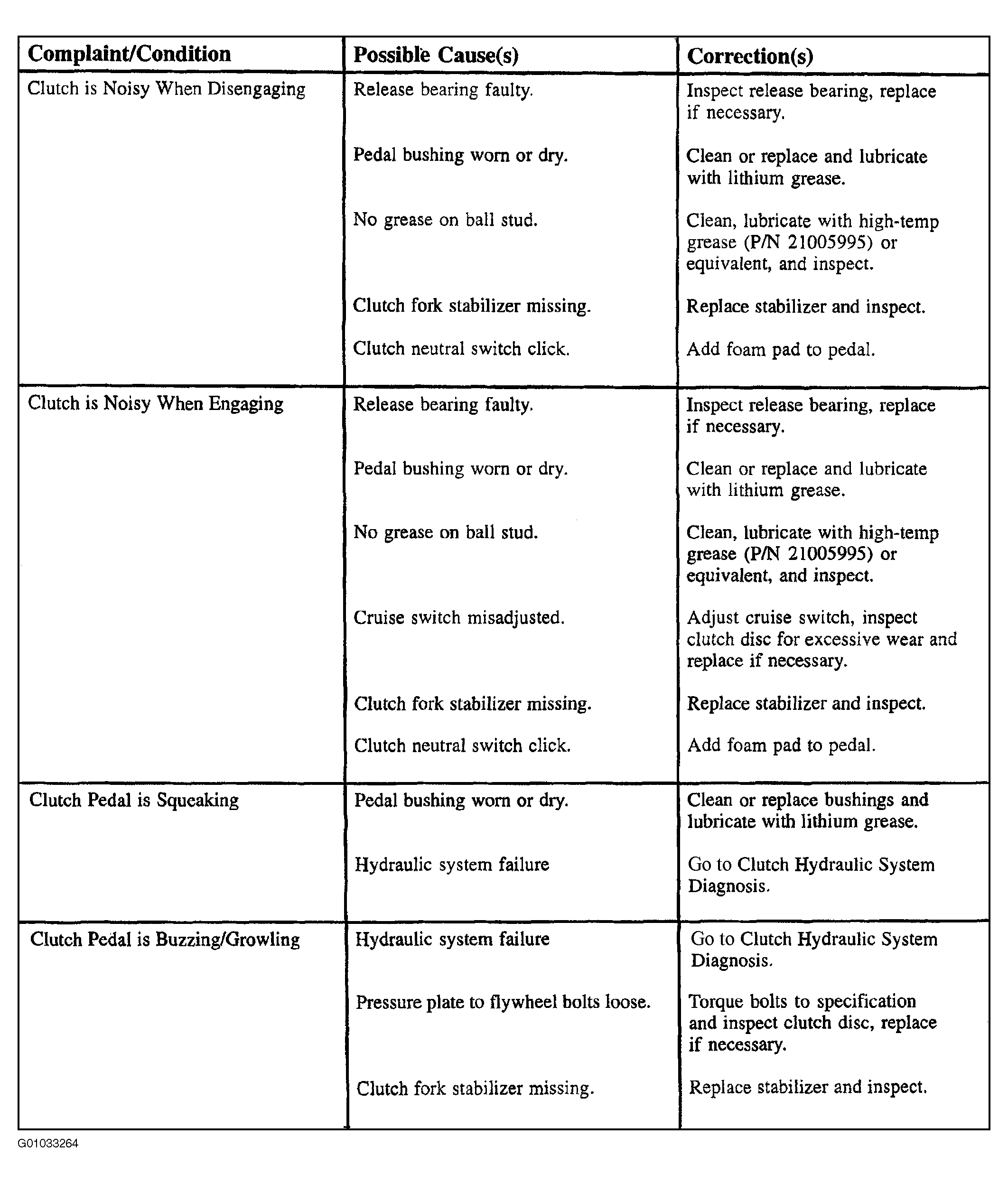

Fig 3: Clutch Diagnostic Chart (3 of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
