80-Pin Powertrain Control Module Connector End View

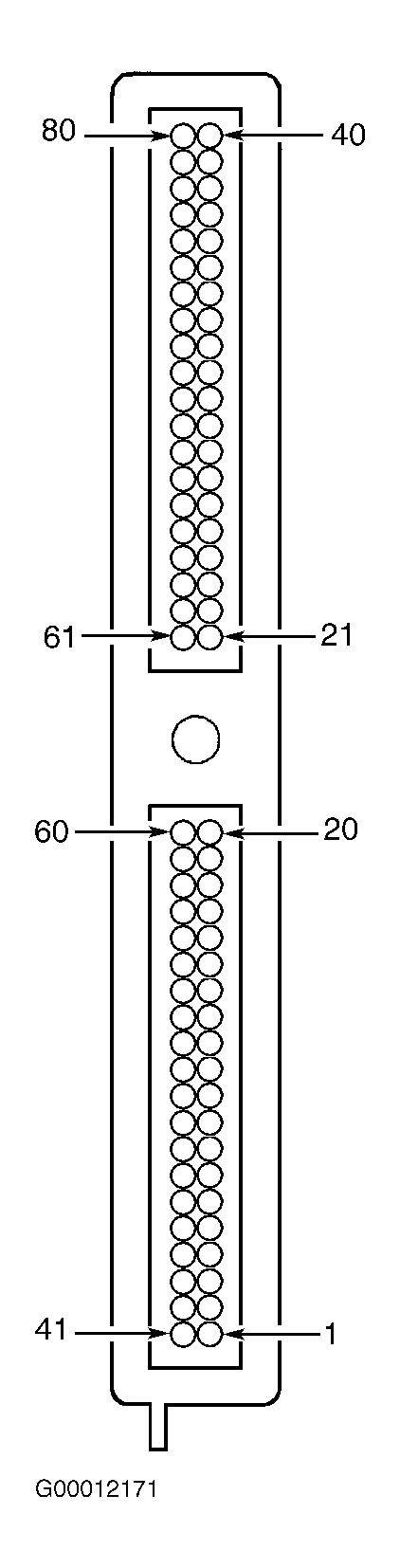

Fig 1: 80-Pin Powertrain Control Module
G00012171Courtesy of GENERAL MOTORS CORP.
