AM/FM Stereo

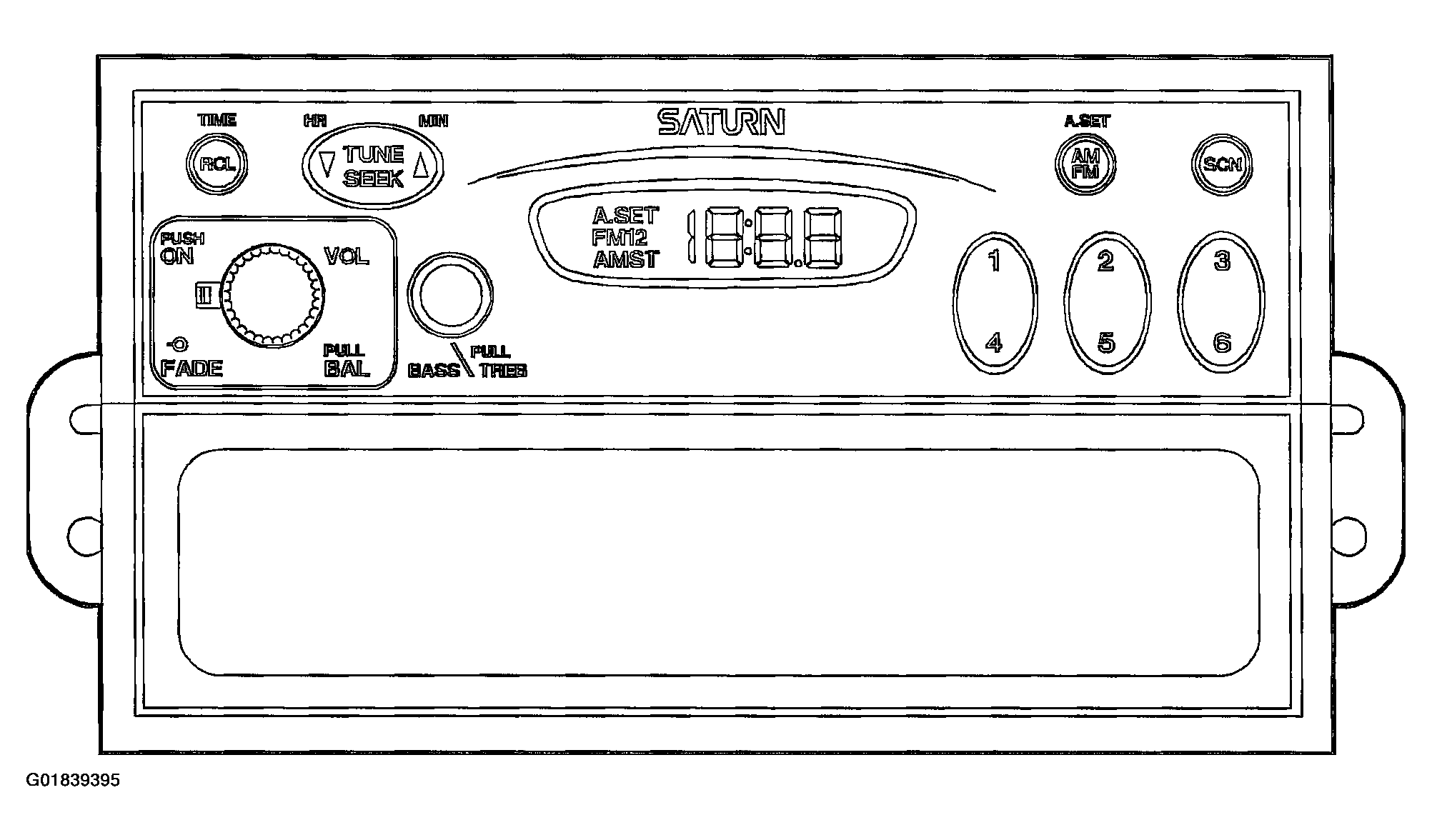

Fig 1: AM/FM Stereo Face
G01839395Courtesy of GENERAL MOTORS CORP.

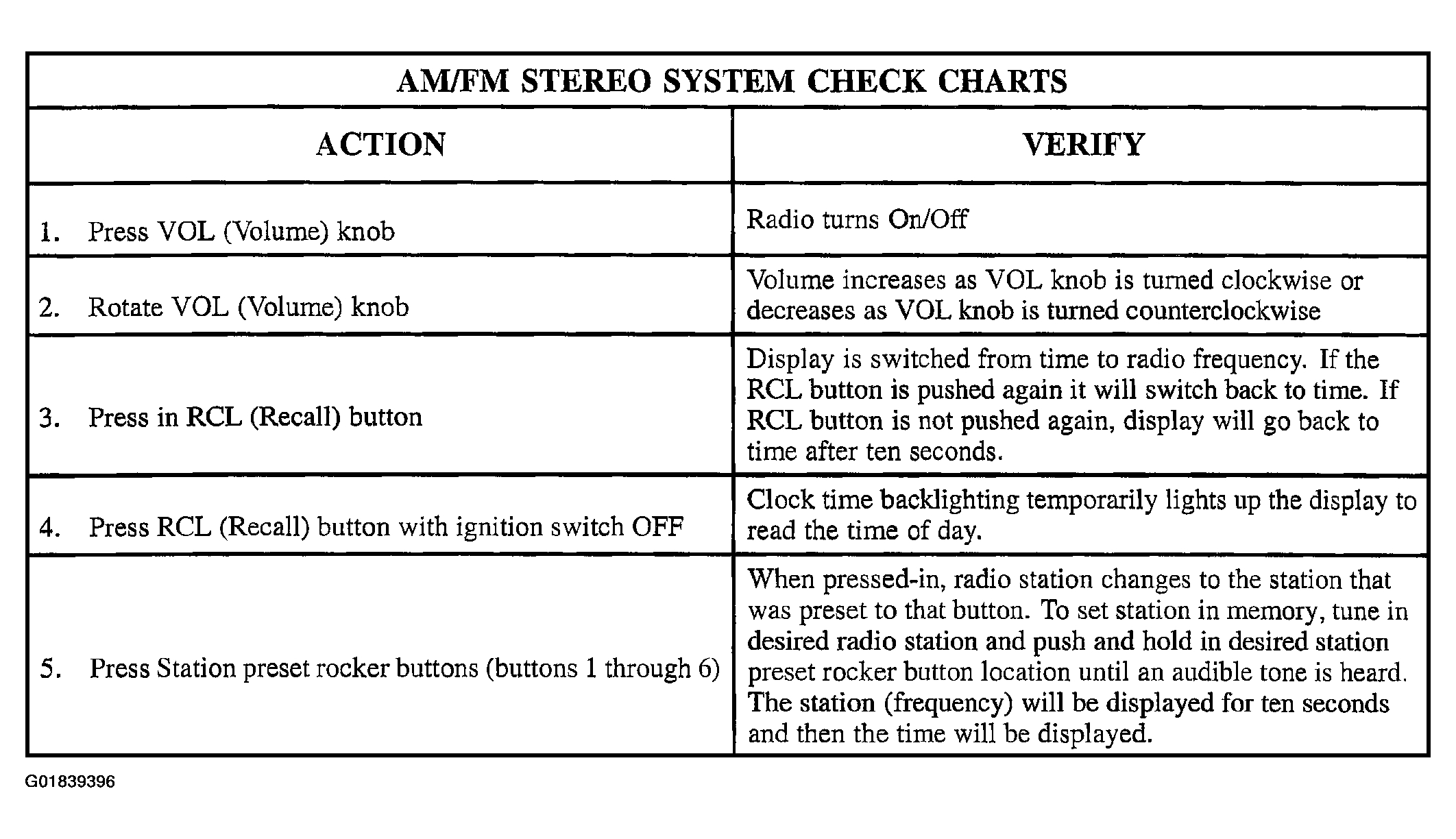

Fig 2: AM/FM Stereo System Check Chart (1 Of 3)
G01839396Courtesy of GENERAL MOTORS CORP.

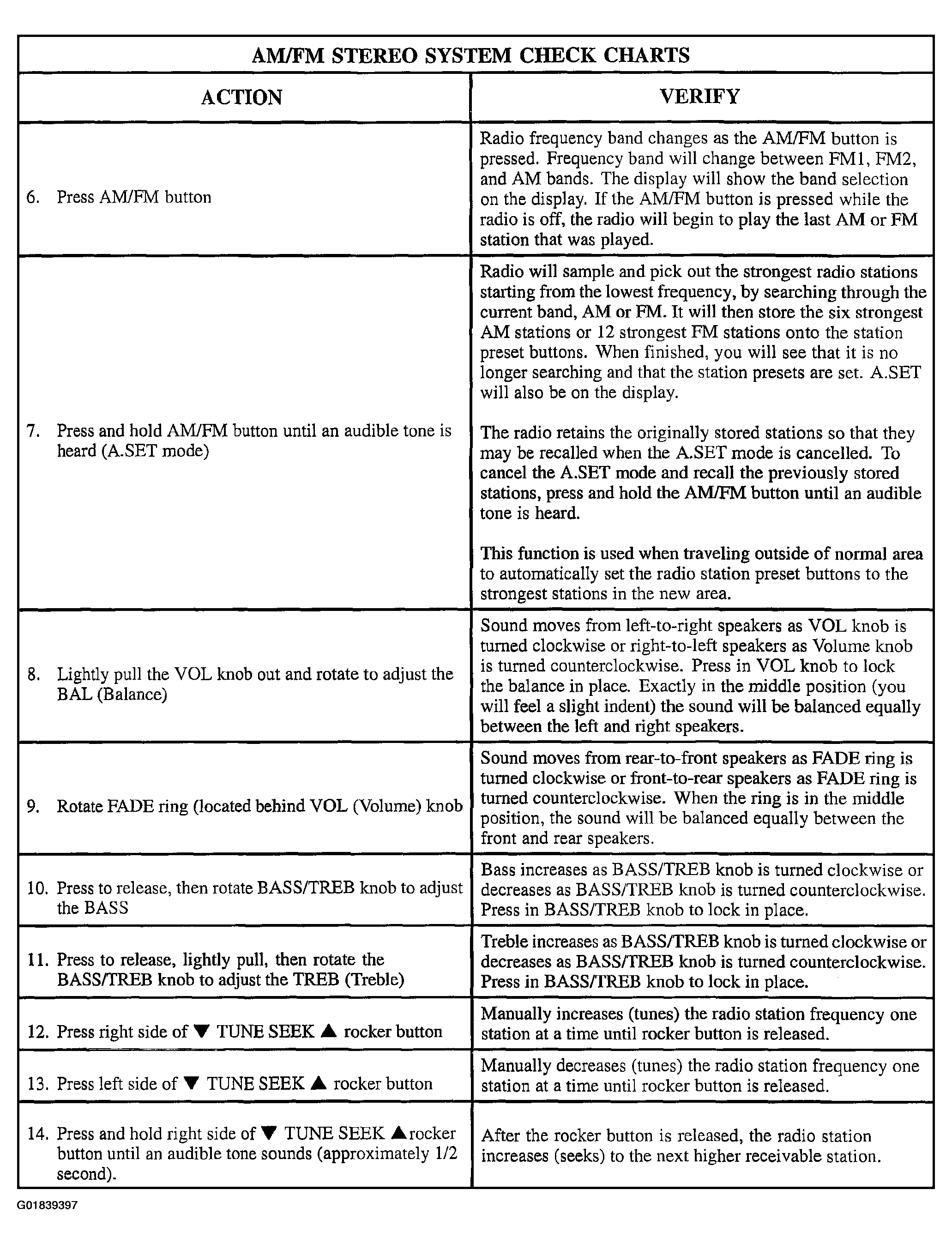

Fig 3: AM/FM Stereo System Check Chart (2 Of 3)
G01839397Courtesy of GENERAL MOTORS CORP.

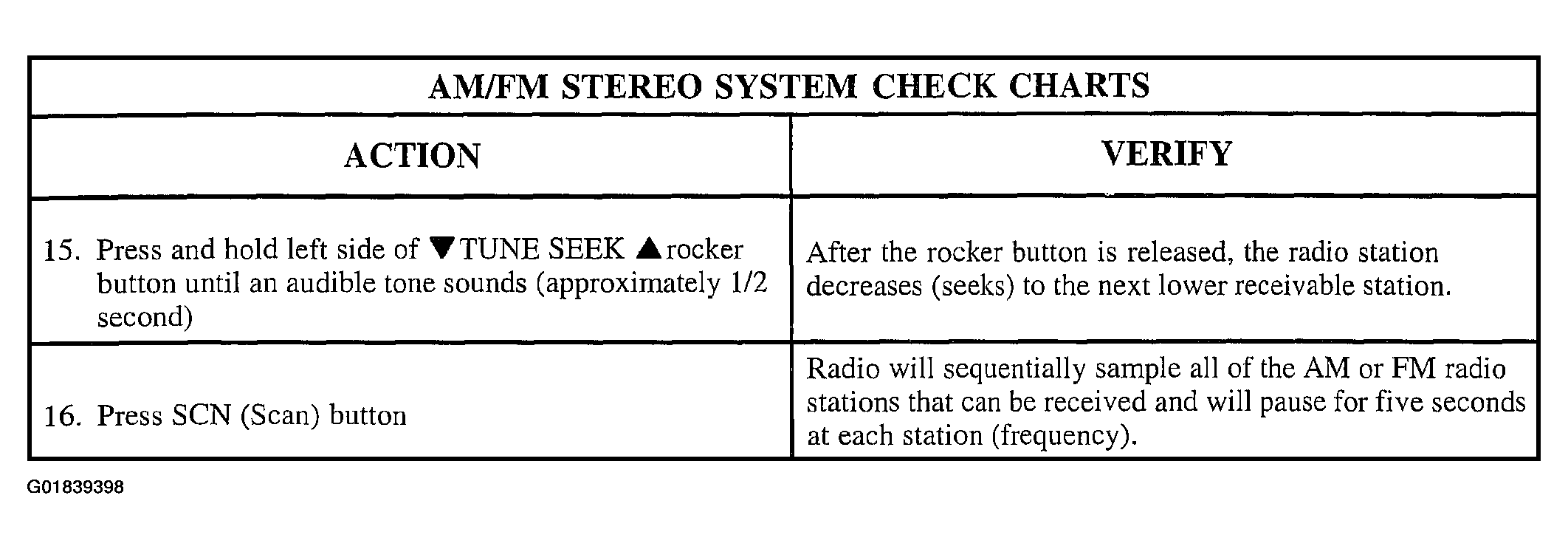

Fig 4: AM/FM Stereo System Check Chart (3 Of 3)
G01839398Courtesy of GENERAL MOTORS CORP.
