Chart 2 - Lock Function Inoperative - Unlock Function Operates Normally
Chart 2 - Lock Function Inoperative - Unlock Function Operates Normally

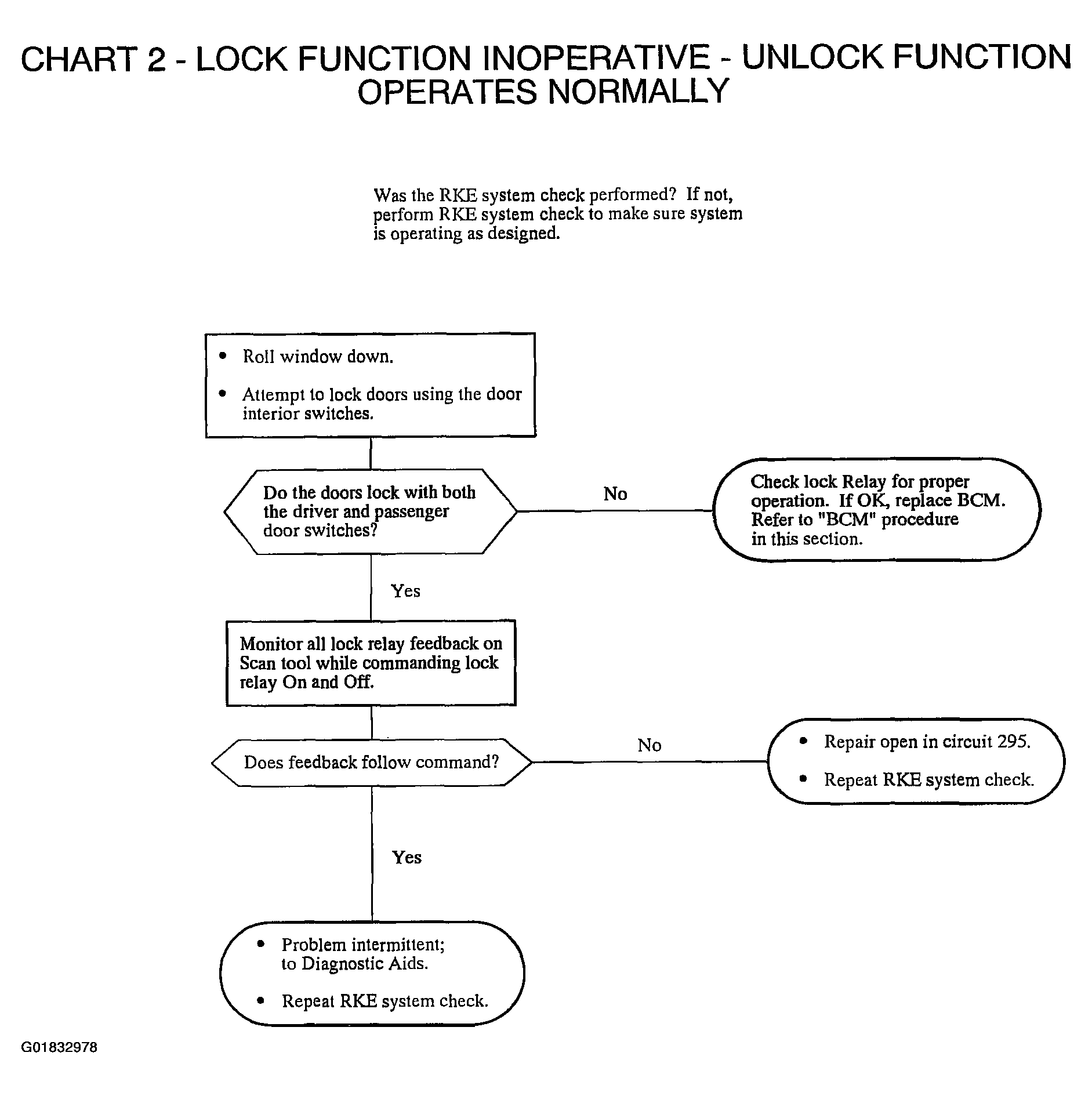

Fig 1: Chart 2 - Lock Function Inoperative - Unlock Function Operates Normally
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
