RKE/Security System Connector Face Views

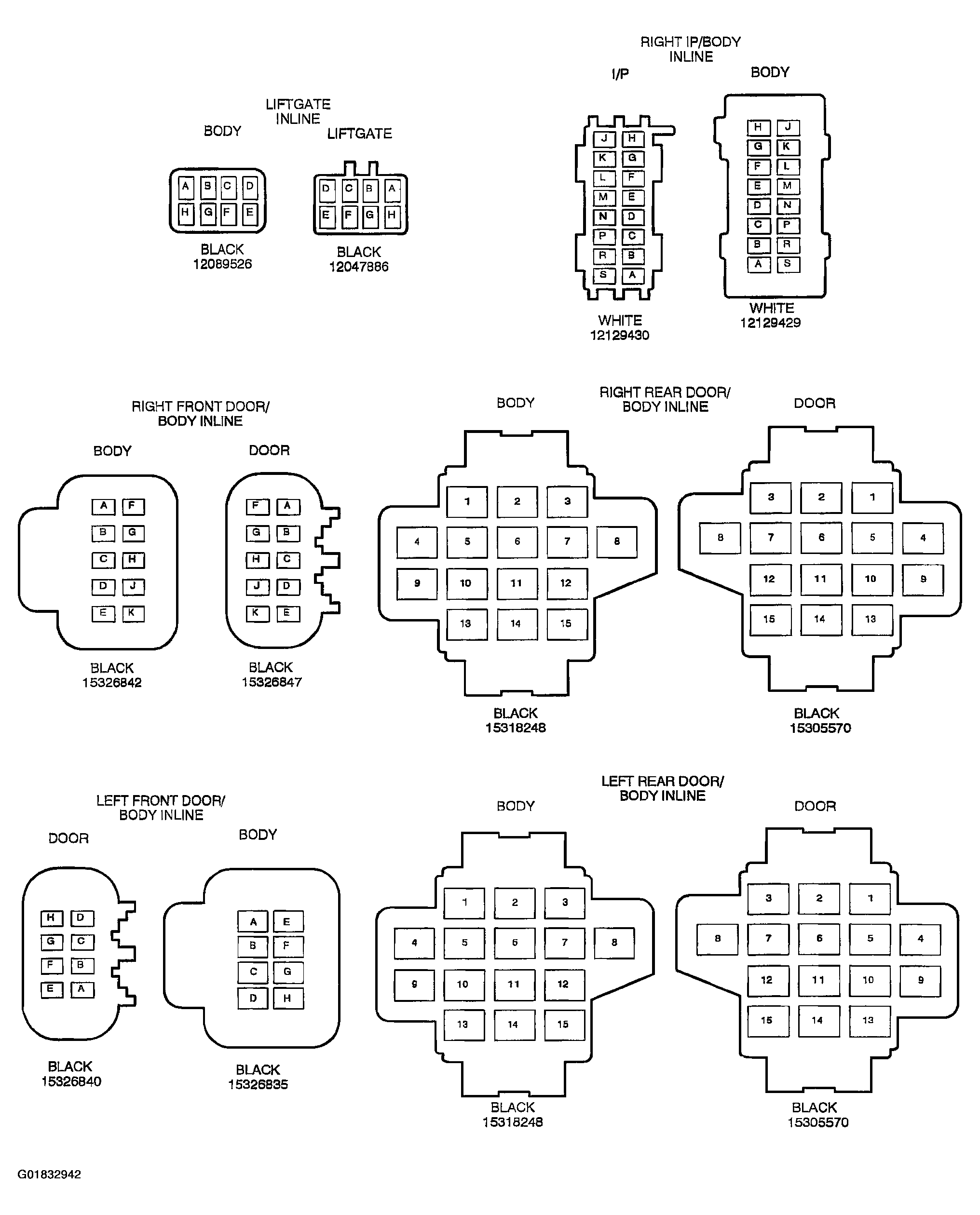

Fig 1: RKE/Security System Connector Face Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

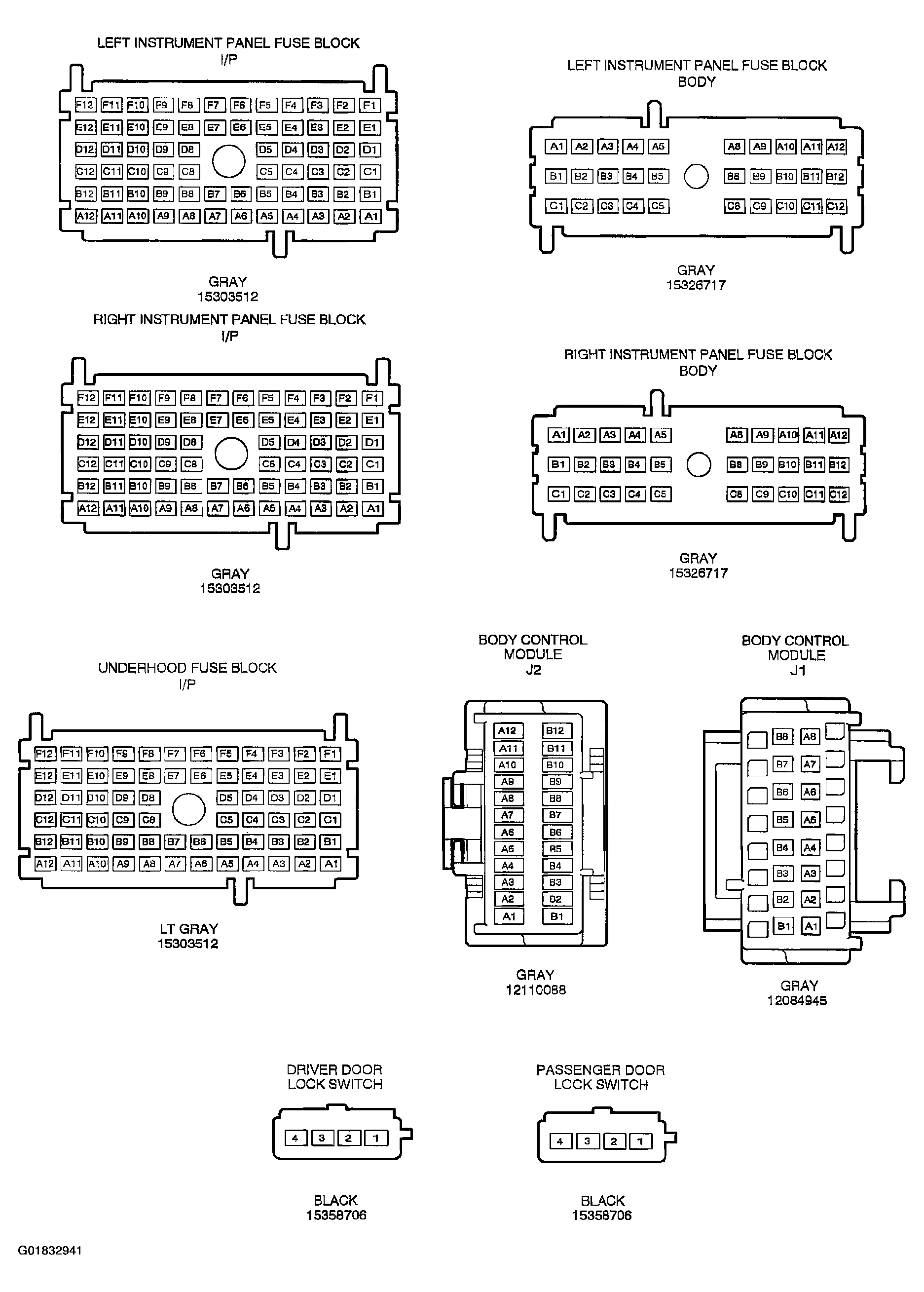

Fig 2: RKE/Security System Connector Face Views (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
