Installation Procedure

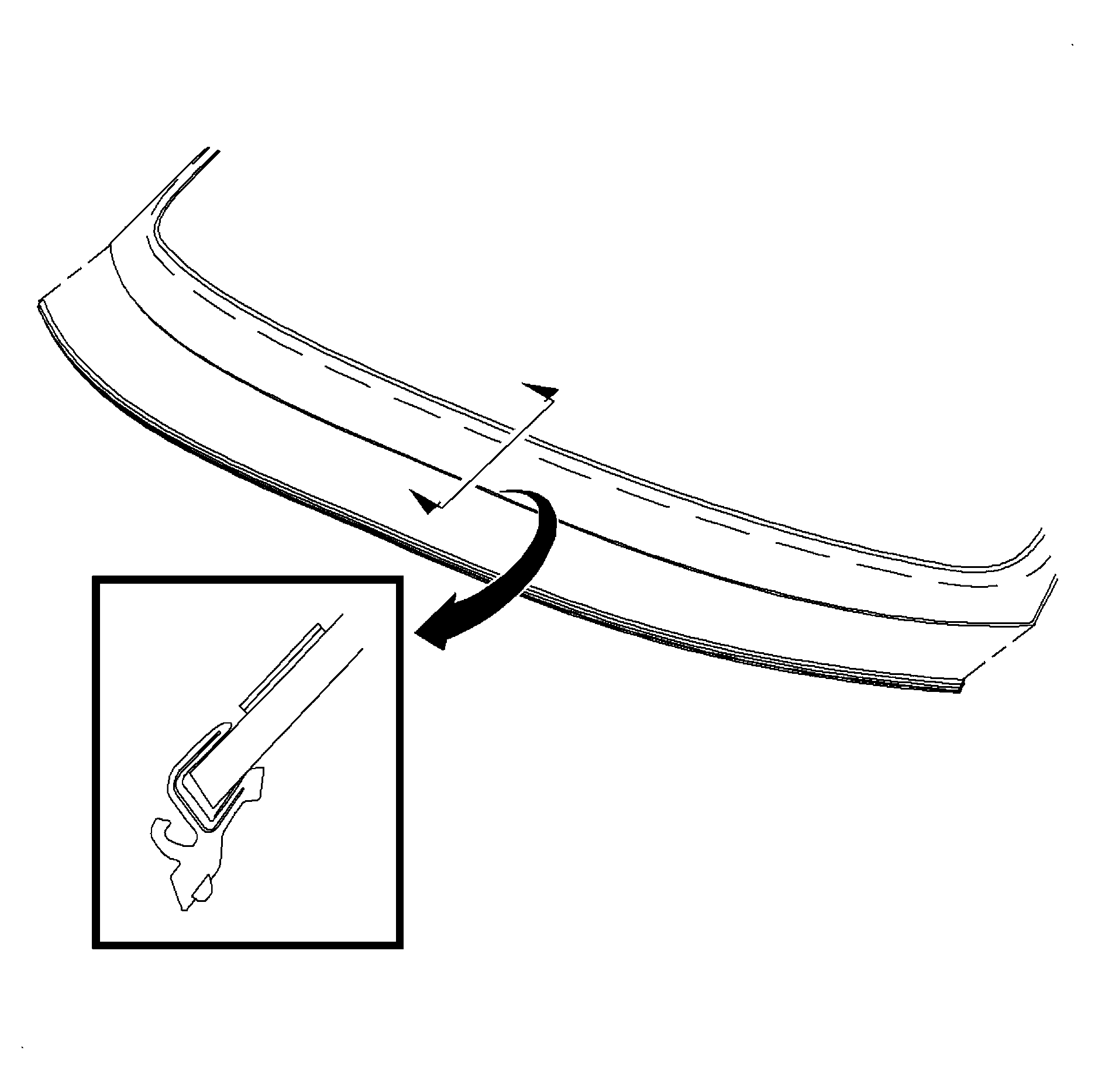

    Fig 1: Removing & Installing Windshield Lower Locator Molding
    GM893729Courtesy of GENERAL MOTORS CORP.
  1. Install the windshield lower locator and upper reveal molding.
    2. IMPORTANT: The adhesive is already in the service part. No additional adhesive is necessary.
  2. Install the windshield. Refer to Windshield Replacement .
