Diagnostic Procedures

To diagnose DTC, see Fig 1 .

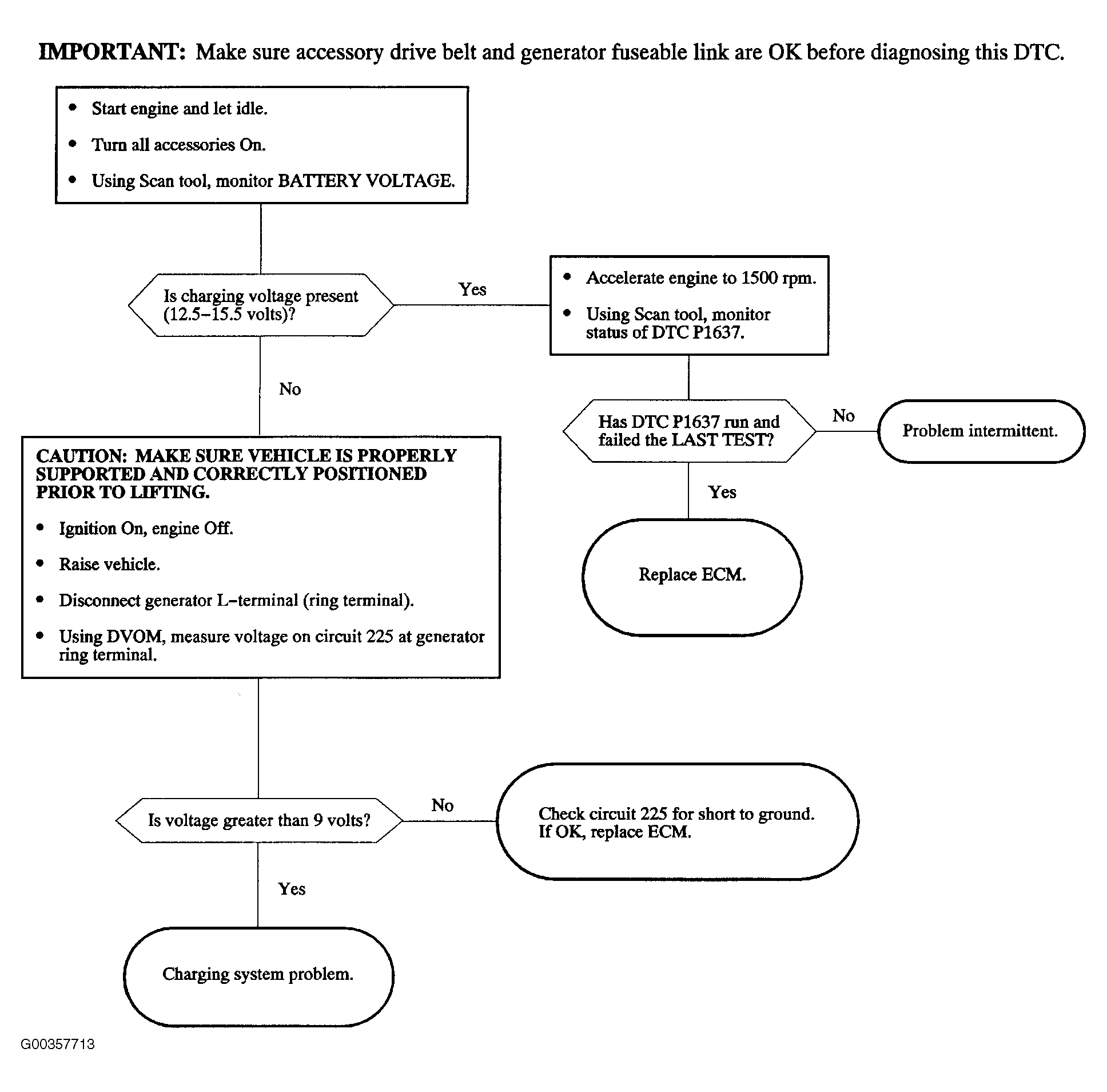

Fig 1: DTC P1637: Generator L-Terminal Circuit
G00357713Courtesy of GENERAL MOTORS CORP.
