Fuel Tank Pressure Sensor: Removal

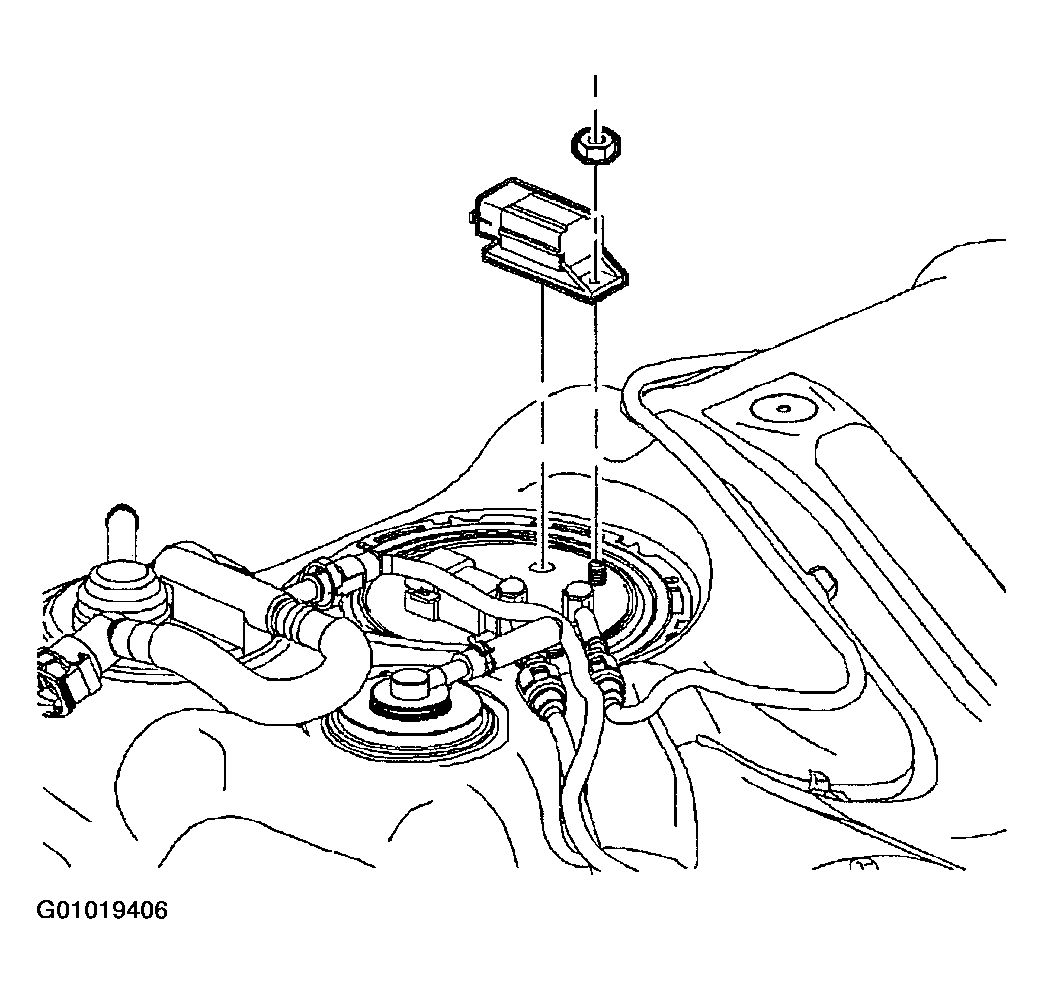

The fuel tank pressure sensor is located on top of fuel pump module cover.
- Remove fuel tank from vehicle. Refer to FUEL TANK .
- Disengage electrical connector from fuel tank pressure sensor.
- Remove retaining nut and washer.
- Disengage sensor from fuel pump module cover.
