Section 118 (Engine Cooling System): General Description: Radiator
WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

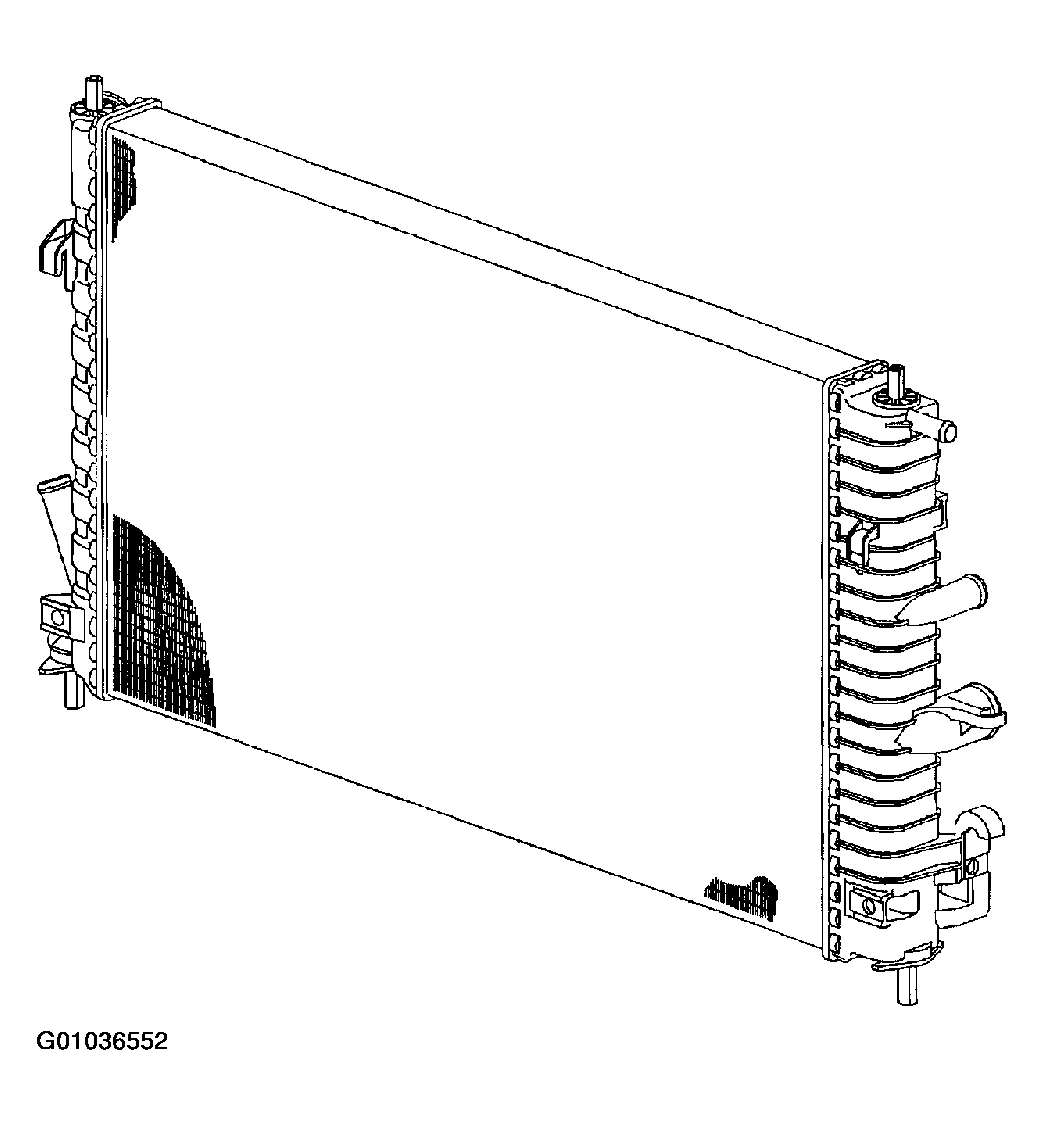

A cross-flow radiator is used on all models. Tanks on this type radiator are located to the right and left of the core. All service radiators have oil coolers with inlet/outlet fittings for transaxle fluid cooling.
