Cooling Fan Control Module: Removal
WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative battery cable.

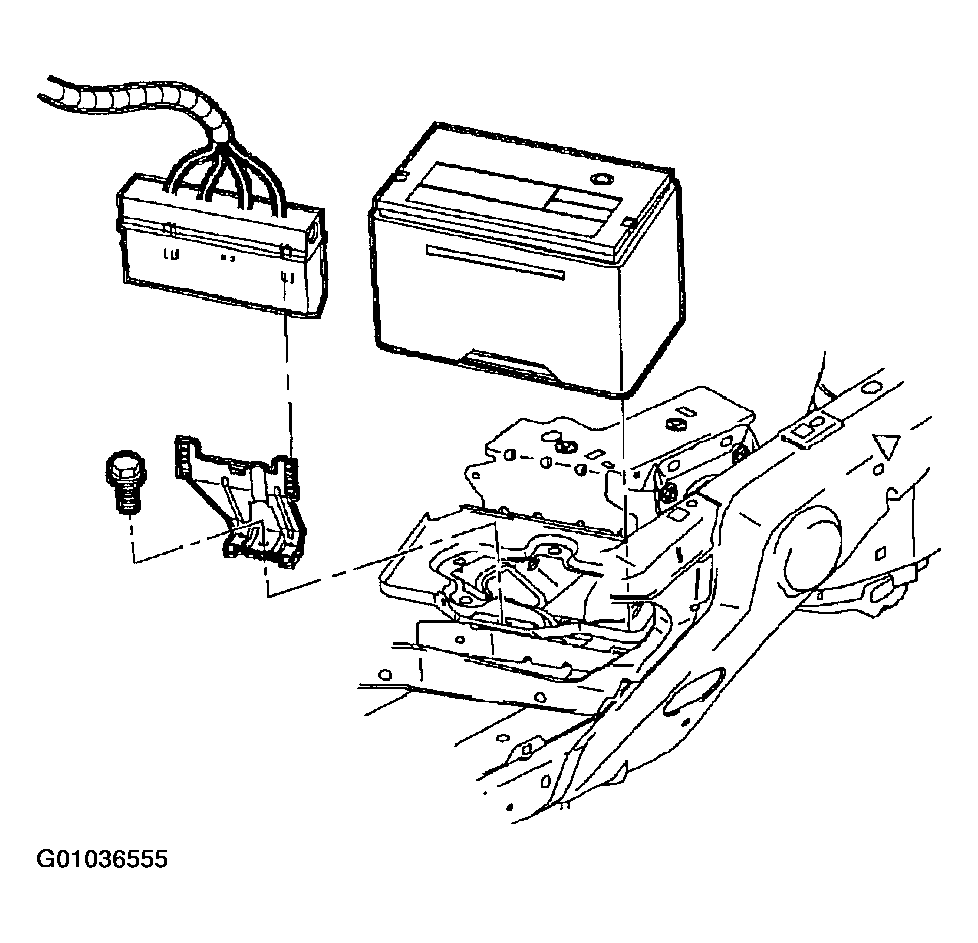

- Use screwdriver to release retaining tab on cooling fan control module and remove module by sliding up and off bracket.
Courtesy of GENERAL MOTORS CORP.
- Disconnect cooling fan control module electrical connectors.
