Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fog lamp to the fog lamp bezel.
  2. Install the fog lamp to the fog lamp bezel by pressing into place until fully seated.
  3. Connect the electrical connector to the fog lamp.

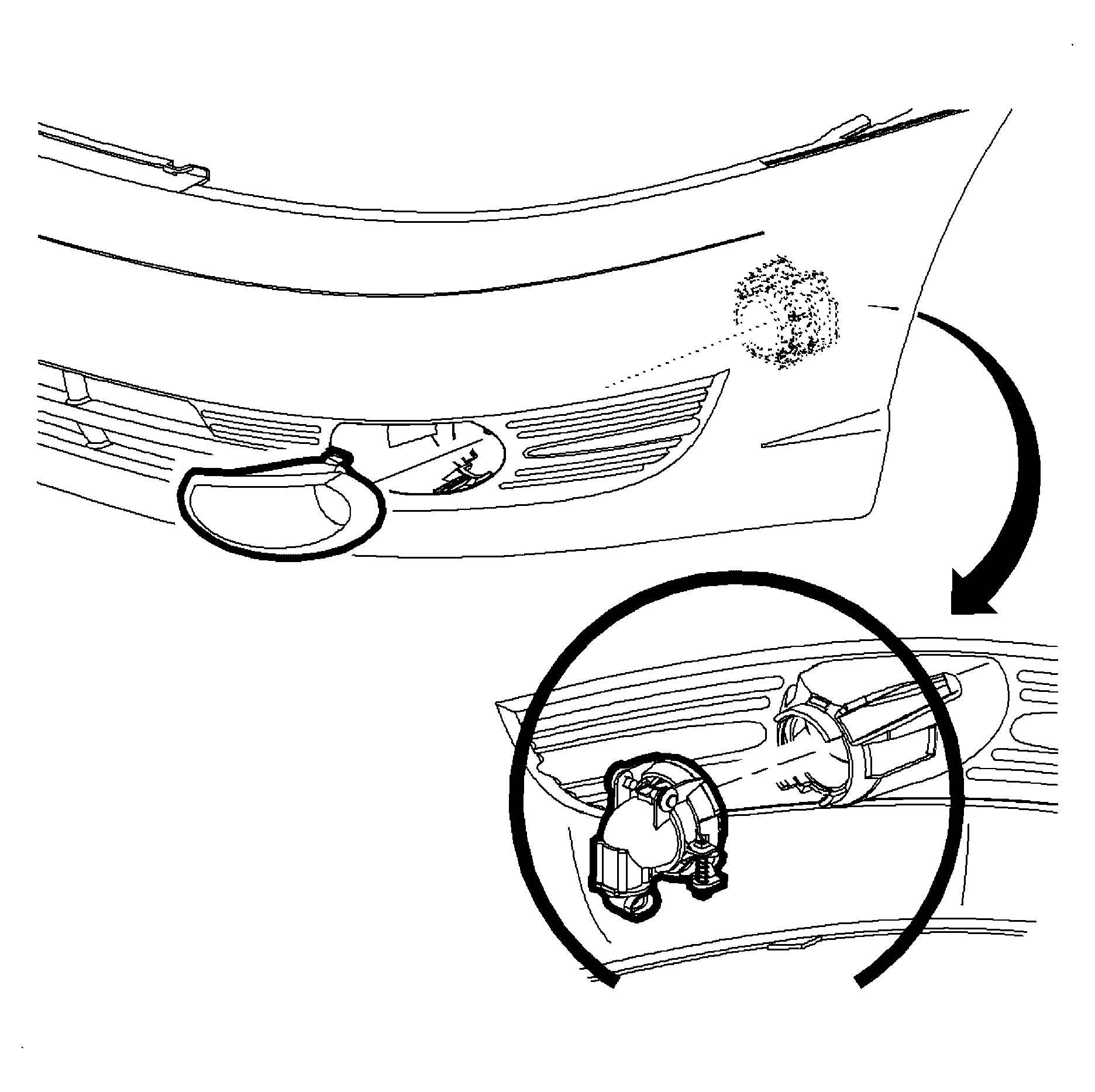

    Fig 1: Removing & Installing Front Fog Lamp
    GM898190Courtesy of GENERAL MOTORS CORP.
