Cruise Control Connector End View
Cruise Control Connector End View

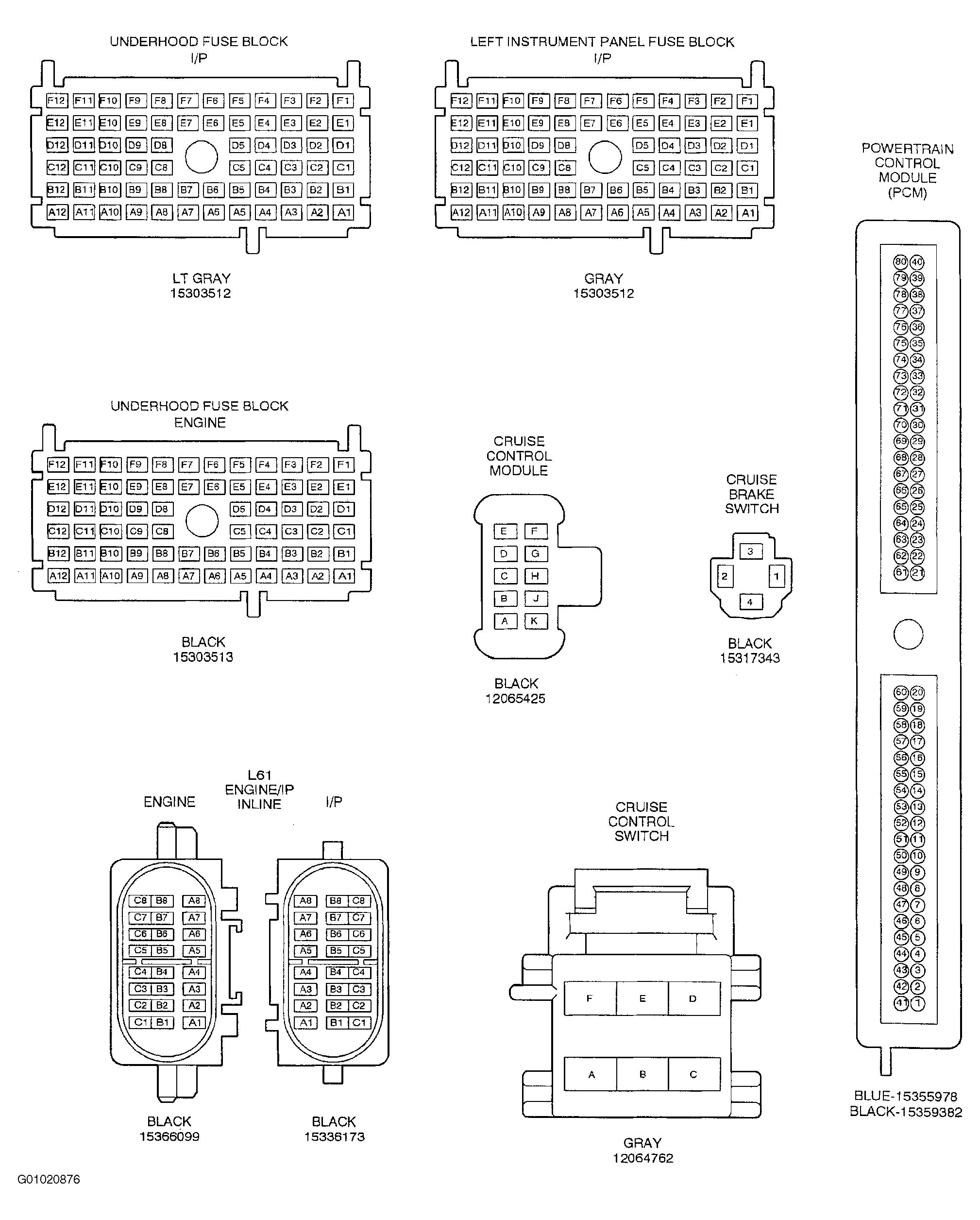

Fig 1: Cruise Control
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
