Cruise Control-Related Connector End View
Cruise Control-Related Connector End View

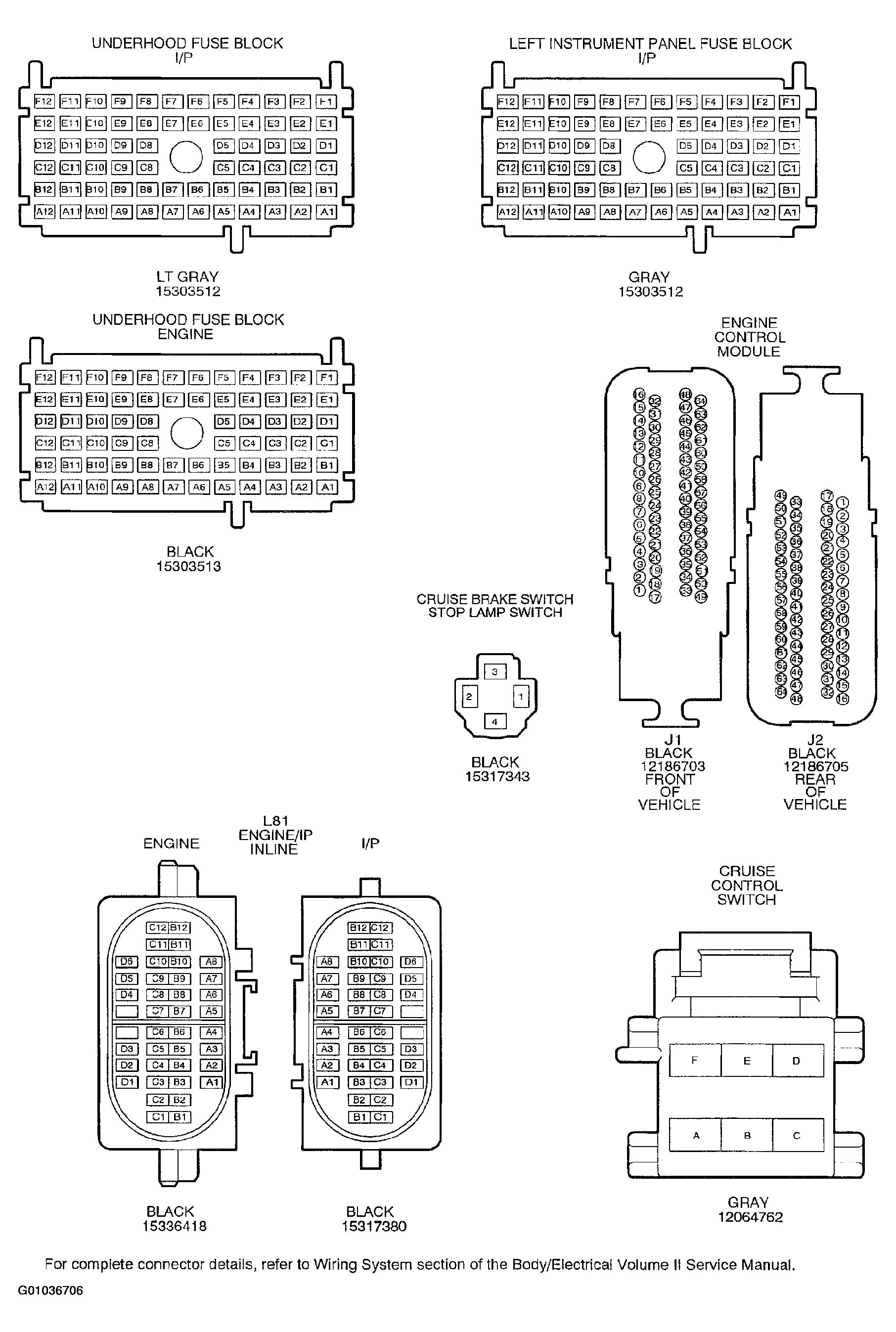

Fig 1: Cruise Control-Related
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
