Passlock Connector End View
Passlock Connector End View

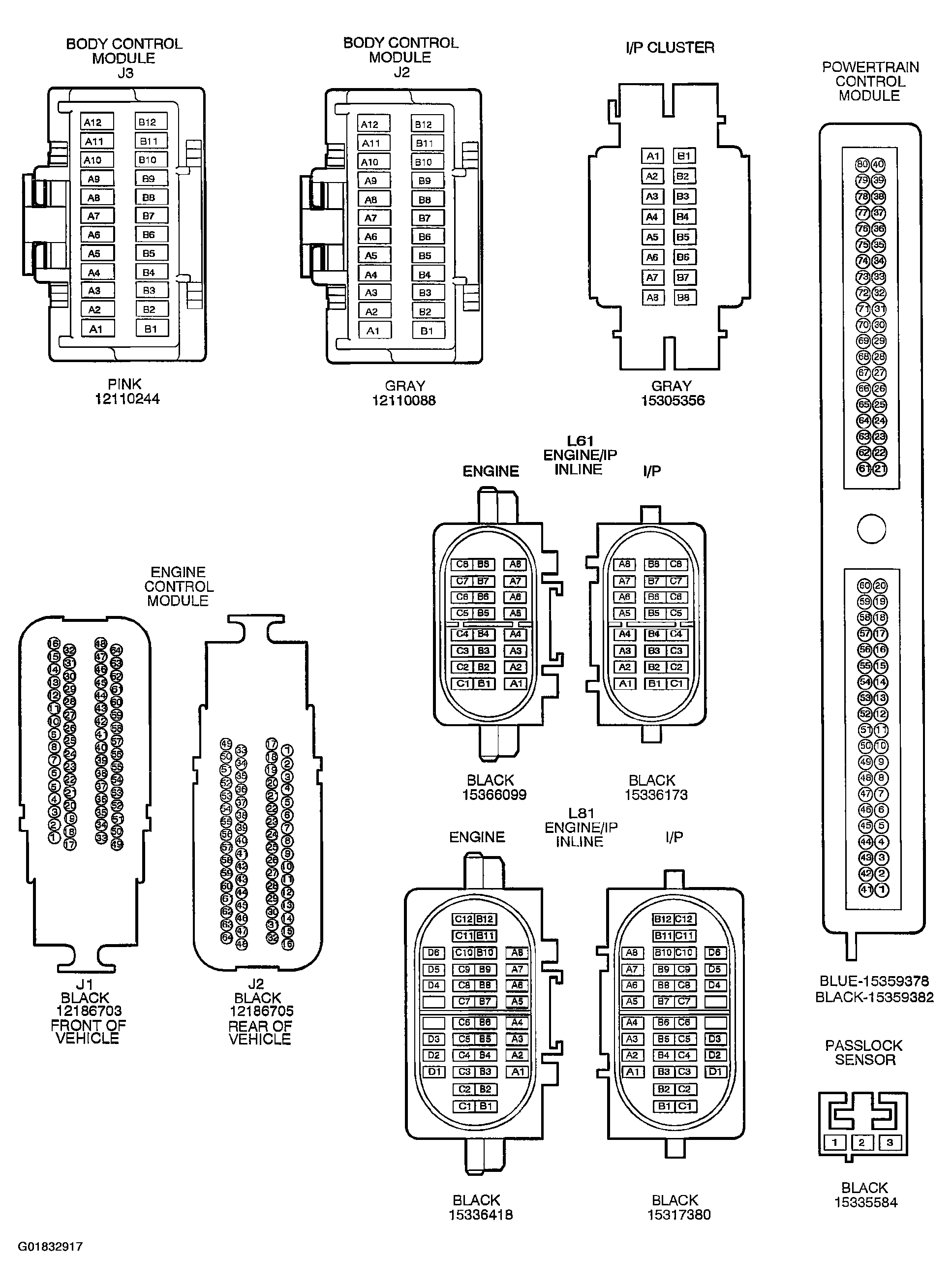

Fig 1: Passlock
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
