Transaxle 20-Pin Connector End View
Transaxle 20-Pin Connector End View

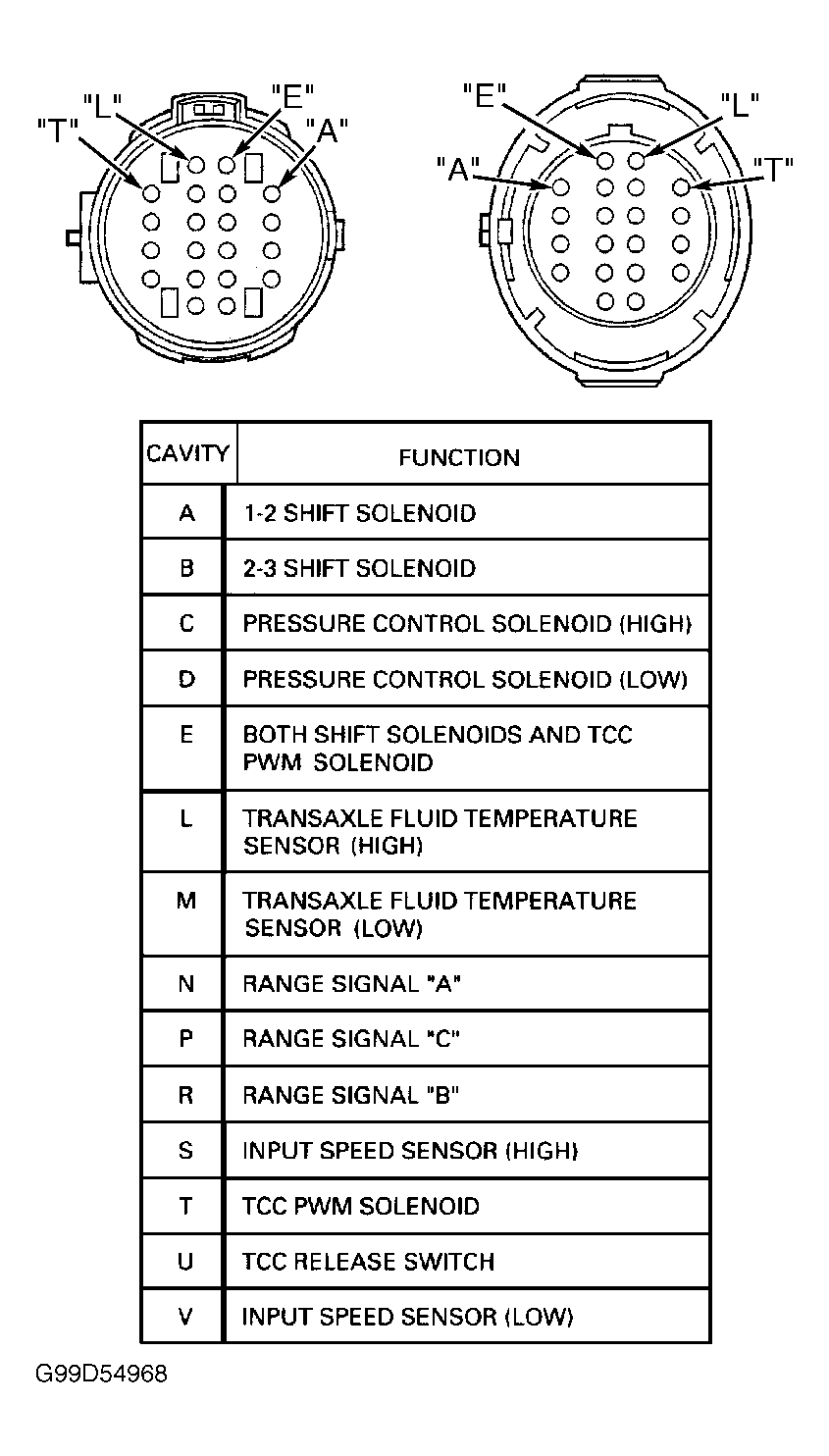

Fig 1: Transaxle 20-Pin
Courtesy of GENERAL MOTORS CORP.
Fig 1: Transaxle 20-Pin
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.Courtesy of GENERAL MOTORS CORP.
