Power Steering Diagnosis

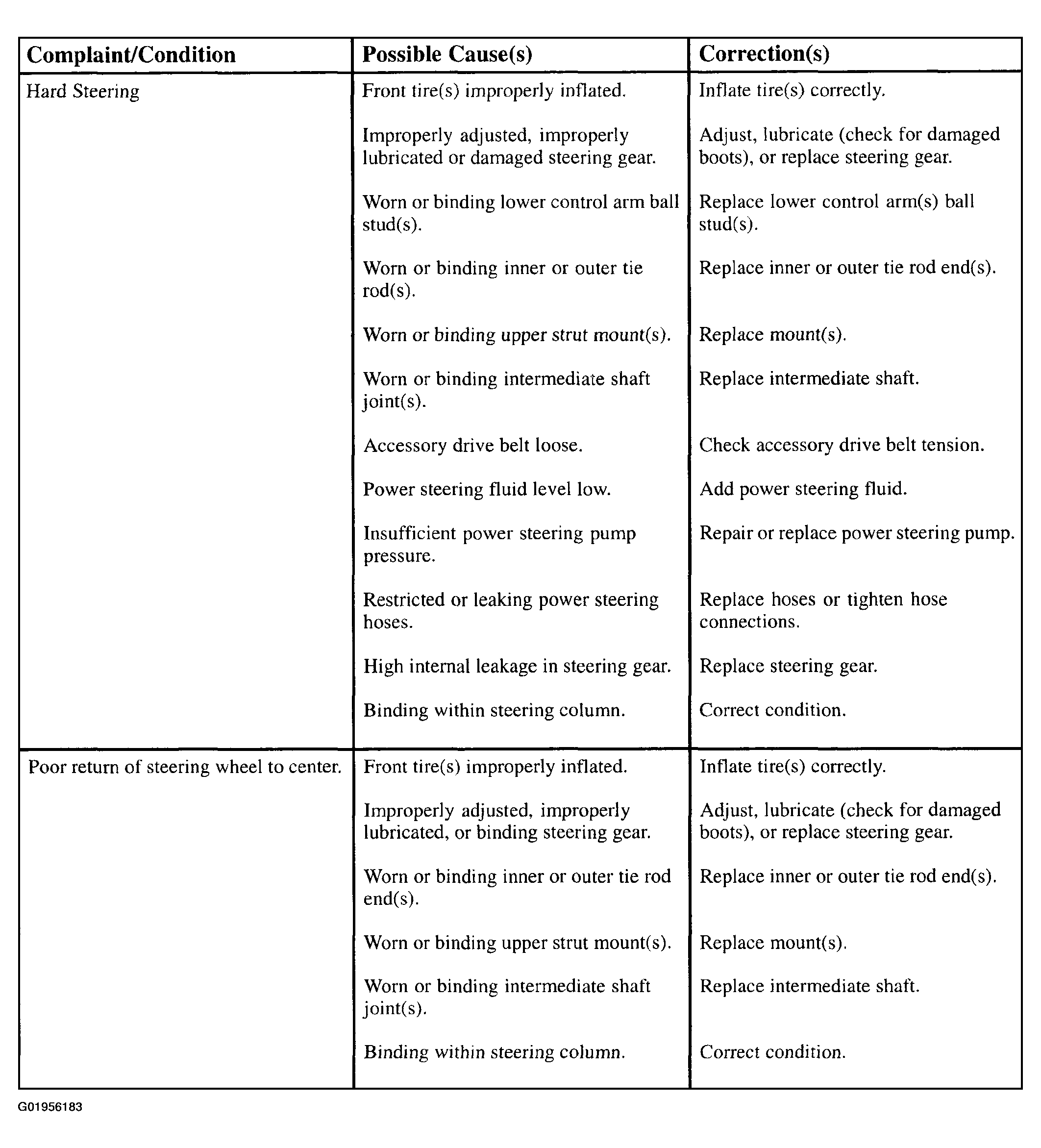

Fig 1: Power Steering Diagnosis (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

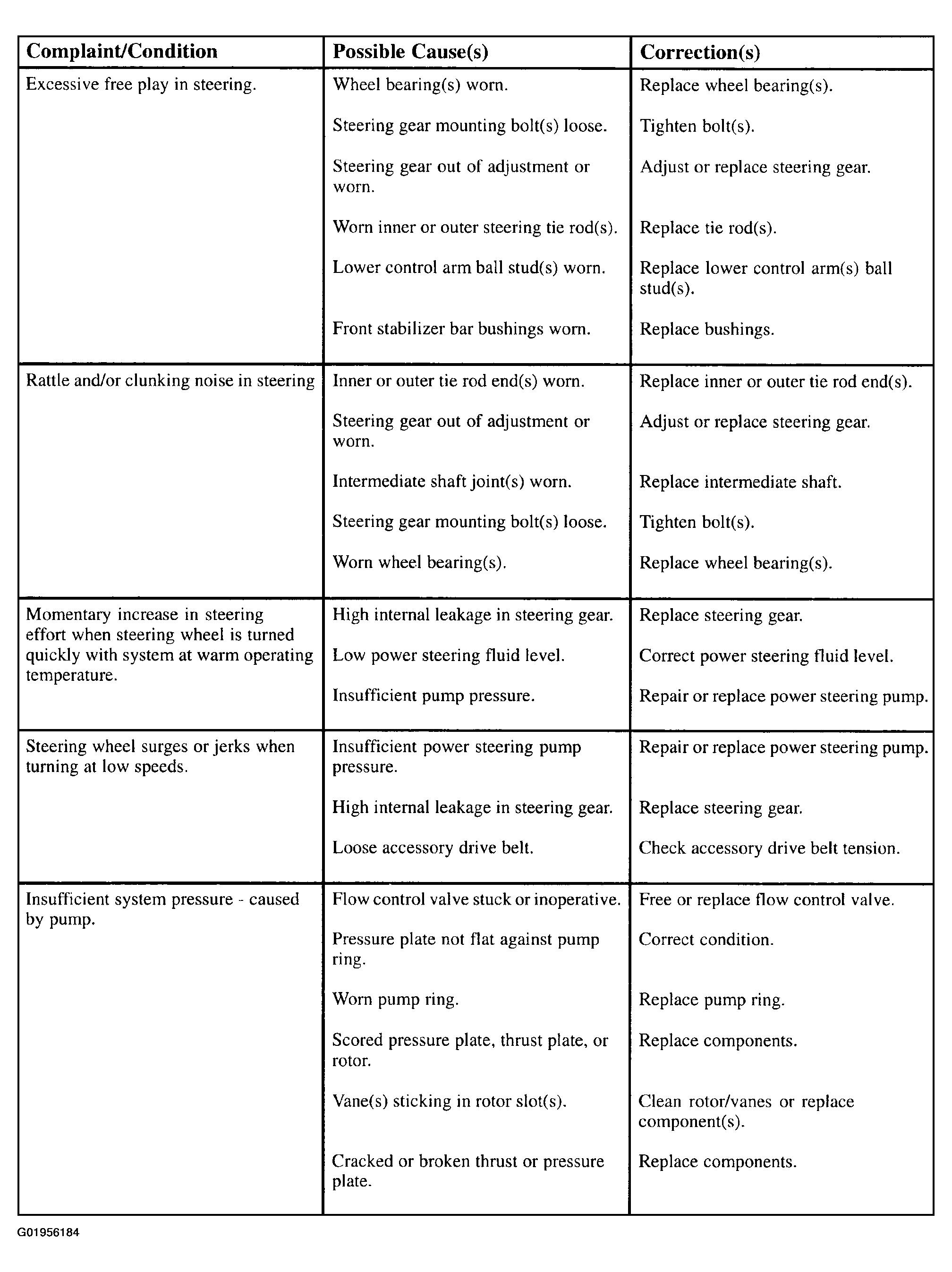

Fig 2: Power Steering Diagnosis (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

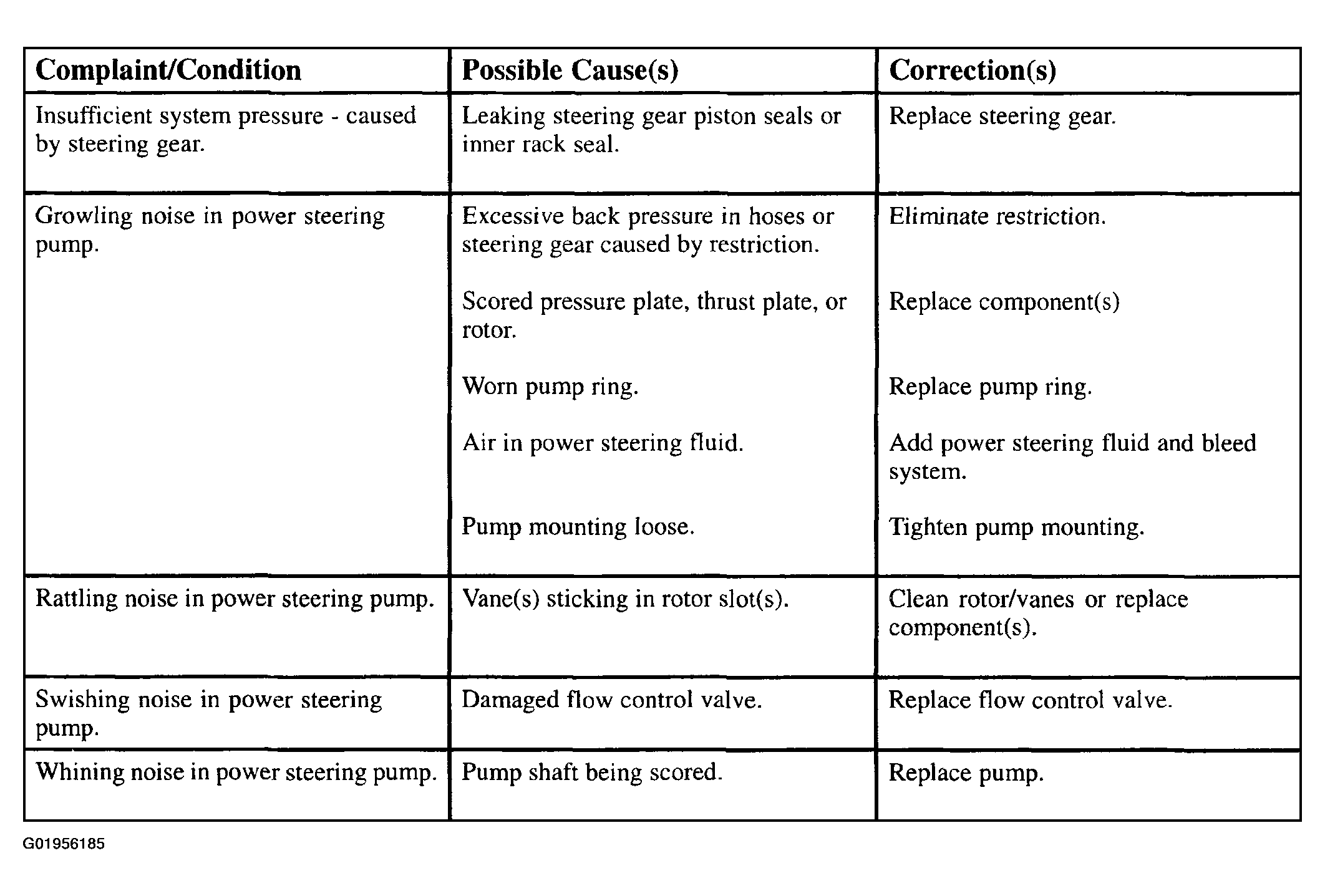

Fig 3: Power Steering Diagnosis (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
