Frame Assembly: Assembly

Install outer four damping bushings using tool KM-671 along with KM-907-13 and KM-907-14.

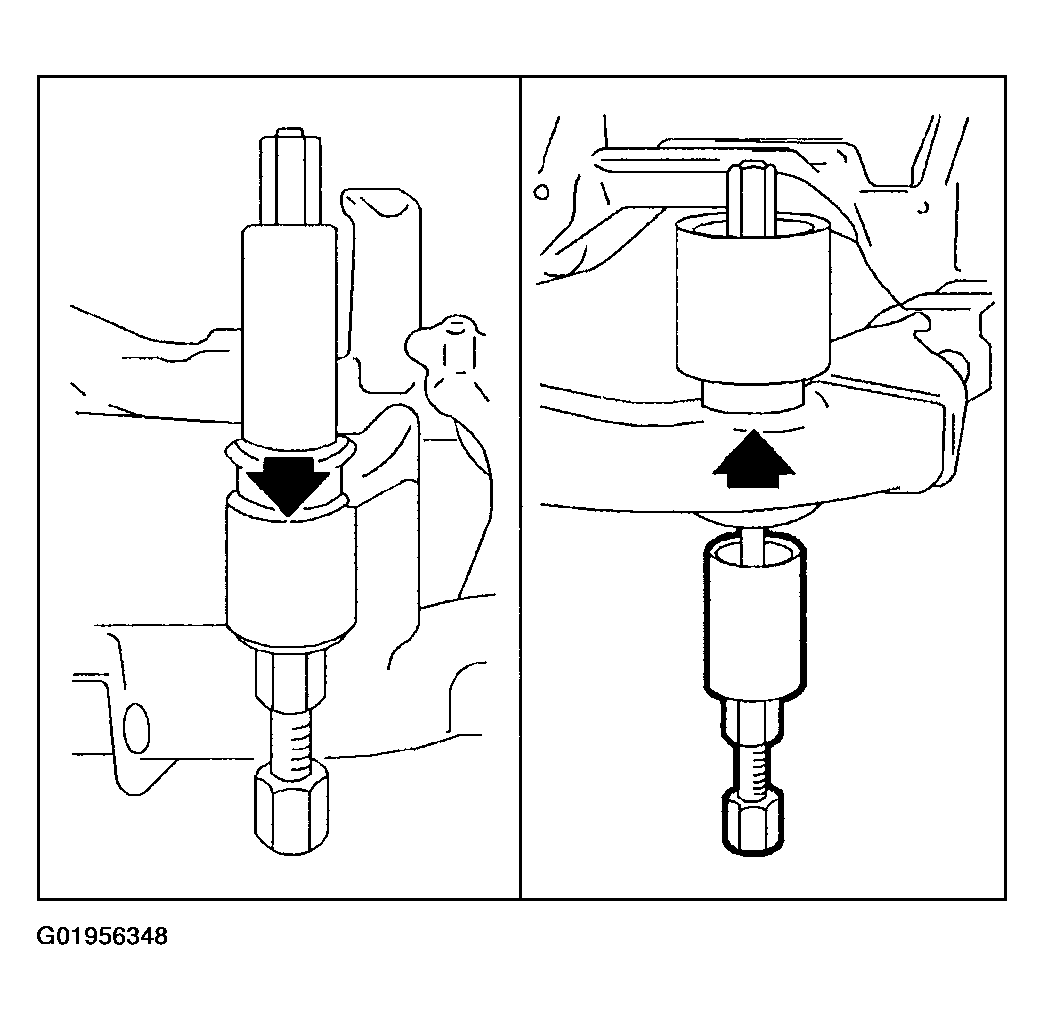

Fig 1: Installing Outer Four Damping Bushings

Courtesy of GENERAL MOTORS CORP.

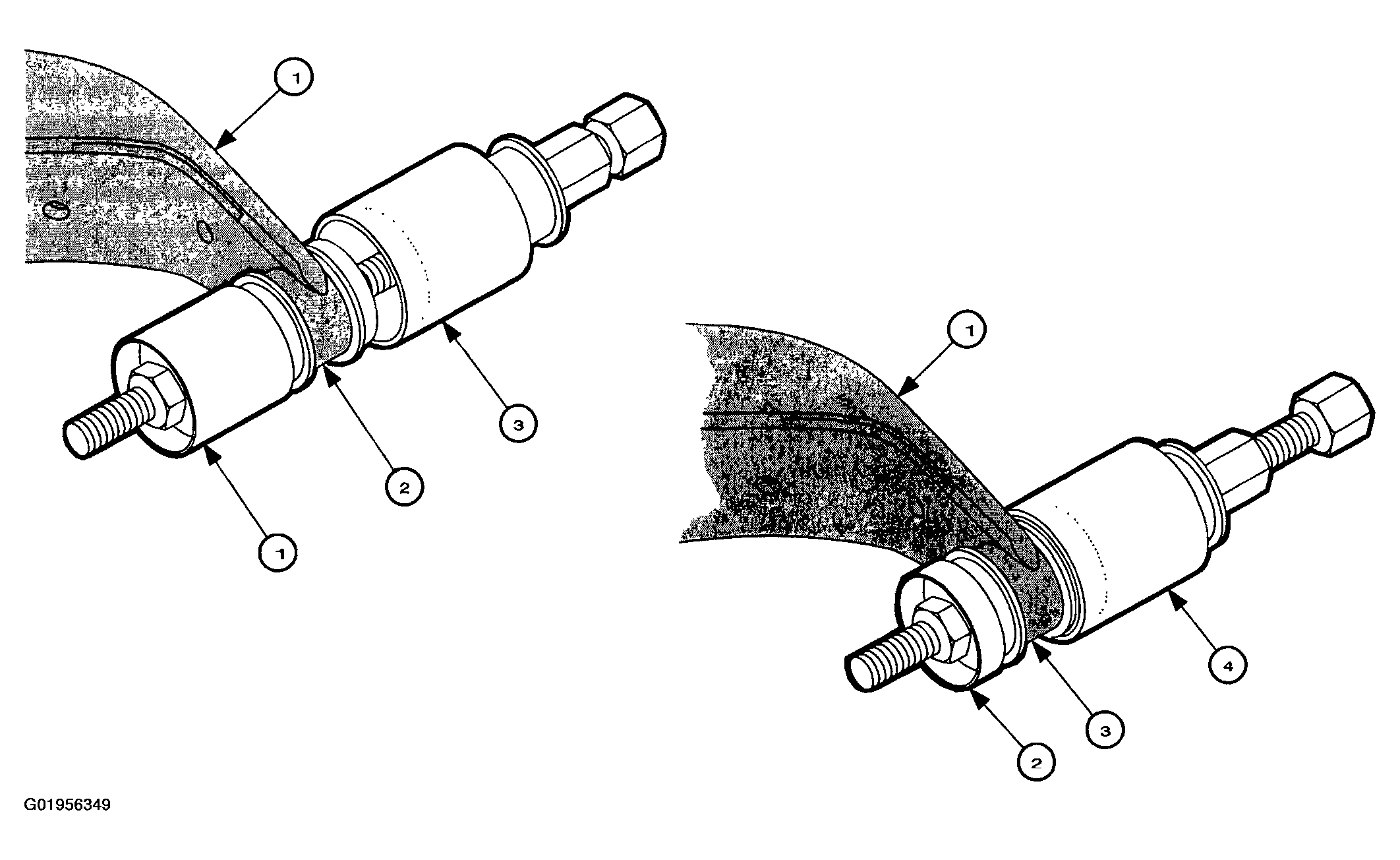

Fig 2: Installing Center Two Damping Bushings

Courtesy of GENERAL MOTORS CORP.

Install the stabilizer bar to the frame assembly. Tighten stabilizer bar clamp-to-frame bolts to 20 N.m (15 ft-lbs).

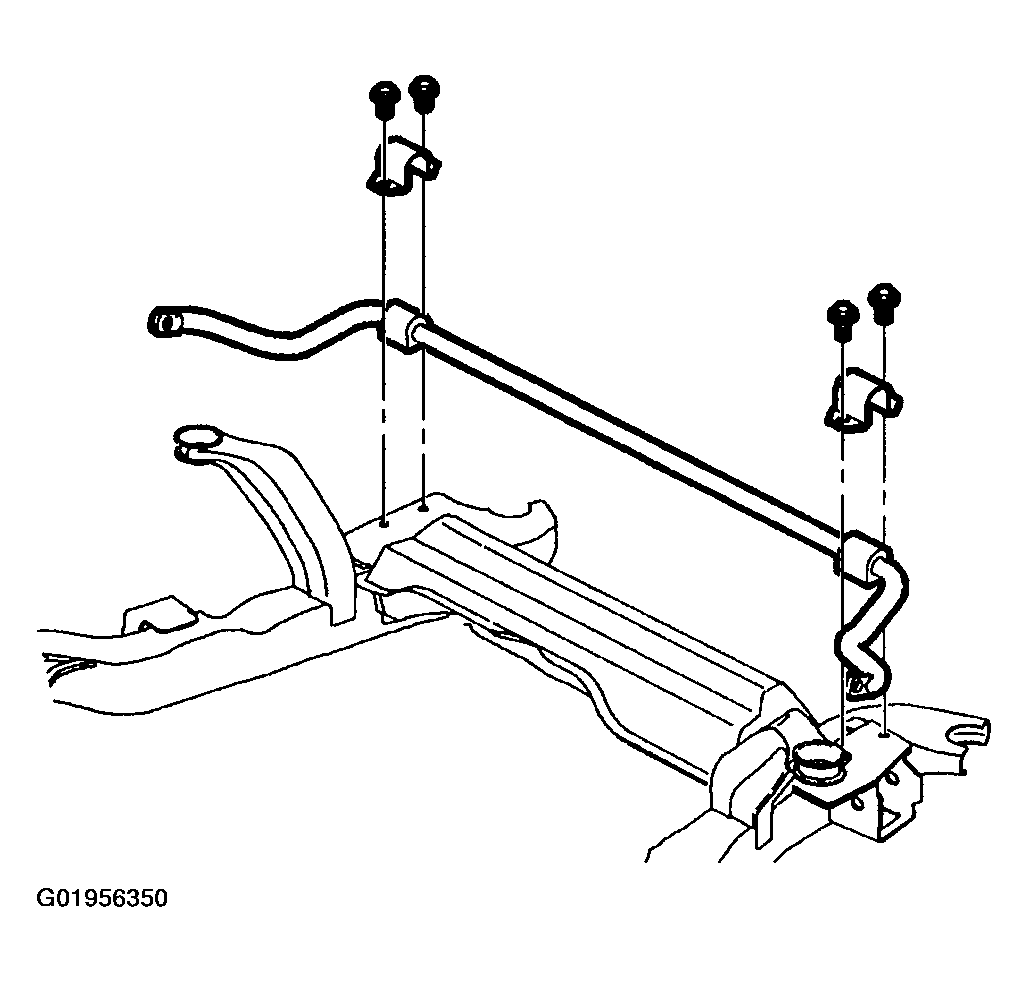

Fig 3: Installing Stabilizer Bar To Frame Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: Use new bolts; torque retention of old bolts may not be sufficient.
Using Torque Angle Gauge SA9140E (or equivalent), install control arms to frame assembly using new bolts. Tighten control arm-to-frame to 90 N.m (66 ft-lbs) + 75° to 90°.

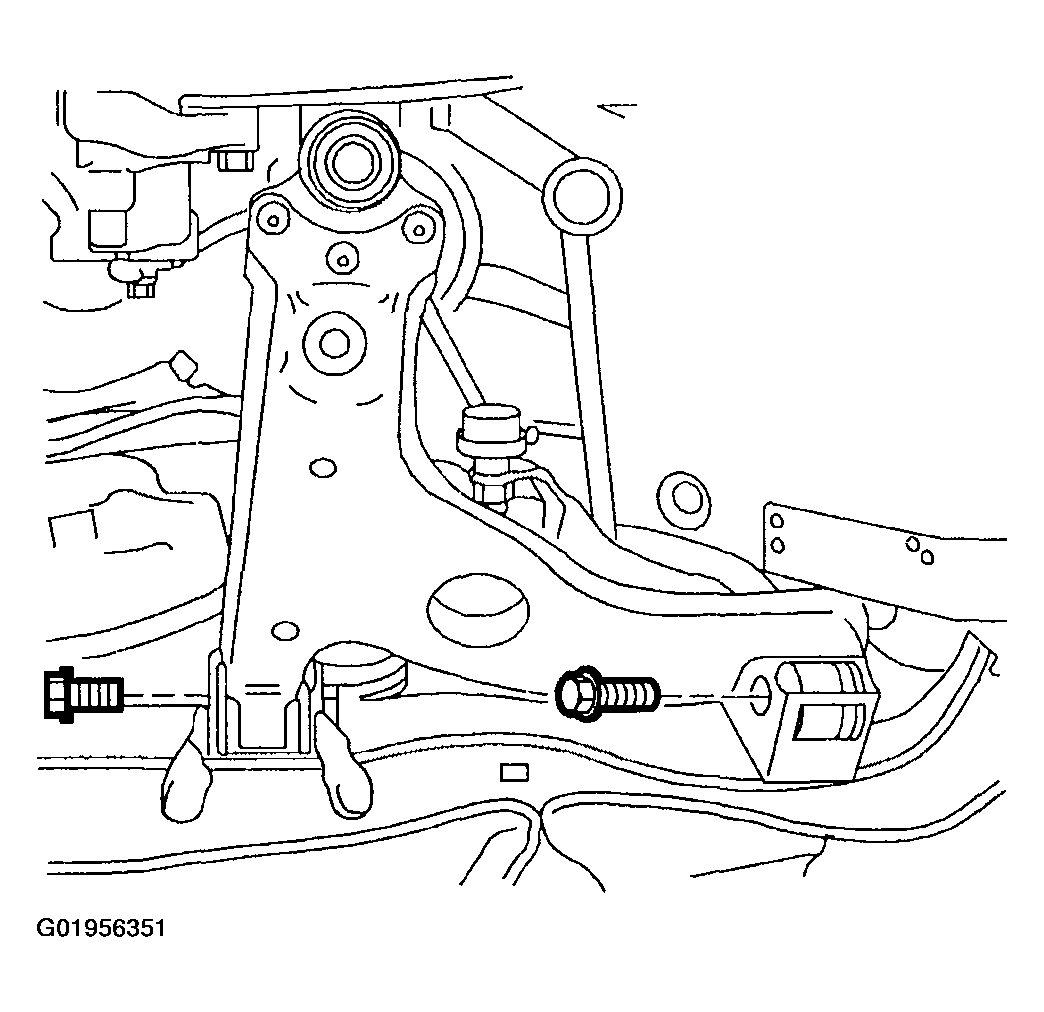

Fig 4: Installing Control Arms To Frame Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

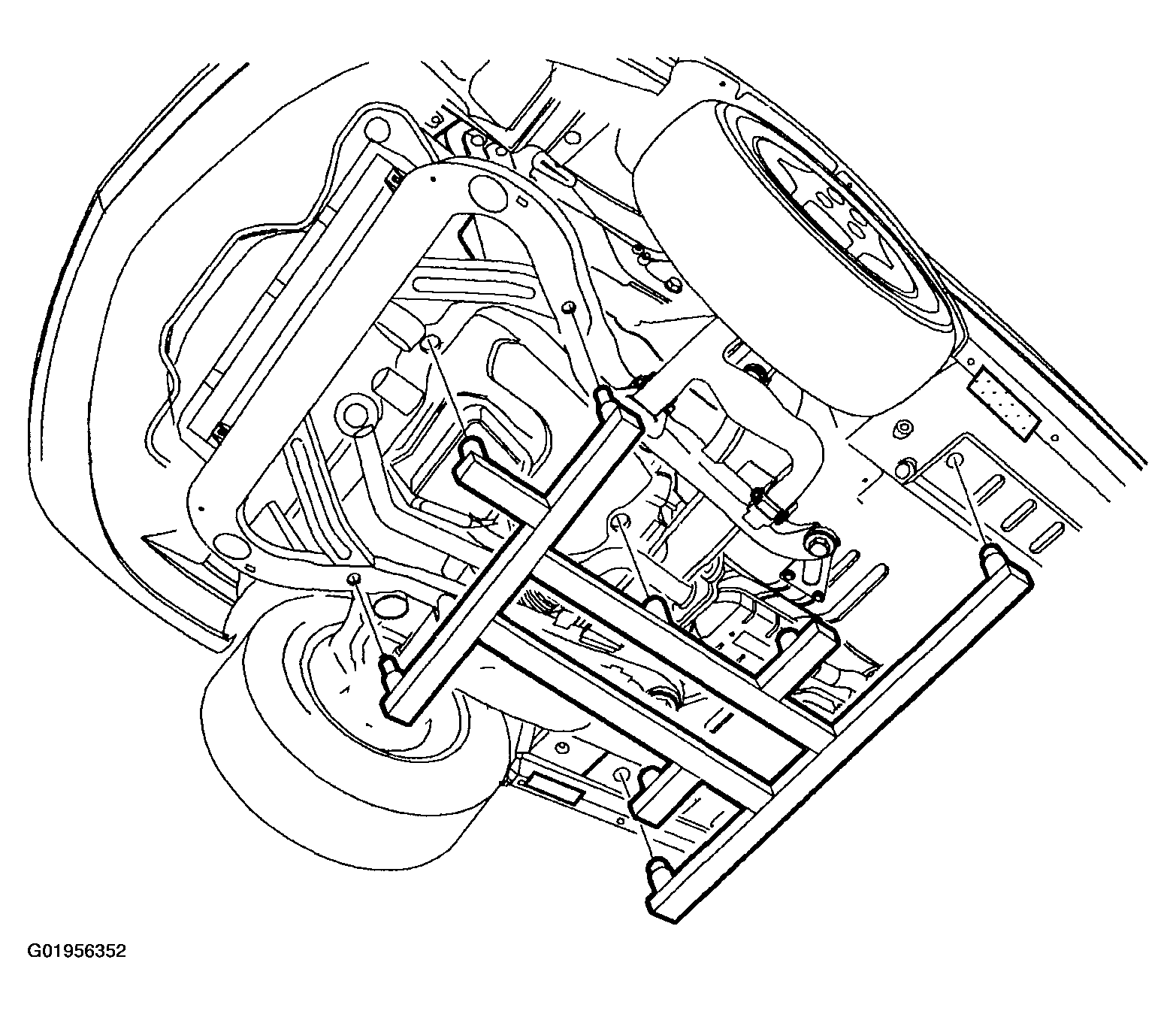

Fig 5: Installing Control Arms To Frame Assembly

Courtesy of GENERAL MOTORS CORP.
