Frame Assembly: Disassembly

  1. Remove stabilizer clamp-to-frame bolts.
  2. Remove stabilizer bar and clamps.

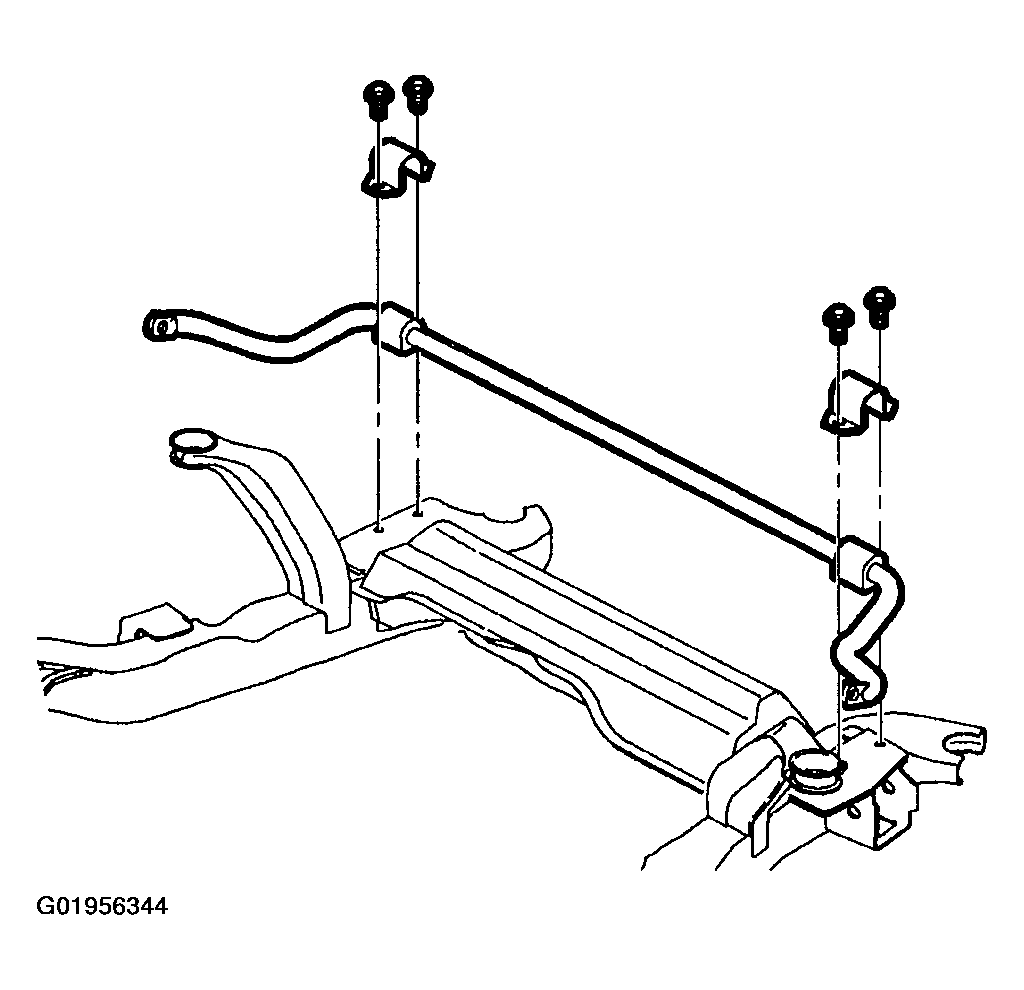

    3. Fig 1: Removing Stabilizer Bar & Clamps
    G01956344Courtesy of GENERAL MOTORS CORP.
  3. Remove control arm-to-frame assembly bolts and discard bolts.
  4. Remove control arm from frame.

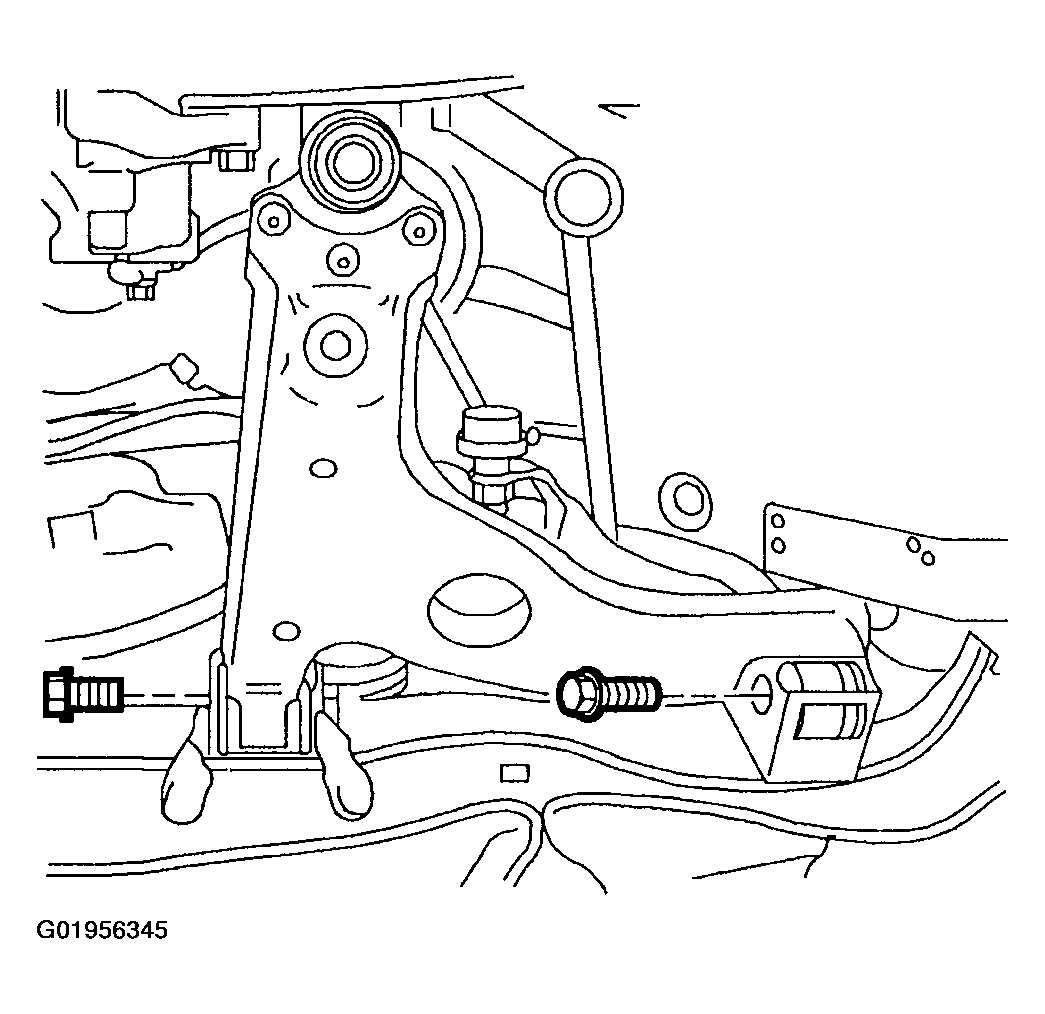

    5. Fig 2: Removing Control Arm From Frame
    G01956345Courtesy of GENERAL MOTORS CORP.
  5. Using tools Bushing Remover/Installer KM-671, Bushing Remover/Installer KM-907 KM-907-11, KM-907-12 and KM-907-30, press out the outer four damping bushings.

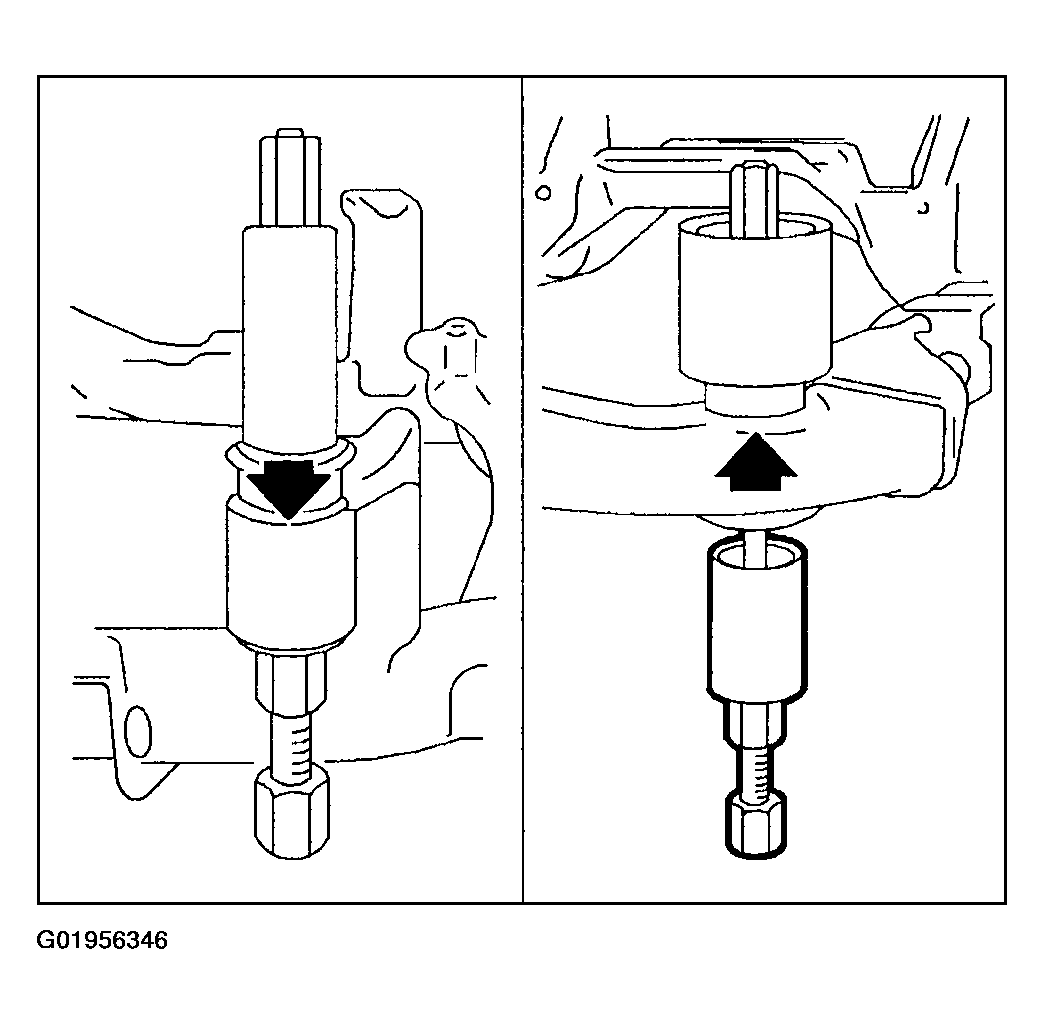

    6. Fig 3: Pressing Out Outer Four Damping Bushings
    G01956346Courtesy of GENERAL MOTORS CORP.
  6. Using Bushing Remover/Installer KM-907, KM-907-11, and KM-907-12, press out the center two damping bushings.

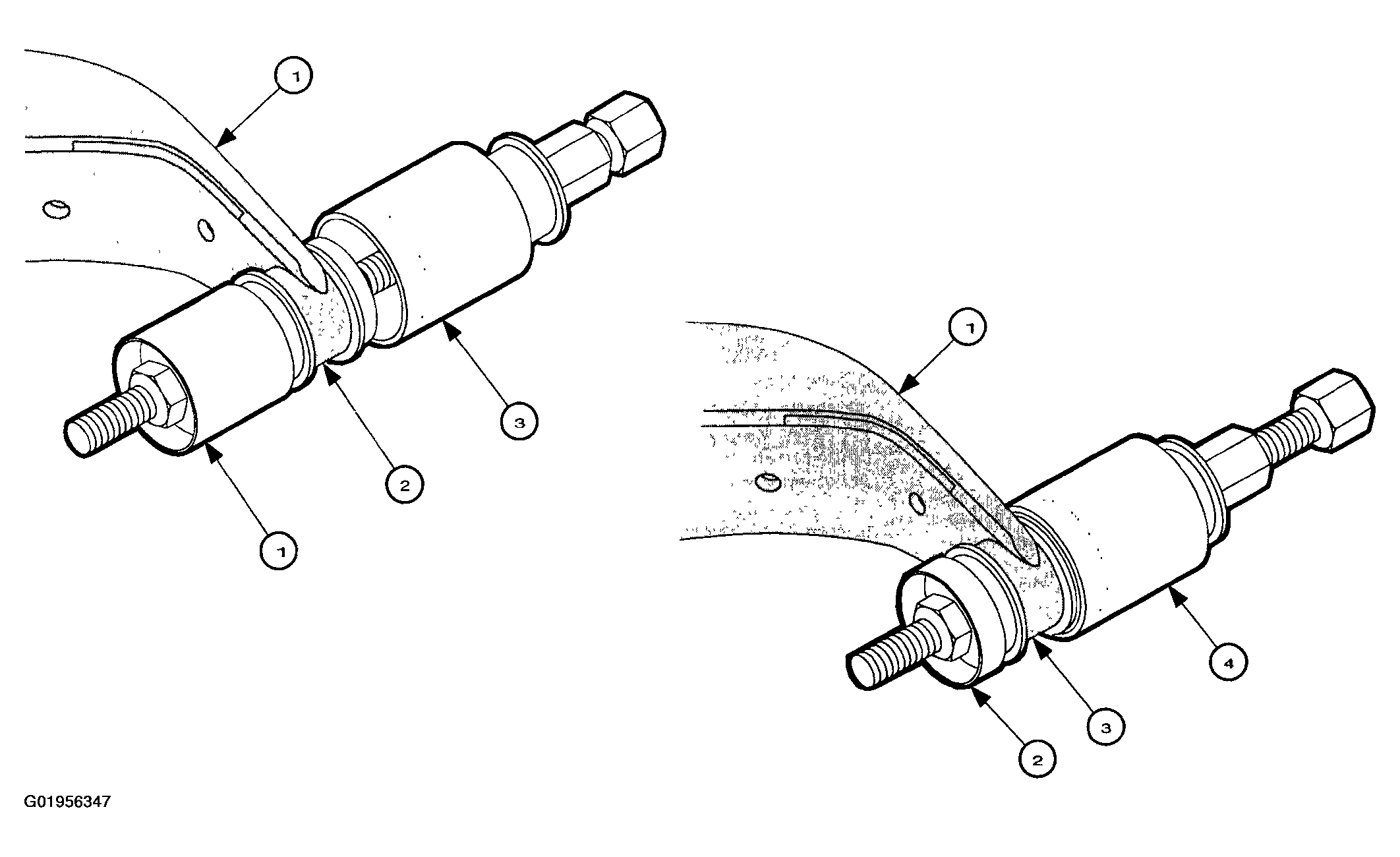

    7. Fig 4: Pressing Out Center Two Damping Bushings
    G01956347Courtesy of GENERAL MOTORS CORP.
