Lower Control Arm: Assembly

Using Bushing press KM-508-1, KM-508-2 and KM-508-3 press in front control arm bushing.

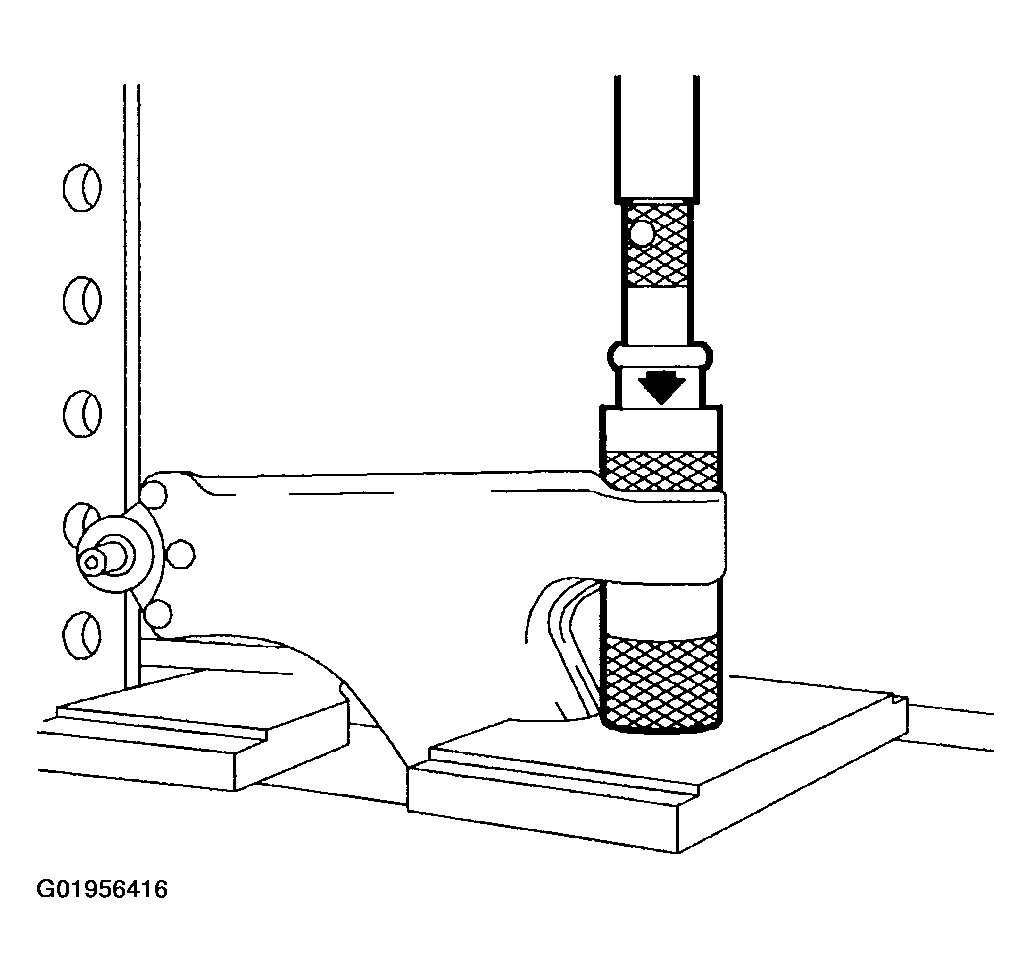

Fig 1: Pressing In Front Control Arm Bushing

Courtesy of GENERAL MOTORS CORP.

Using special tools KM-907-23, KM-907-24 and KM-671 press in rear control arm bushings.

Fig 2: Pressing In Rear Control Arm Bushings

Courtesy of GENERAL MOTORS CORP.
