Data Link Communication Schematics: L61

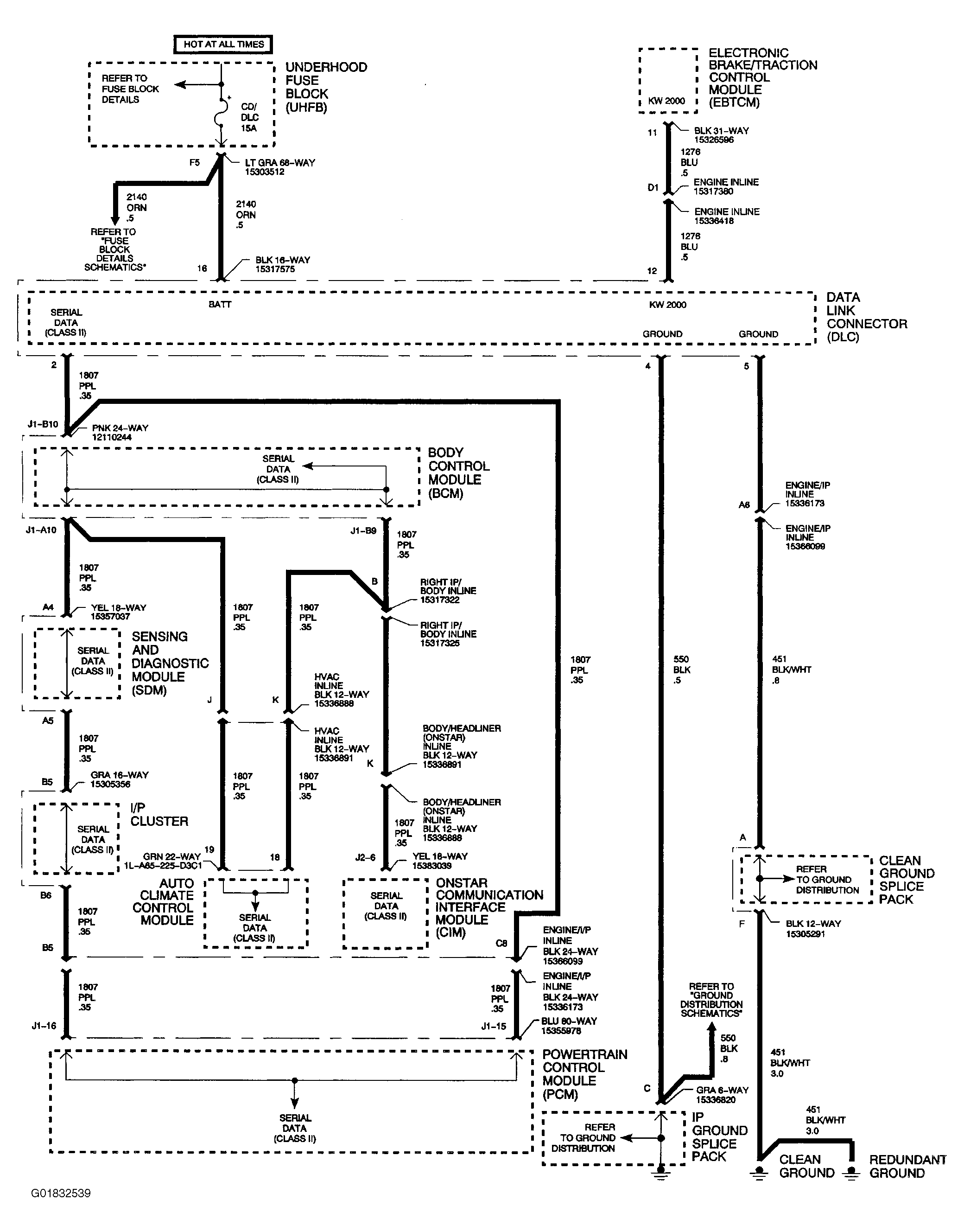

Fig 1: Data Link Communication Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
