DTC B2476: Cellular Phone Select Service Switch Malfunction: Notes

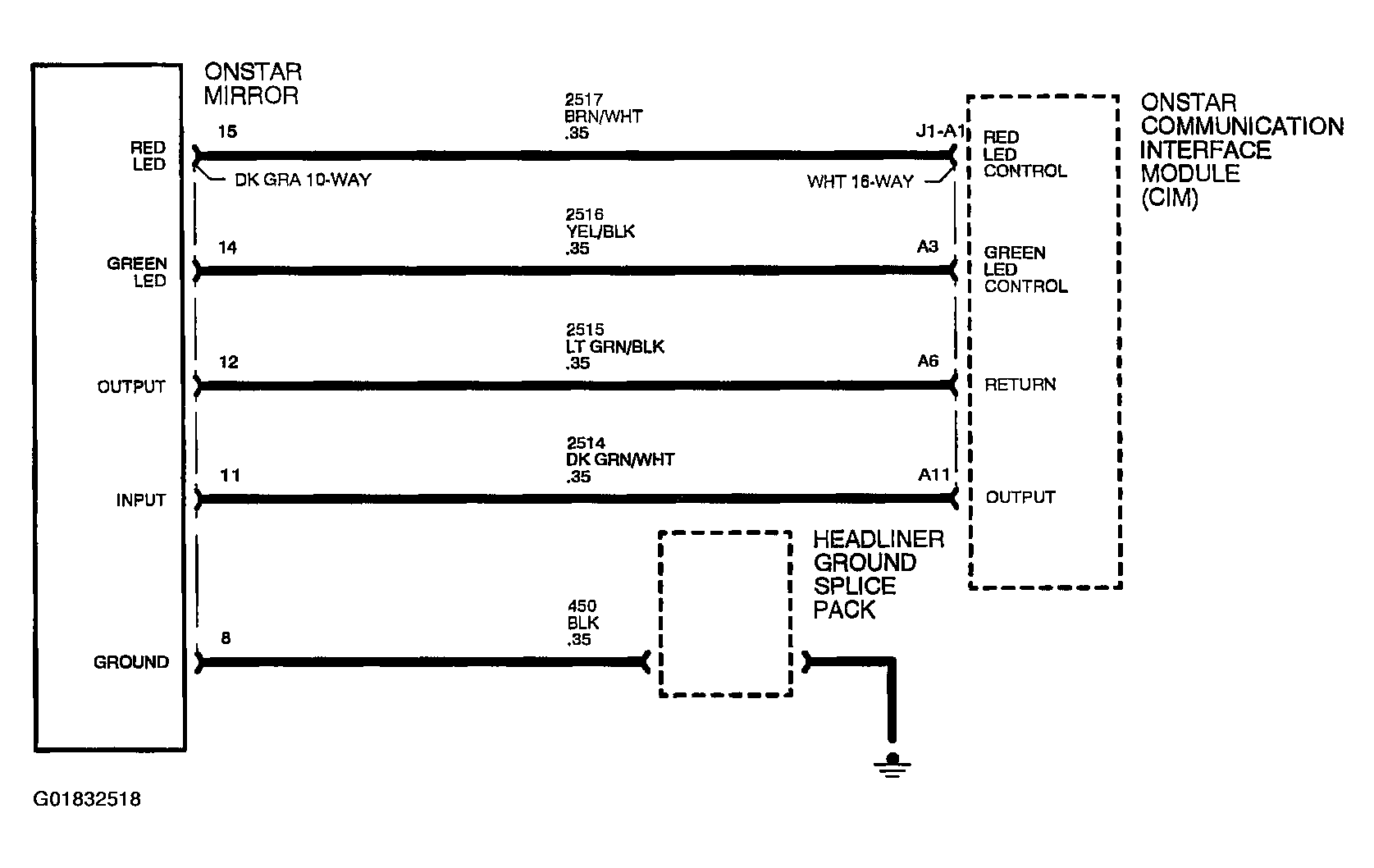

Fig 1: B2476 - Cellular Phone Select Service Switch Malfunction Schematic

Courtesy of GENERAL MOTORS CORP.

The OnStar Communication Interface Module (CIM) monitors the Remote Control 3- button assembly circuit 2514 and 2515 for an open condition.
