Intake Plenum (Unit Repair): Removal

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Remove runner clamps at rear of plenum.
Remove runners.

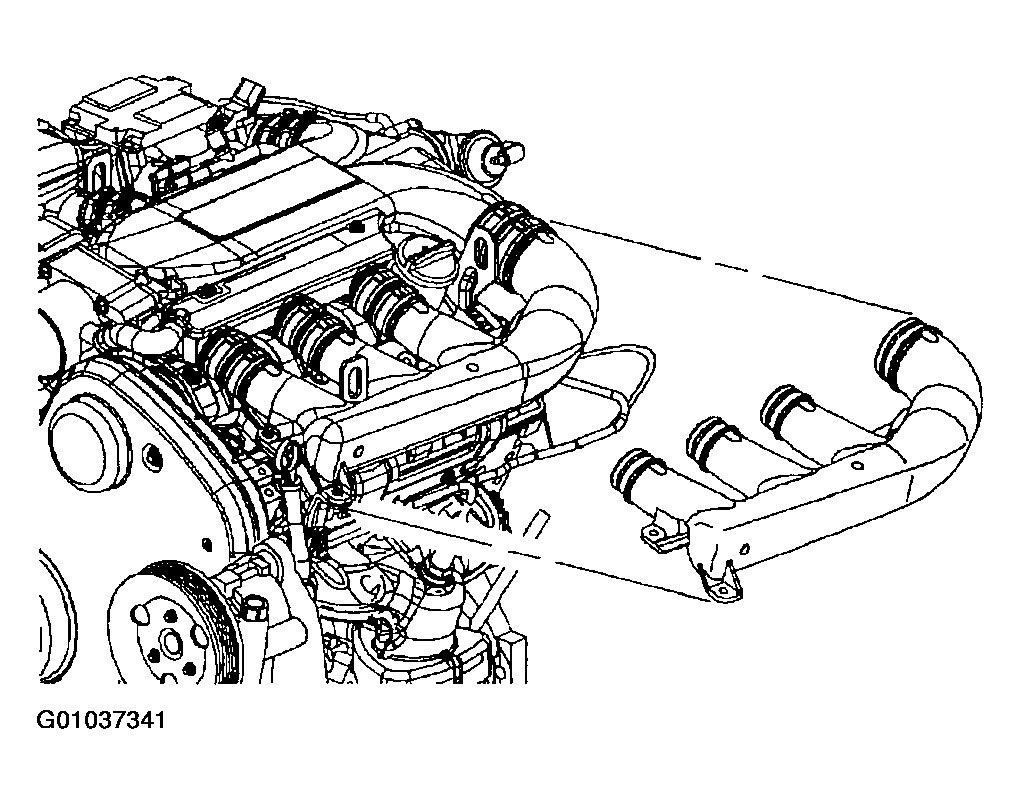

Fig 1: Removing Intake Runner
Courtesy of GENERAL MOTORS CORP.
Remove intake plenum bolts.
Remove intake plenum.
Remove intake seals.

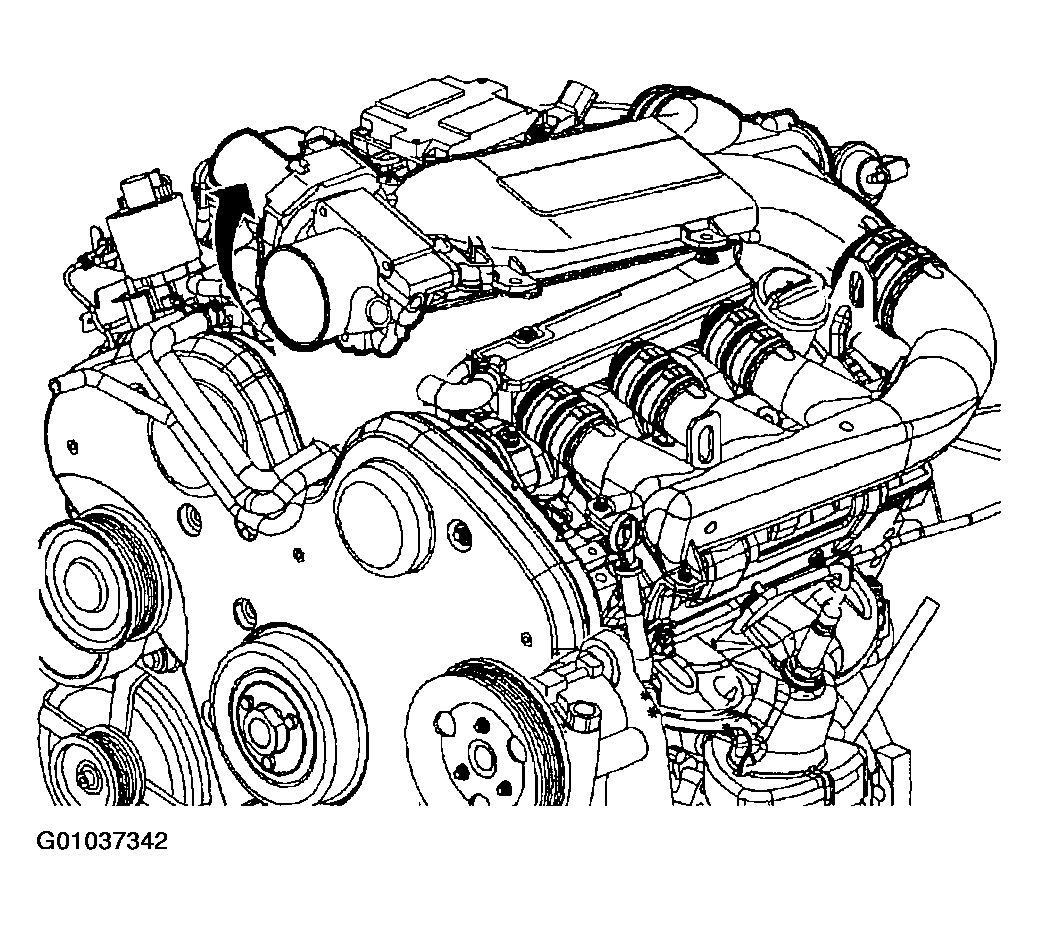

Fig 2: Removing Intake Plenum
Courtesy of GENERAL MOTORS CORP.
