Child Comfort Guide: Removal

  1. Remove rear seat bolster.

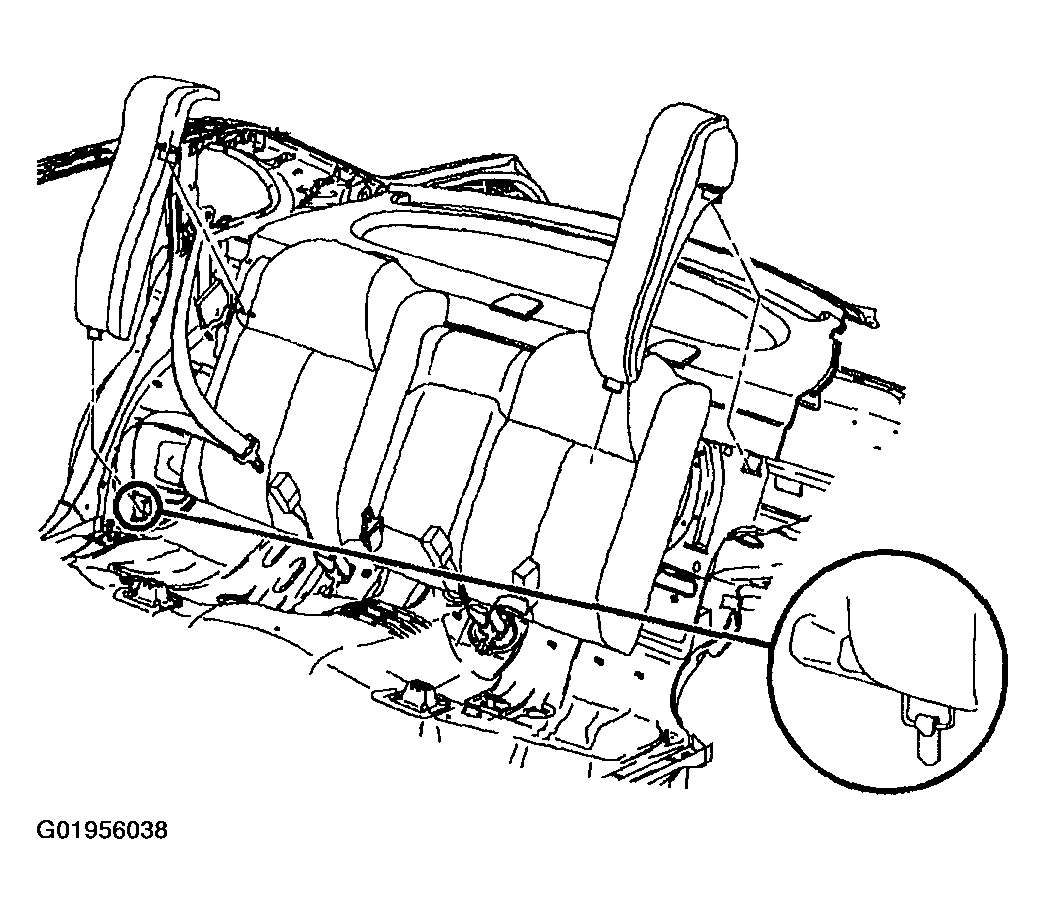

    Fig 1: Removing Rear Seat Bolster
    G01956038Courtesy of GENERAL MOTORS CORP.
    1. Reach down into corner of rear seat cushion to expose bolster retaining tab.
    2. Bend bolster retaining tab upward.
    3. Lower rear seat back.
    4. Starting at bottom, pull forward to disengage bolster from retaining tab then pull upward to disengage upper attachment.
  2. Remove shoulder belt from comfort guide.
  3. Remove comfort guide retainer and remove comfort guide.

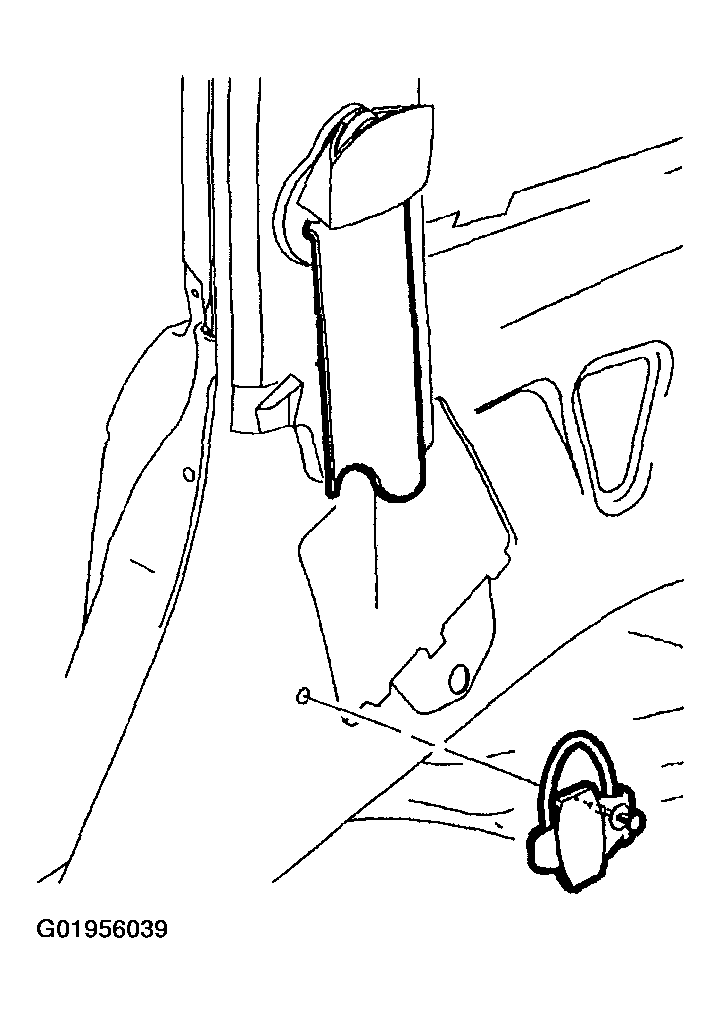

    4. Fig 2: Removing Comfort Guide
    G01956039Courtesy of GENERAL MOTORS CORP.
