Input And Output Shaft Components

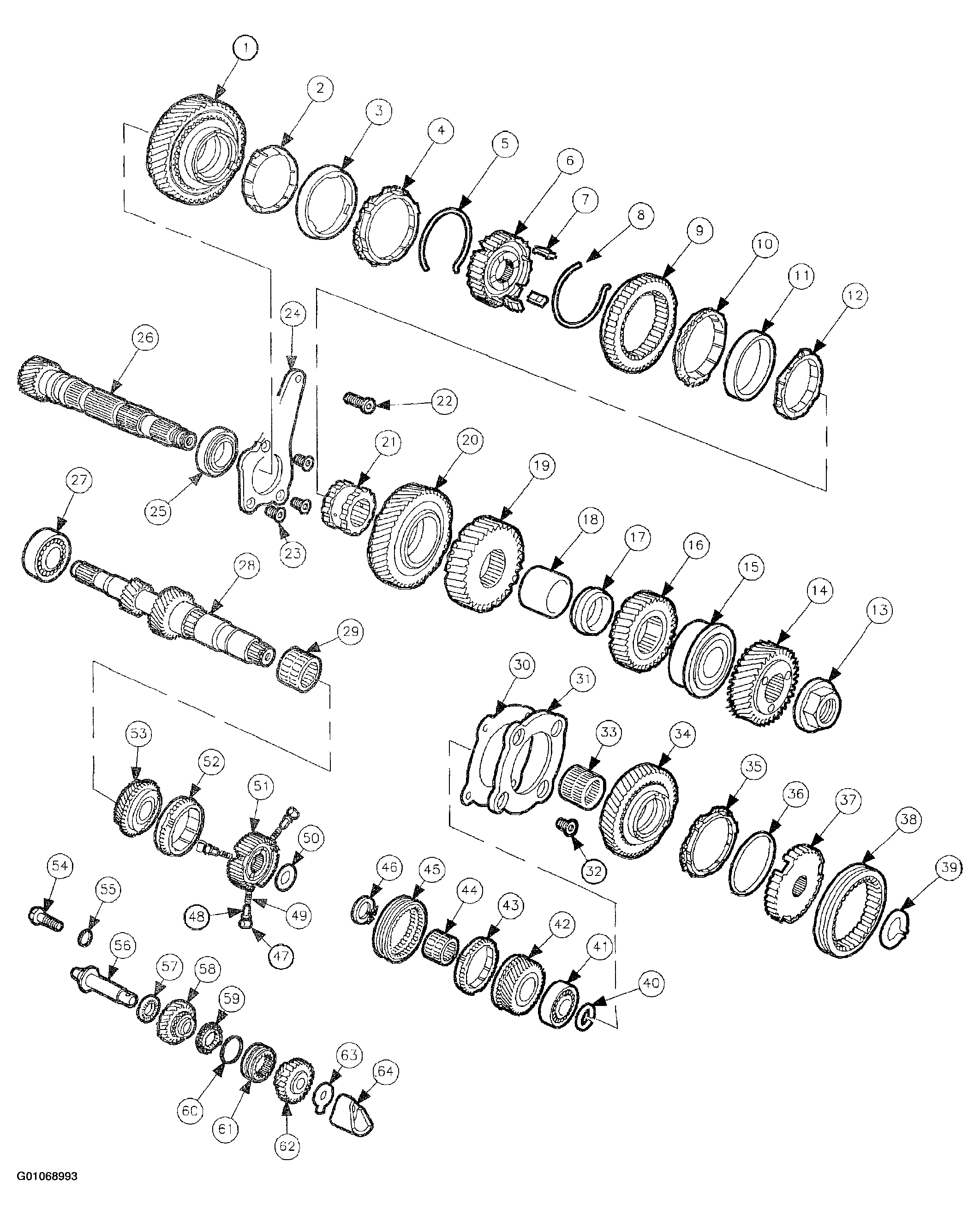

Fig 1: Exploded View Of Input And Output Shaft Components

Courtesy of GENERAL MOTORS CORP.

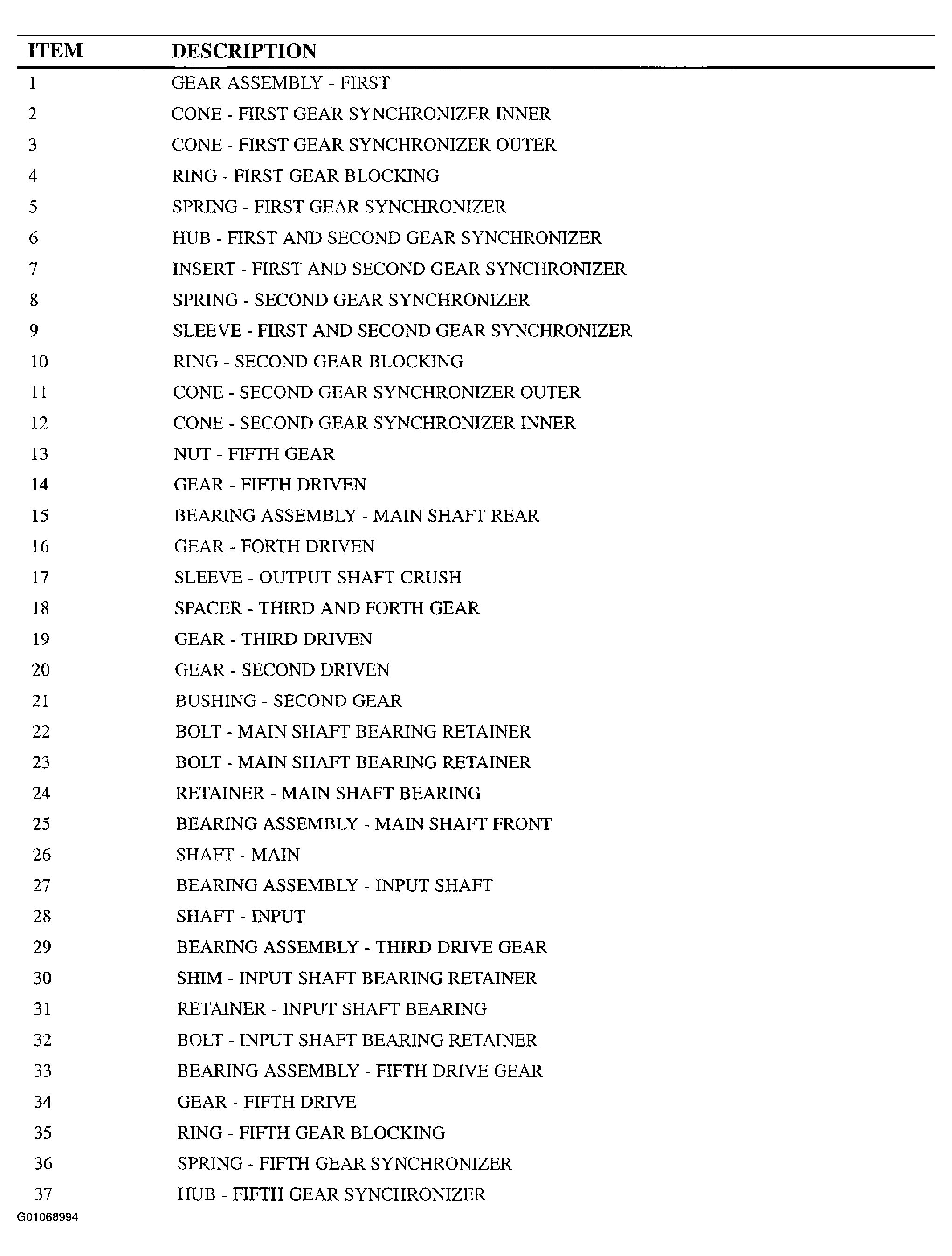

Fig 2: Input And Output Shaft Descriptions (1 of 2)

Courtesy of GENERAL MOTORS CORP.

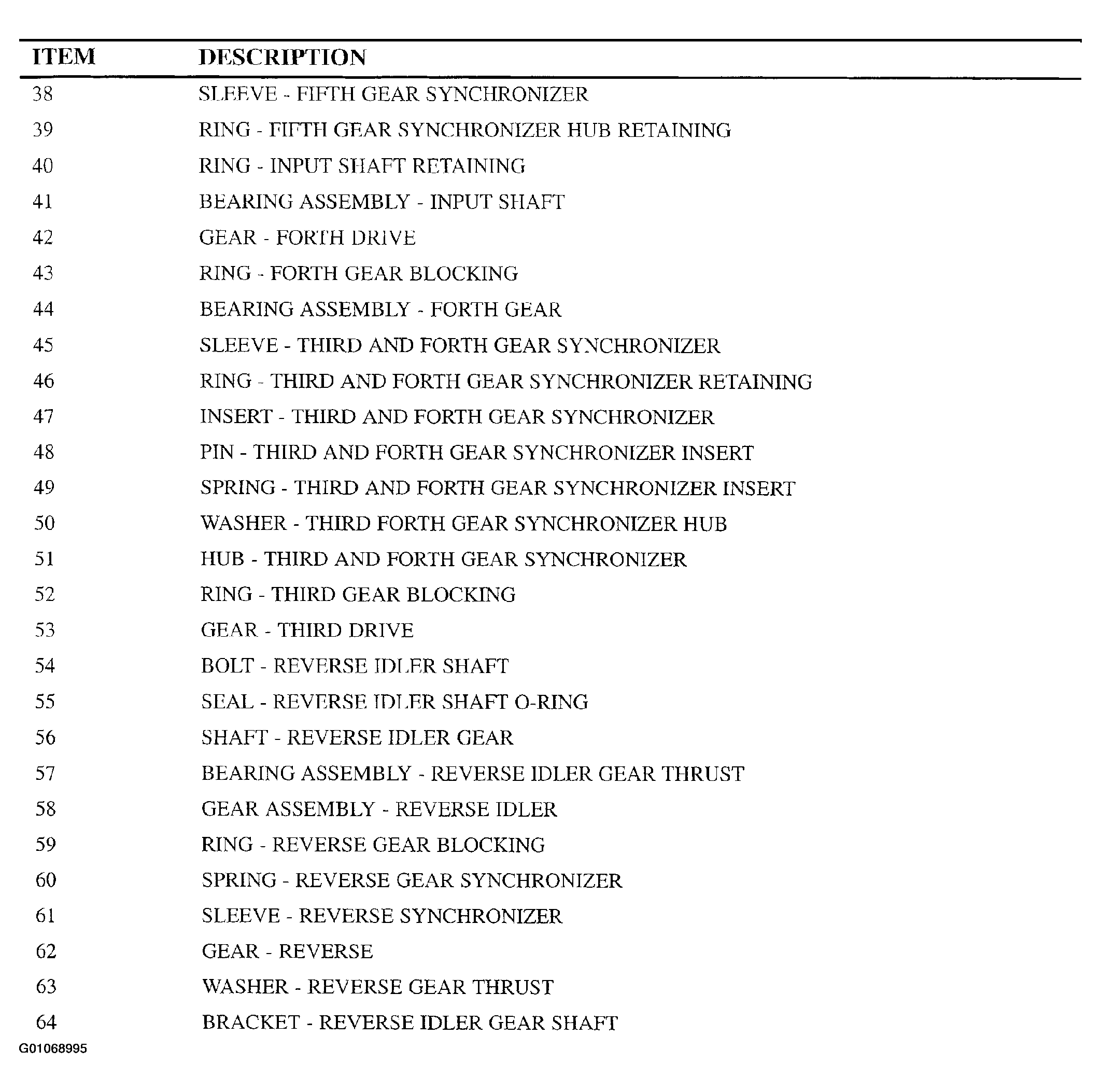

Fig 3: Input And Output Shaft Descriptions (2 of 2)

Courtesy of GENERAL MOTORS CORP.
