Cruise Control Schematics

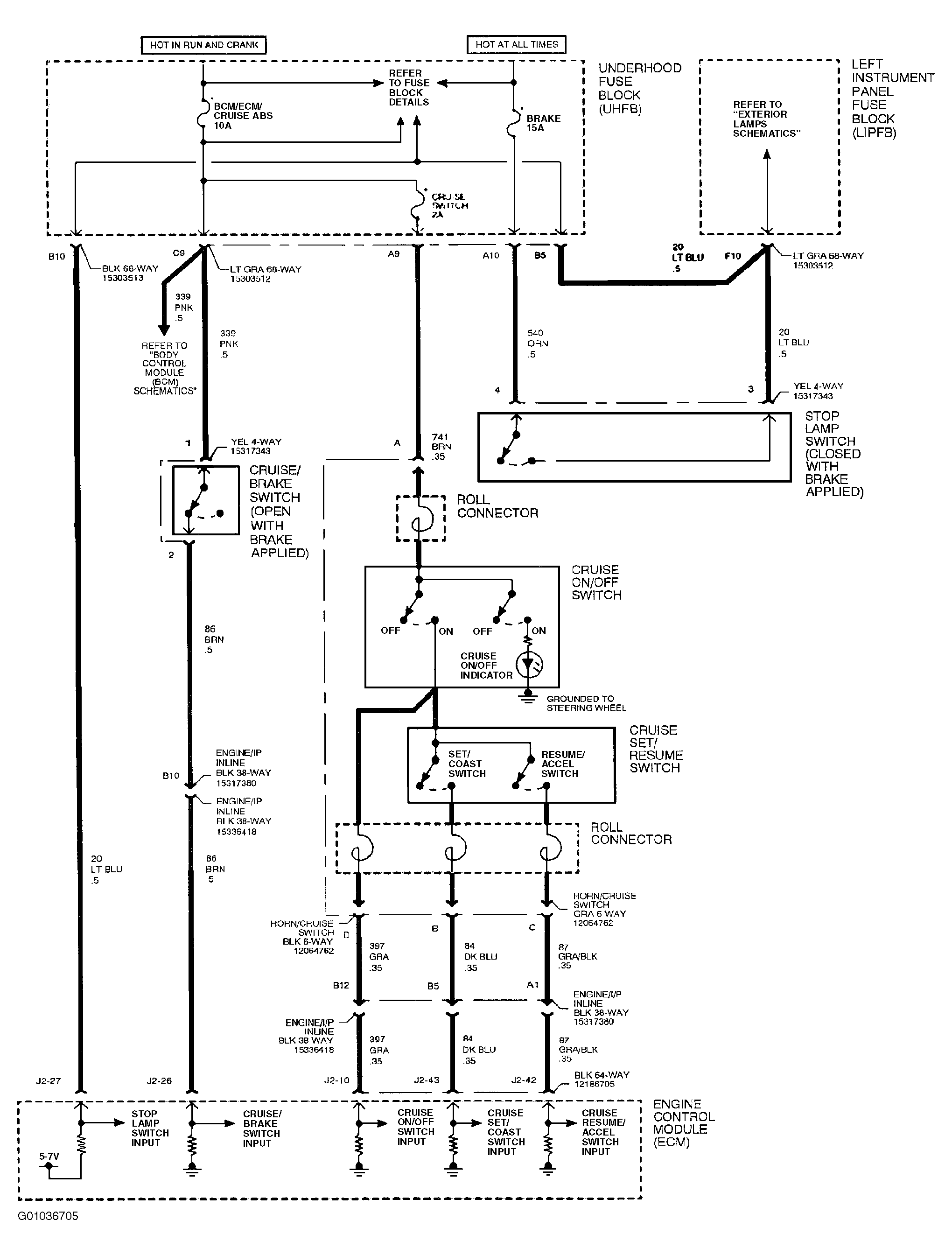

Fig 1: Cruise Control Diagnosis Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
