Lubrication System Troubleshooting Chart
Lubrication System Troubleshooting Chart

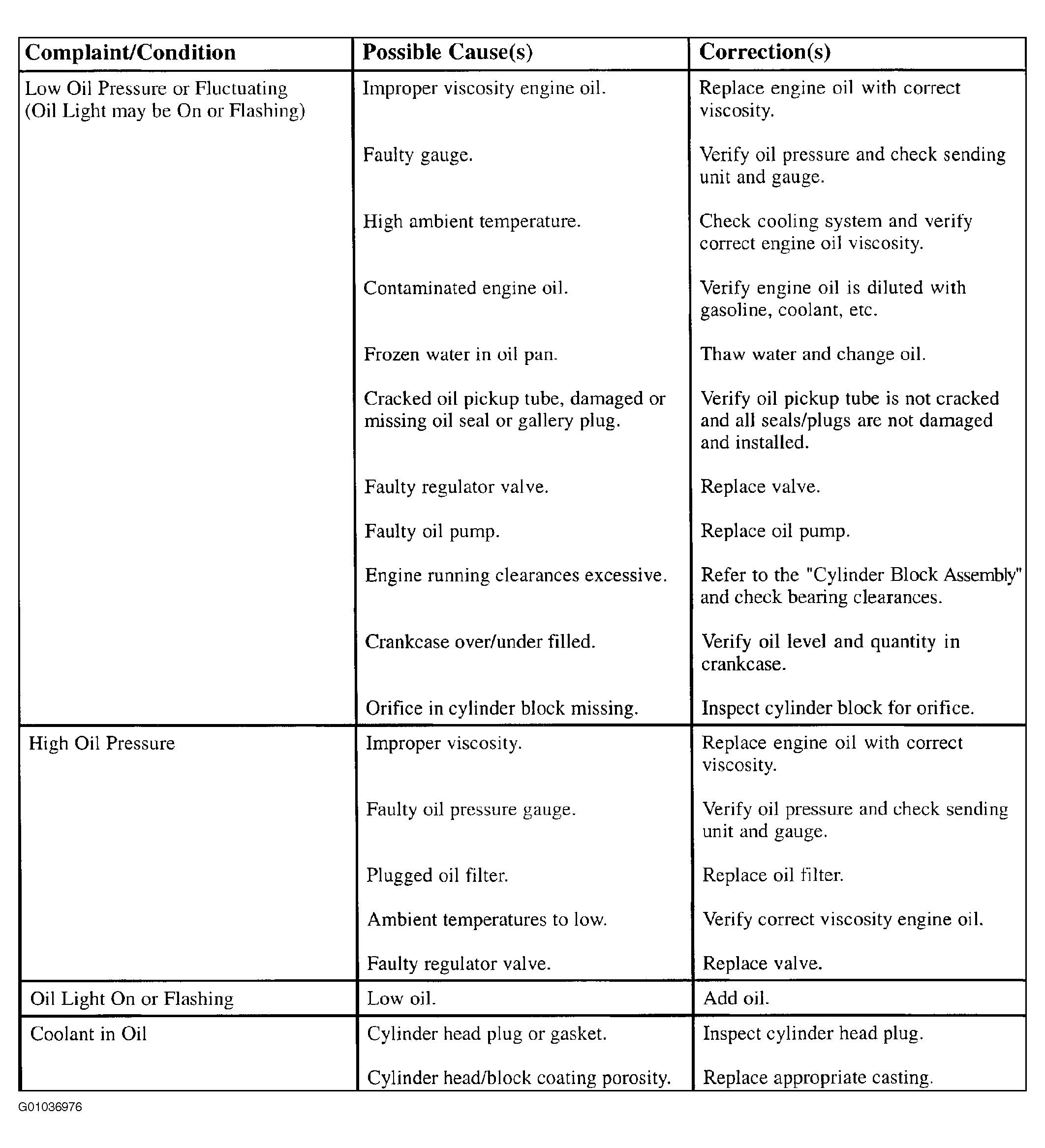

Fig 1: Diagnosing Lubrication System Problems
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
