EVAP Canister: Removal

The EVAP emissions canister is located in a molded cavity on the top of fuel tank.

1. Remove fuel tank from vehicle. Refer to REMOVAL  under FUEL TANK.
2. Disconnect 5/8 in. fuel tank vapor inlet hose fitting from canister.

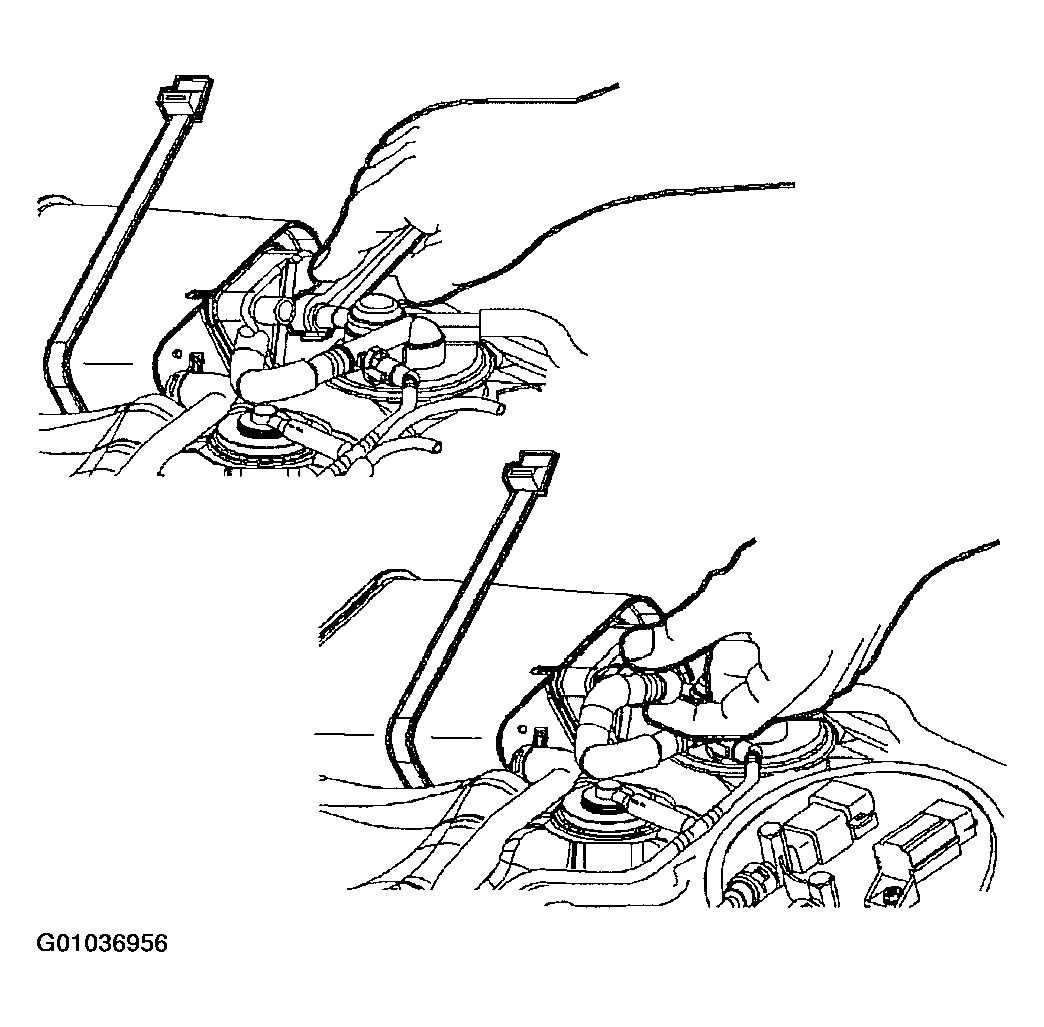

   Fig 1: Disconnecting Vapor Hose From Canister

   Courtesy of GENERAL MOTORS CORP.
3. Disconnect vent tube.
4. Disconnect 5/16 in. fuel vapor/canister purge fitting from canister using special tool Fuel Line Separator SA9805E.
5. Remove retaining strap.
6. Remove canister from fuel tank.
