Fuel Pressure Regulator: Removal

CAUTION: DO NOT ALLOW SMOKING OR THE USE OF OPEN FLAMES IN THE AREA WHERE WORK ON THE FUEL SYSTEM IS TAKING PLACE. ANYTIME THE FUEL SYSTEM IS BEING WORKED ON, DISCONNECT THE NEGATIVE BATTERY CABLE, EXCEPT FOR THOSE TESTS WHERE BATTERY VOLTAGE IS REQUIRED.

CAUTION: WHENEVER FUEL LINE FITTINGS ARE LOOSENED OR REMOVED, WRAP A SHOP CLOTH AROUND THE FITTING AND HAVE AN APPROVED CONTAINER AVAILABLE TO COLLECT ANY FUEL.

Relieve fuel system pressure. Refer to "Fuel System Pressure Relief" procedure in this section.

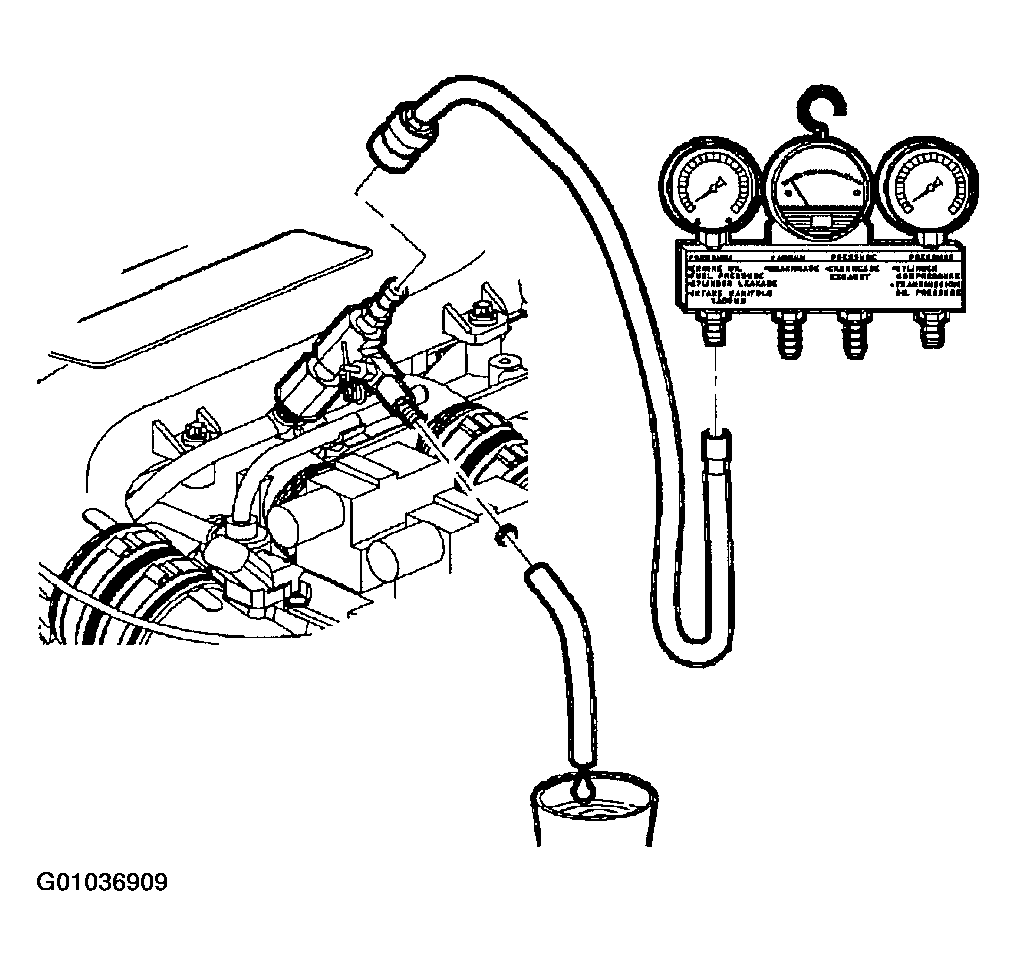

Fig 1: Relieving Fuel Pressure
Courtesy of GENERAL MOTORS CORP.
Disconnect vacuum line.
Remove retaining bolts.
Remove fuel pressure regulator.
