Engine General Diagnostic Flow Chart
Engine General Diagnostic Flow Chart

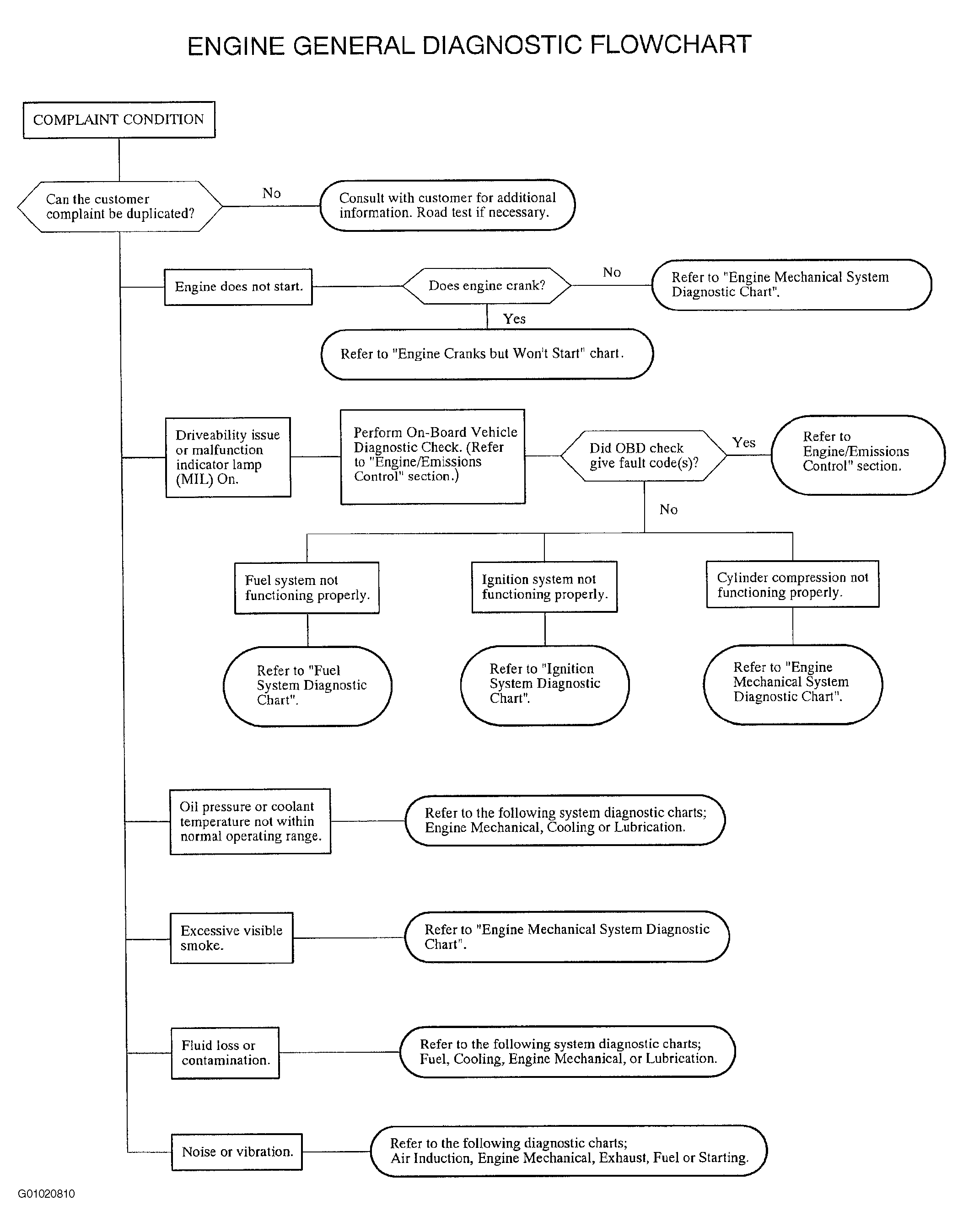

Fig 1: Engine General Diagnostic Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
