Lower Crankcase (Back View)

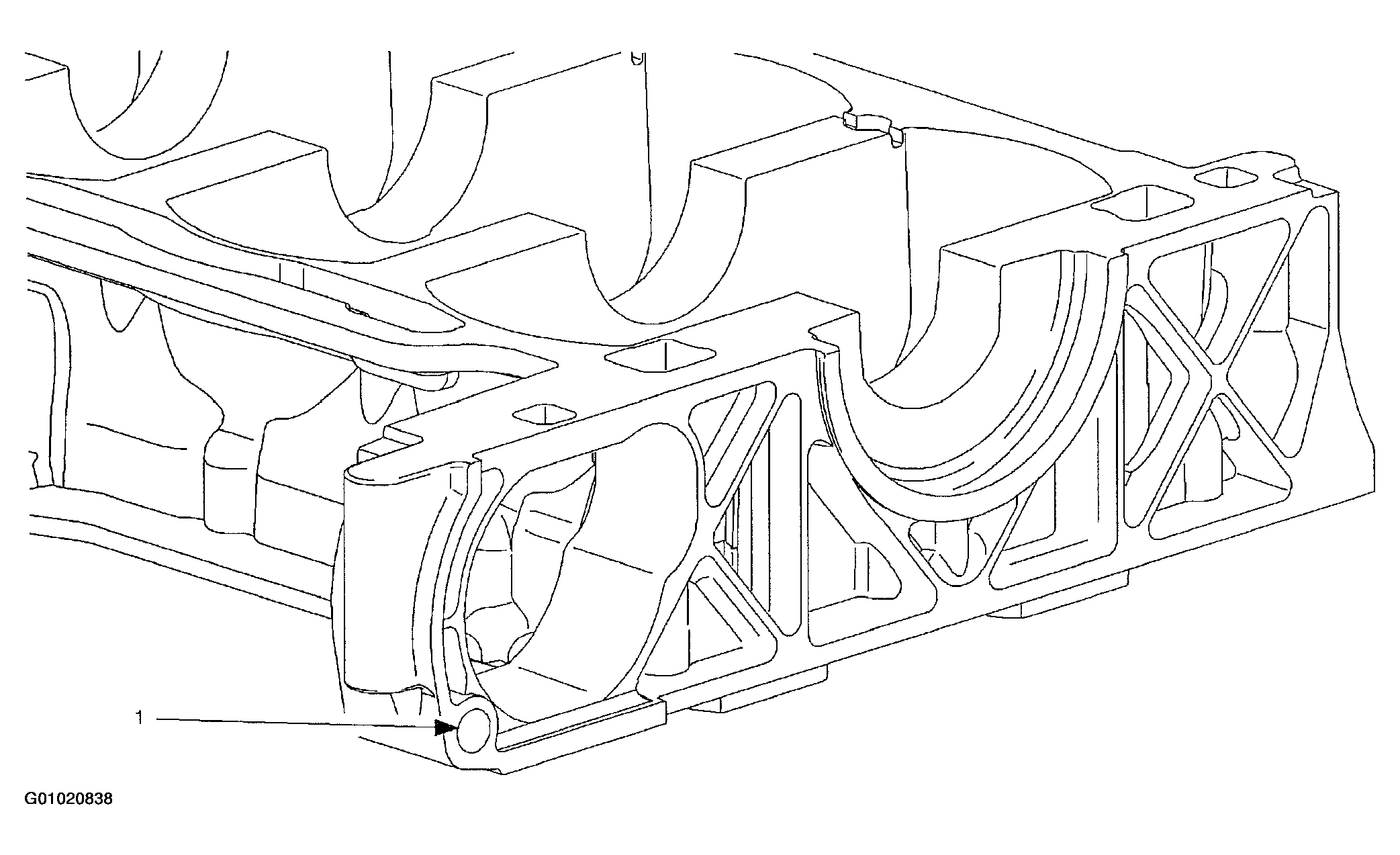

Fig 1: Lower Crankcase (Back View)
G01020838Courtesy of GENERAL MOTORS CORP.

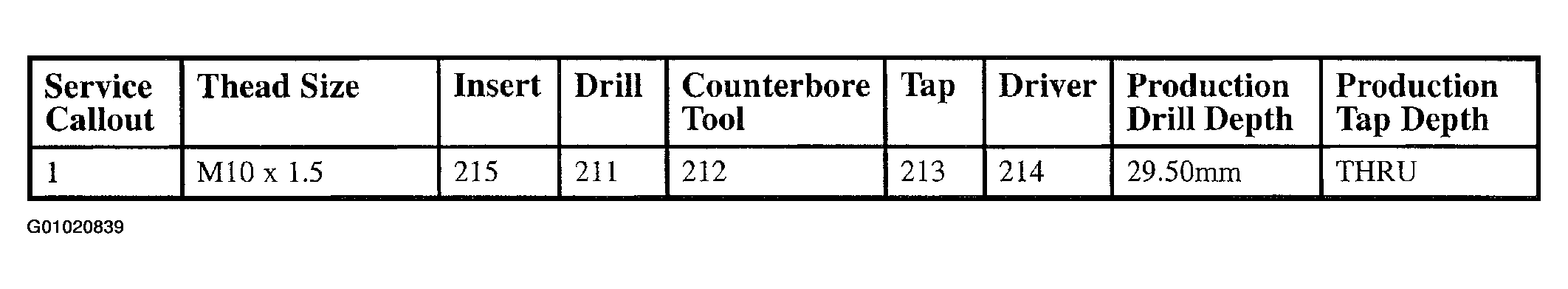

Fig 2: Lower Crankcase (Back View) Specifications
G01020839Courtesy of GENERAL MOTORS CORP.
