Home › Saturn › 2002 › LW200 Automatic › Repair and Diagnosis › Engine Mechanical › Mechanical › General Information › Specifications › Lower Crankcase (Bottom View)

Lower Crankcase (Bottom View)

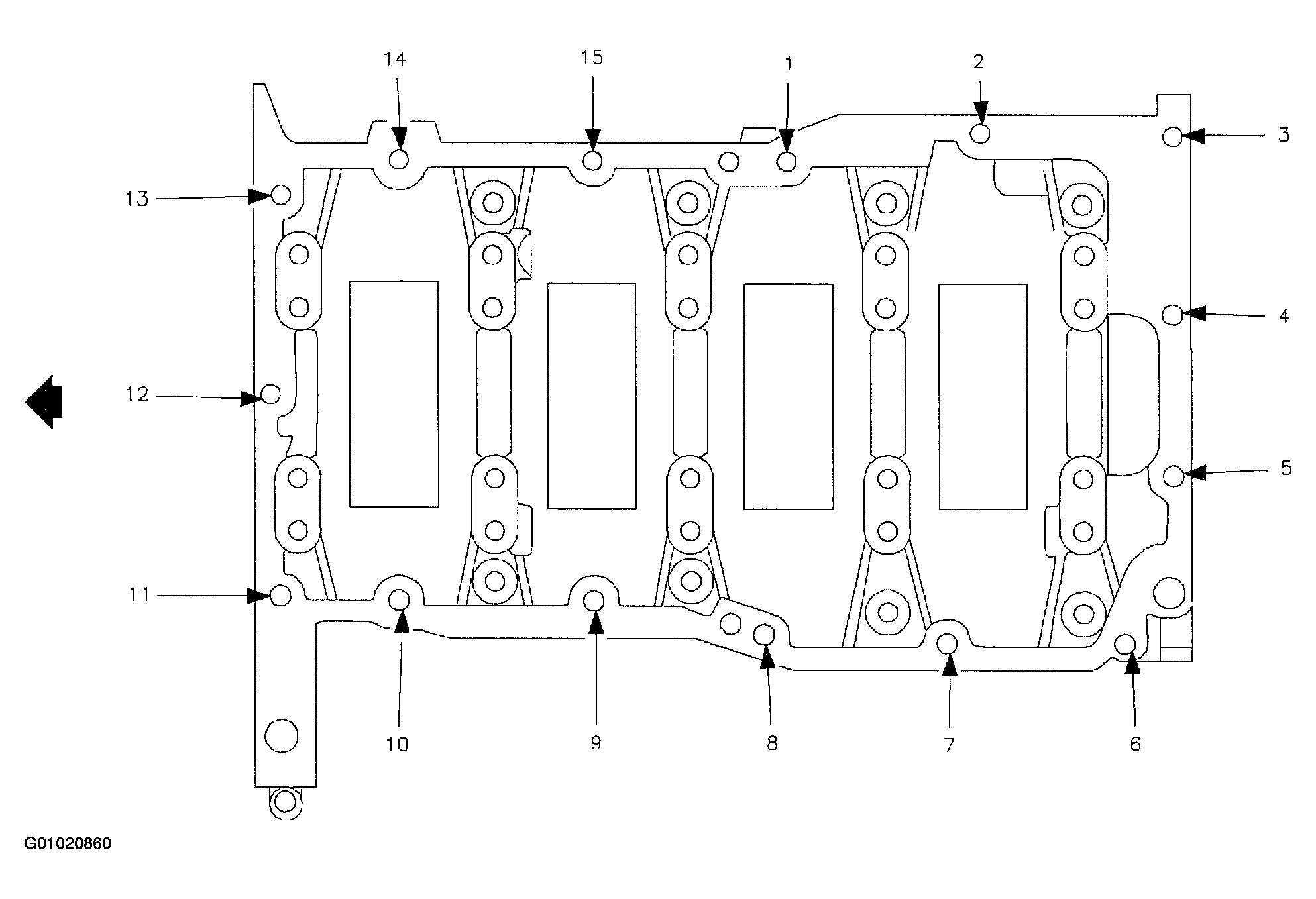

Fig 1: Lower Crankcase (Bottom View)
G01020860Courtesy of GENERAL MOTORS CORP.

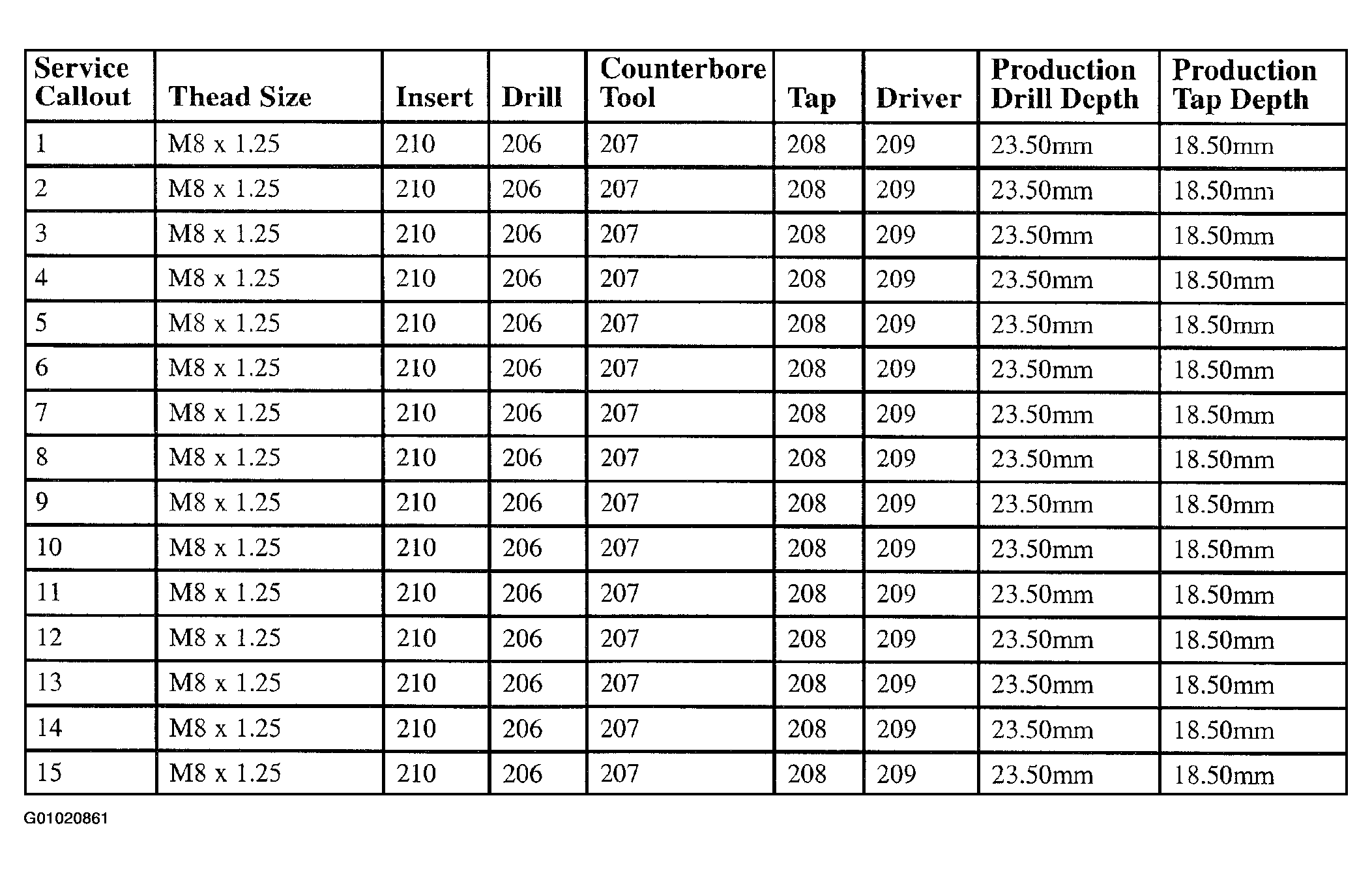

Fig 2: Lower Crankcase (Bottom View) Specifications
G01020861Courtesy of GENERAL MOTORS CORP.
