Lower Crankcase (Front View)

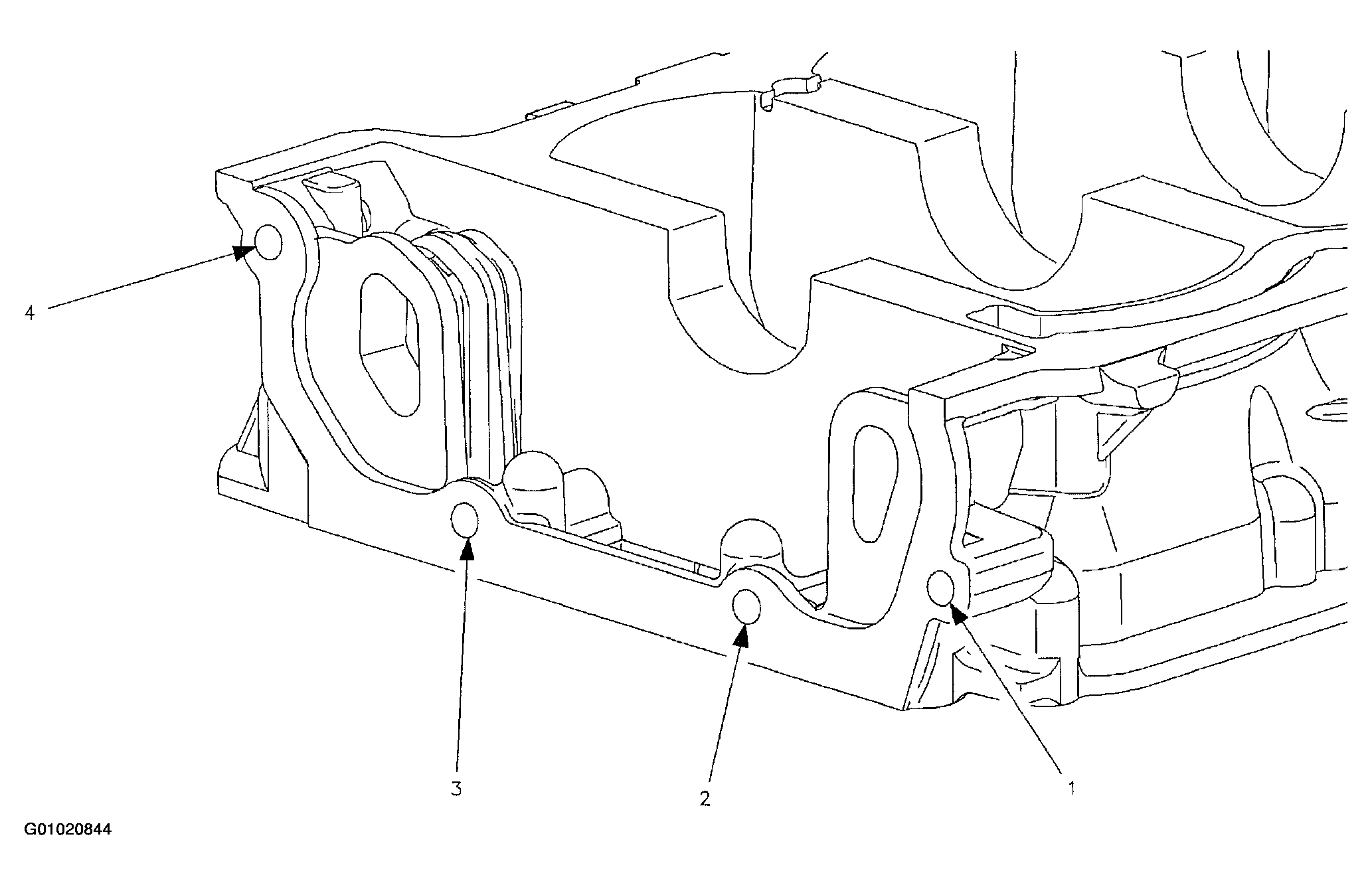

Fig 1: Lower Crankcase (Front View)
G01020844Courtesy of GENERAL MOTORS CORP.

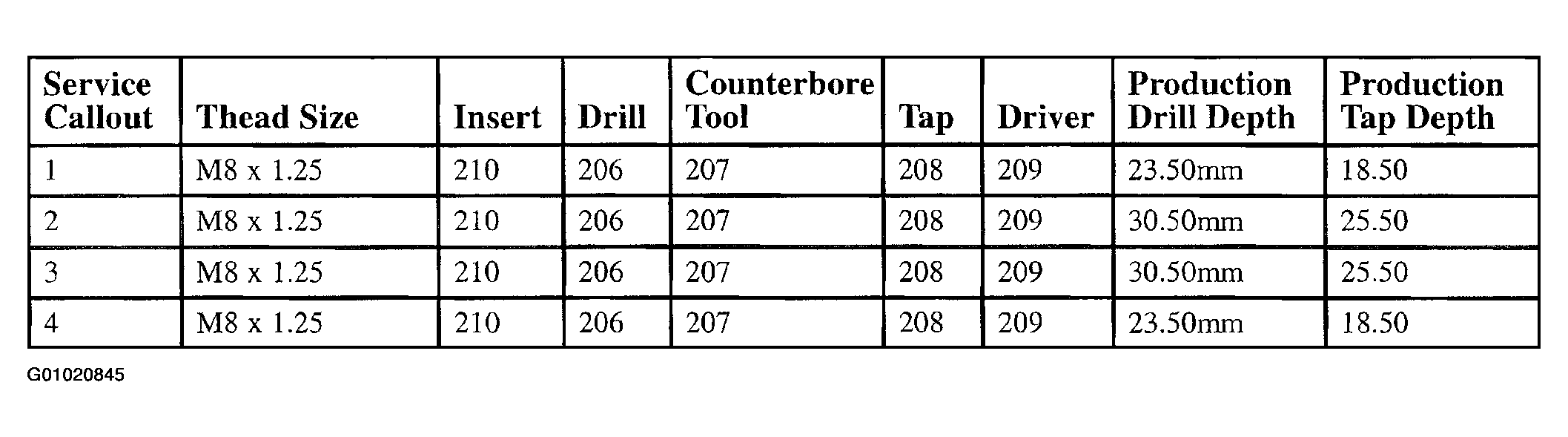

Fig 2: Lower Crankcase (Front View) Specifications
G01020845Courtesy of GENERAL MOTORS CORP.
