ONSTAR Diagnostic System Check
ONSTAR Diagnostic System Check

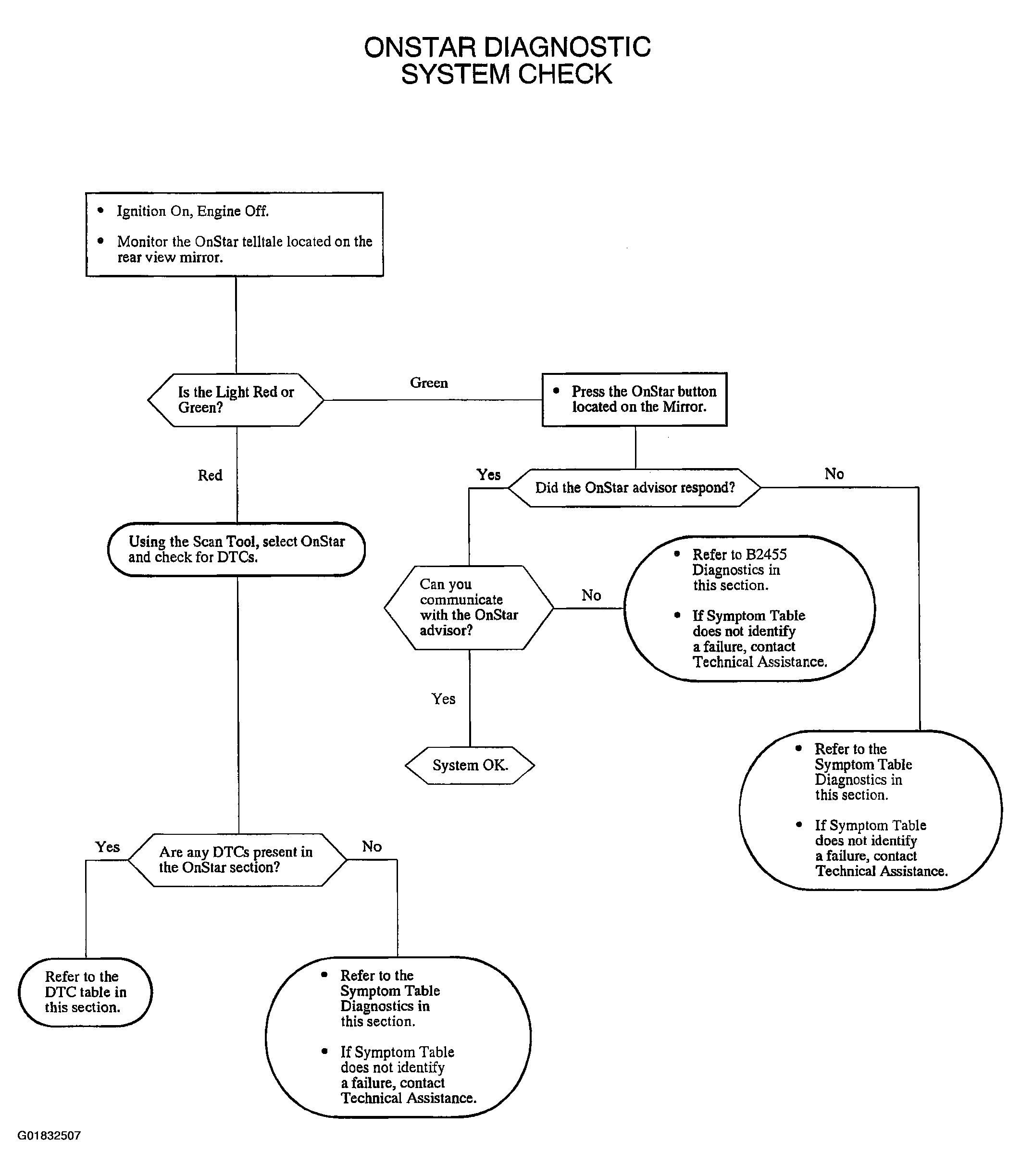

Fig 1: OnStar Diagnostic System Check
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
