Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the washer solvent level sensor in the washer solvent container.

Fig 1: Installing Washer Solvent Level Sensor
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the washer solvent level sensor.

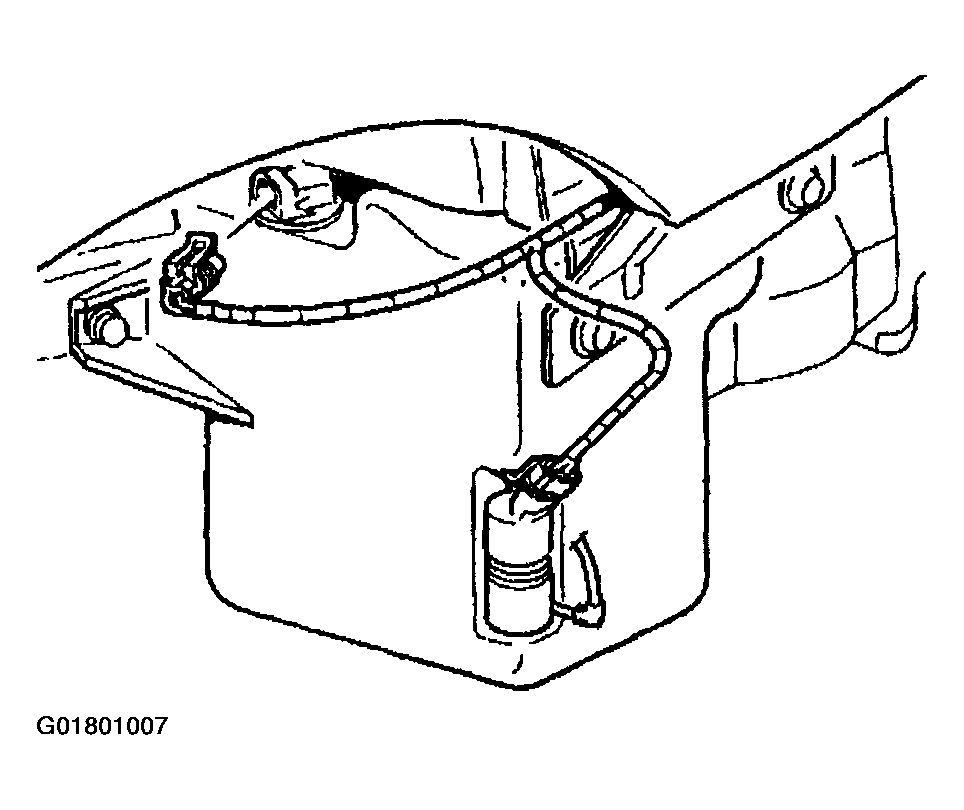

Fig 2: Connecting Electrical Connectors

G01801007

Courtesy of GENERAL MOTORS CORP.

Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT -- FRONT .
Fill the washer solvent container.
