HVAC System Harness Connector End View
HVAC System Harness Connector End View

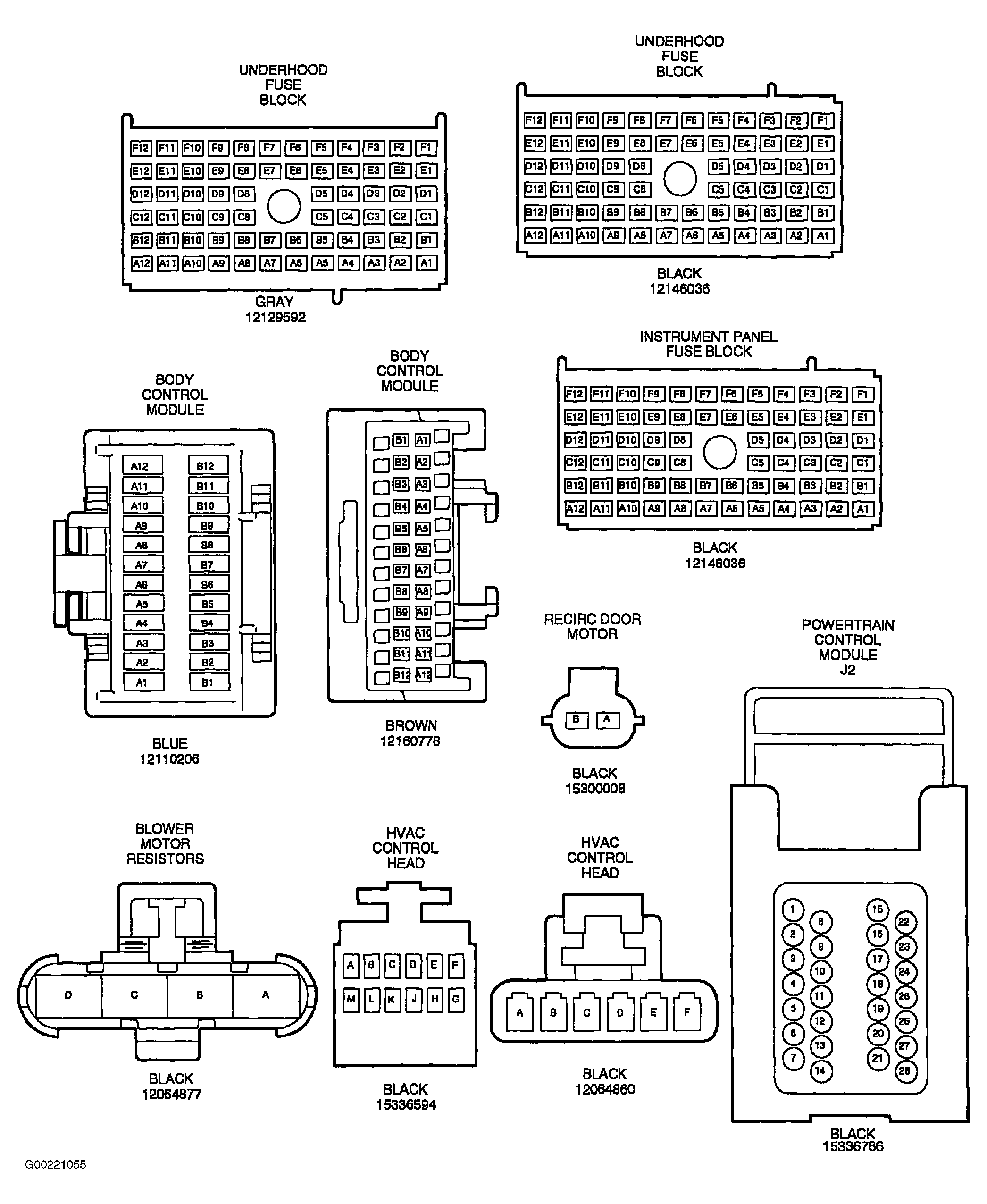

Fig 1: HVAC System Harness
Courtesy of GENERAL MOTORS CORP.
Fig 1: HVAC System Harness
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.Courtesy of GENERAL MOTORS CORP.
