Scan Tool Data List

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

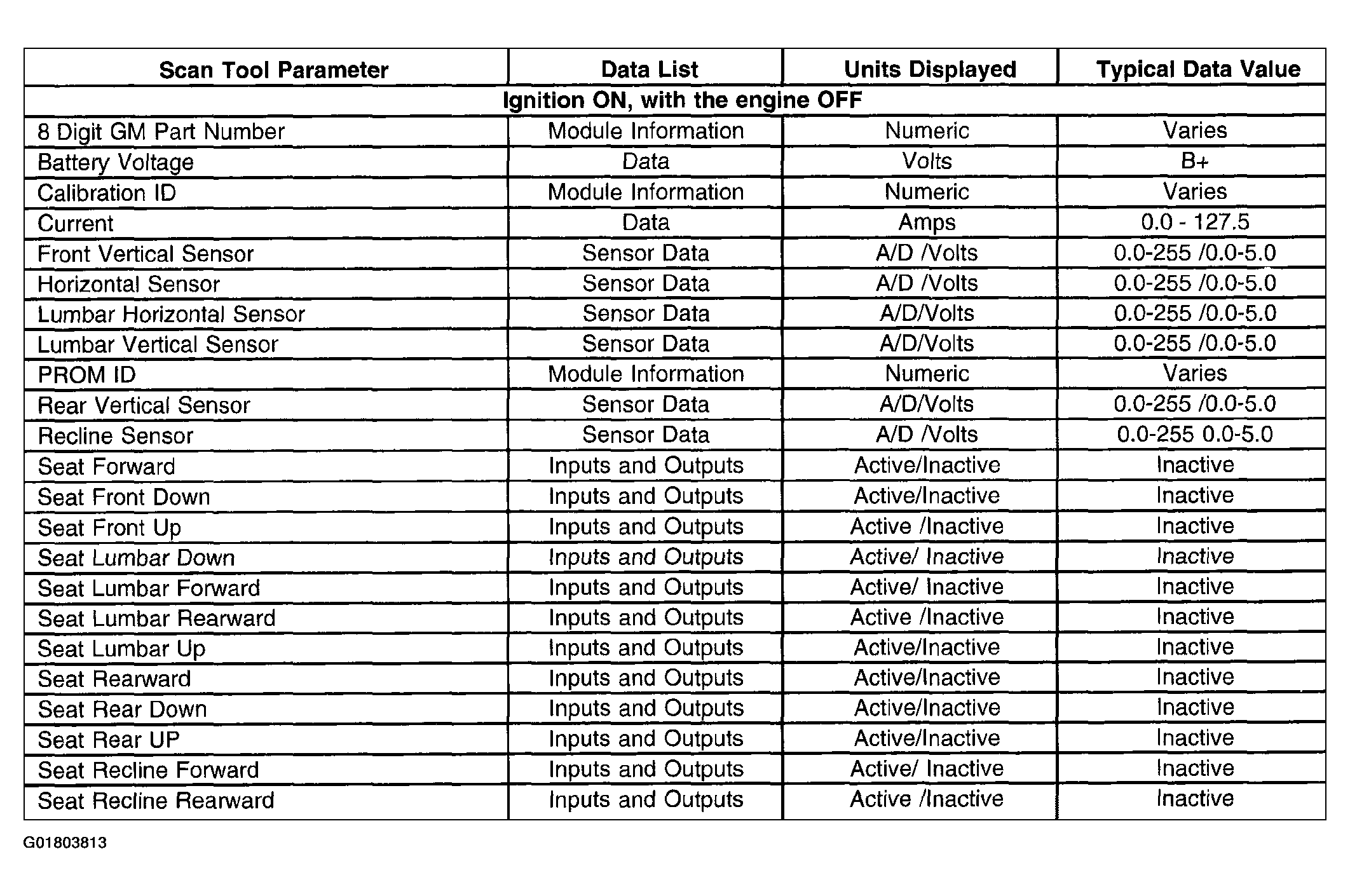

Fig 1: Memory Seat Module

Courtesy of GENERAL MOTORS CORP.

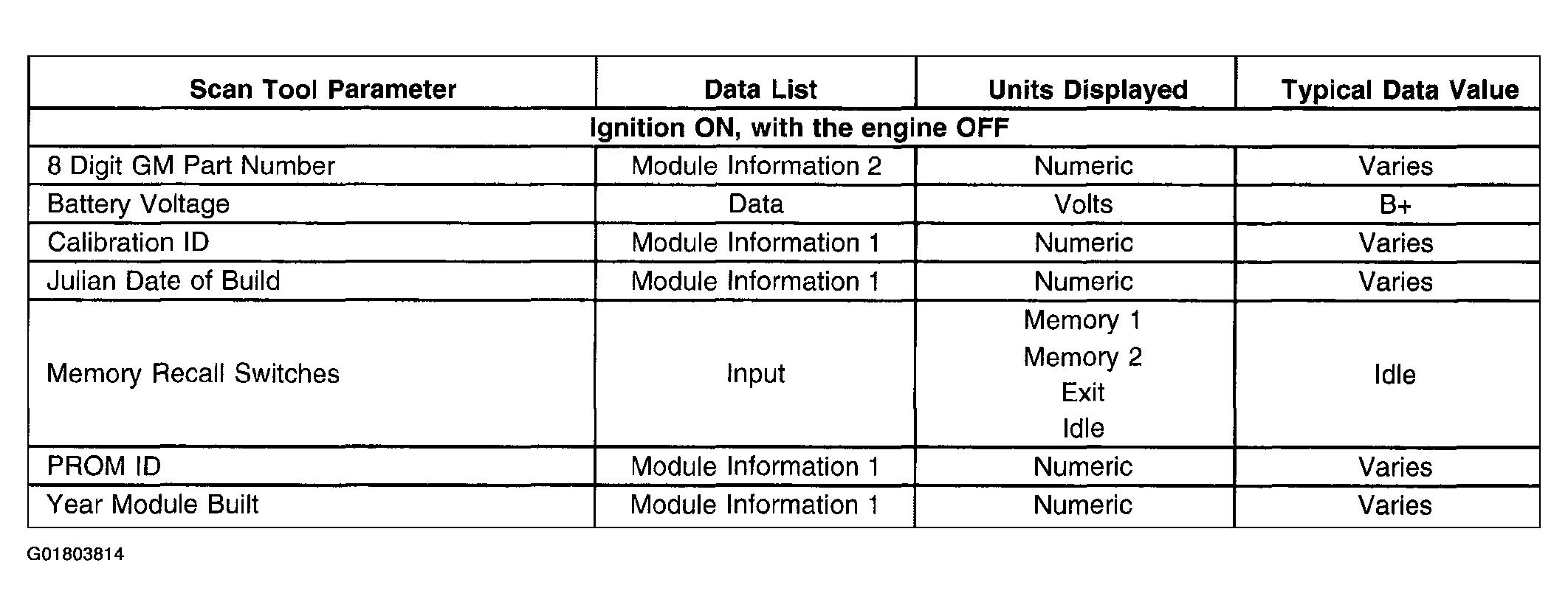

Fig 2: Driver Door Module

Courtesy of GENERAL MOTORS CORP.

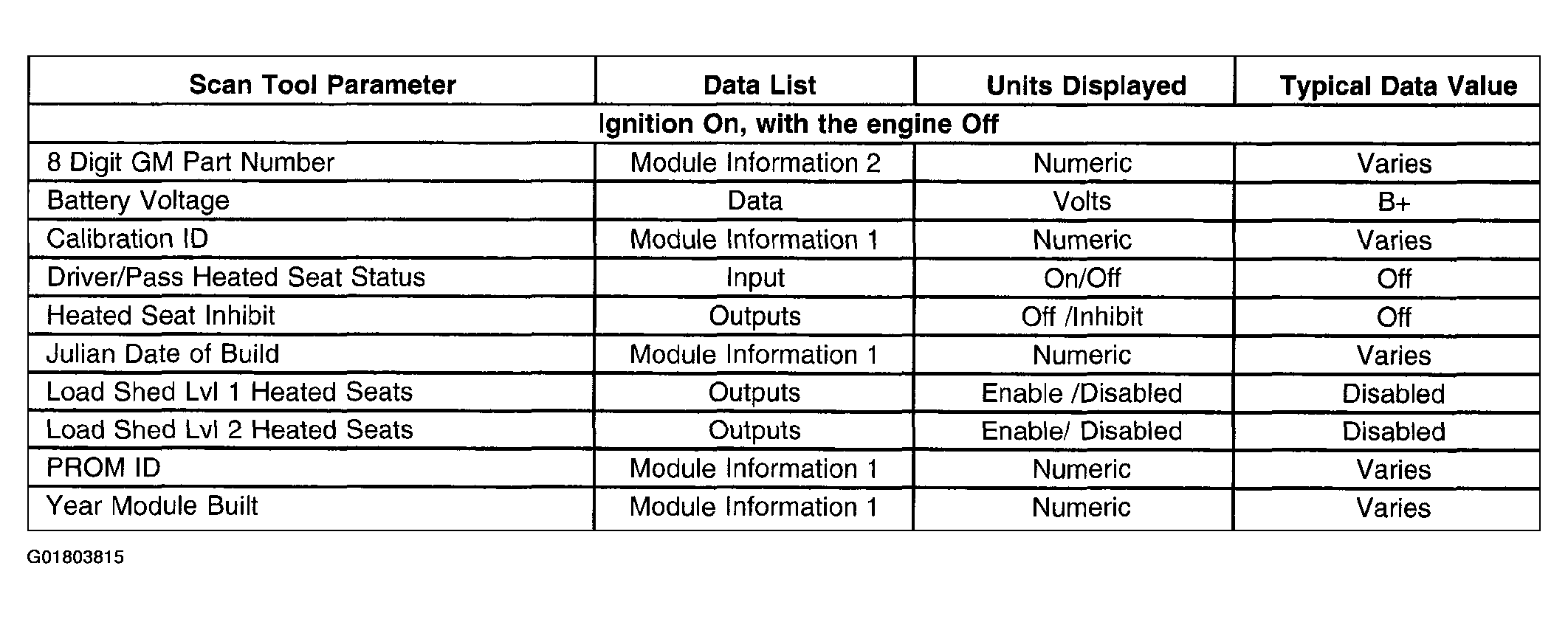

Fig 3: Rear Integration Module

Courtesy of GENERAL MOTORS CORP.

Fig 4: Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.
