Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect electrical connector to the headlamp bulb (3 or 4).
  2. Install the headlamp bulb (3 or 4) into the headlamp assembly (1) by turning 1/4 turn clockwise.
  3. Install the headlamp assembly to the vehicle. Refer to Headlamp Replacement  .

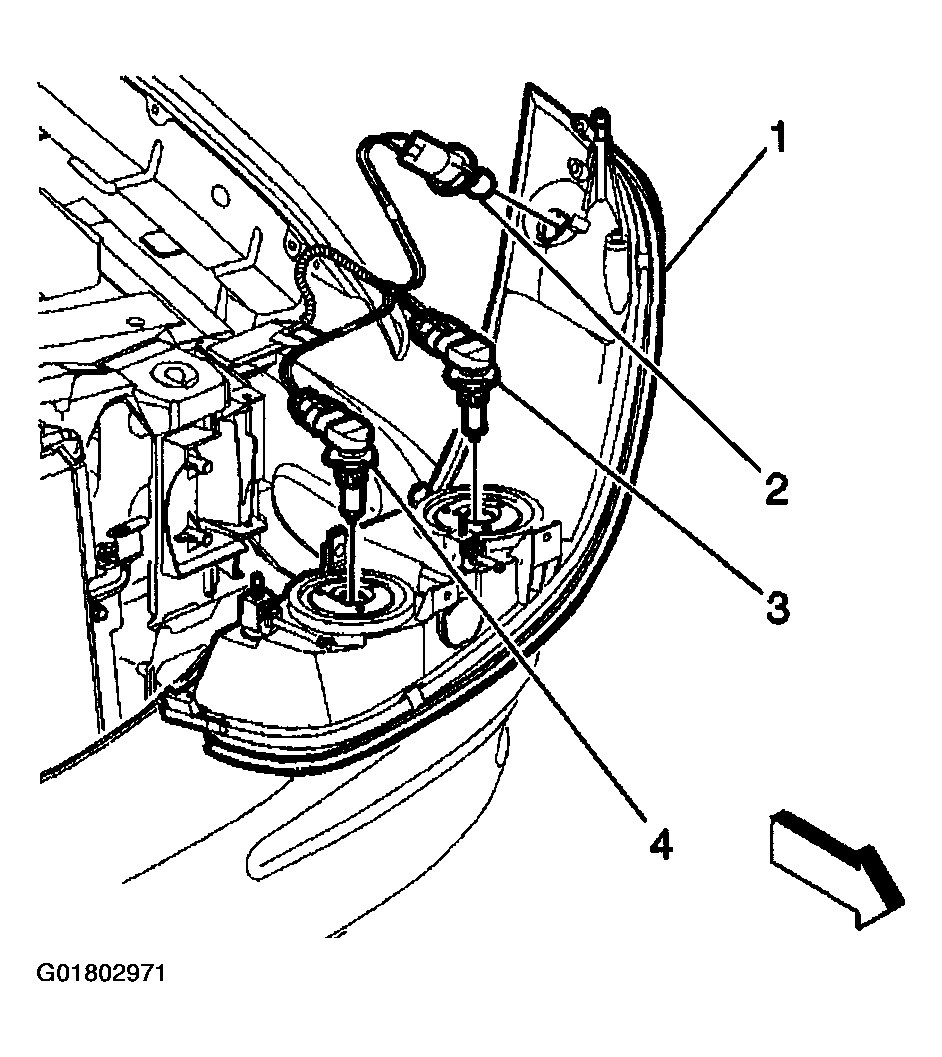

    Fig 1: Installing Headlamp Bulb
    G01802971Courtesy of GENERAL MOTORS CORP.
