Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the stabilizer shaft from the vehicle. Refer to STABILIZER SHAFT REPLACEMENT  .
  4. Remove the stabilizer shaft insulators from the stabilizer shaft.

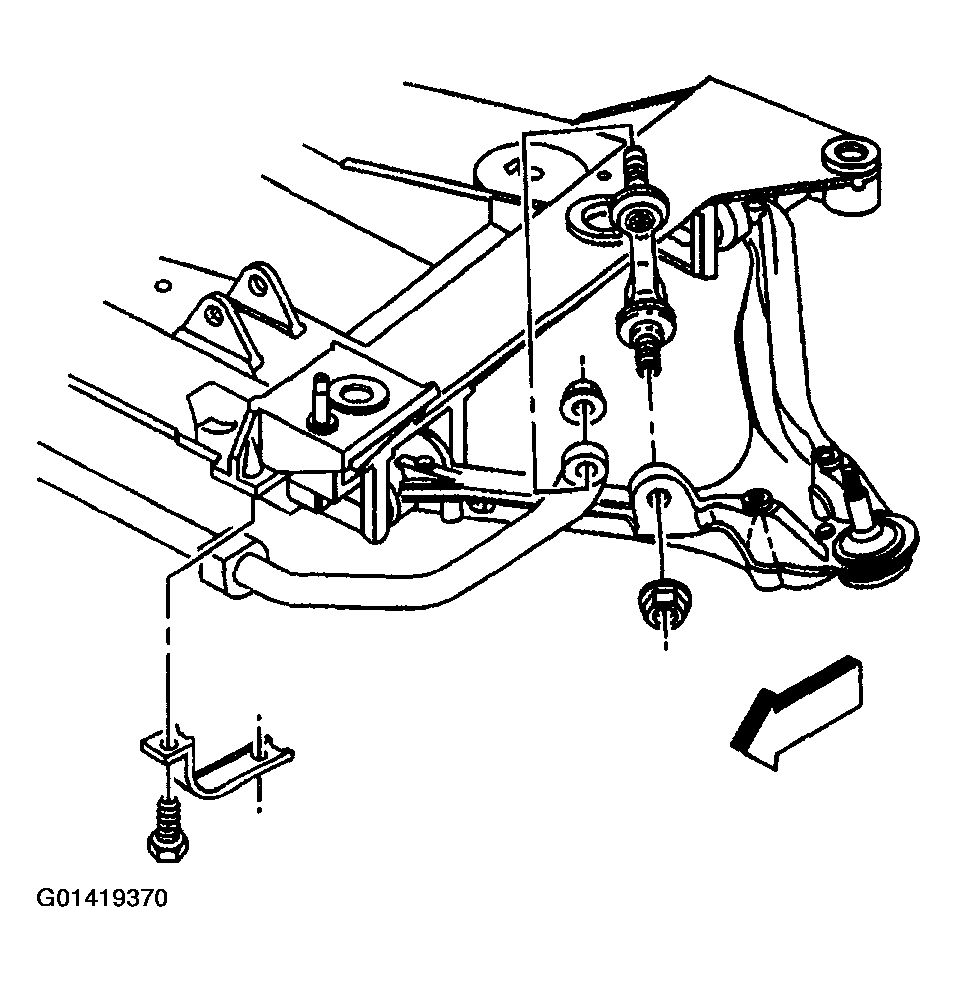

Fig 1: Removing Stabilizer Shaft Insulators
G01419370Courtesy of GENERAL MOTORS CORP.
