Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the stabilizer shaft link into the stabilizer shaft and lower control arm.

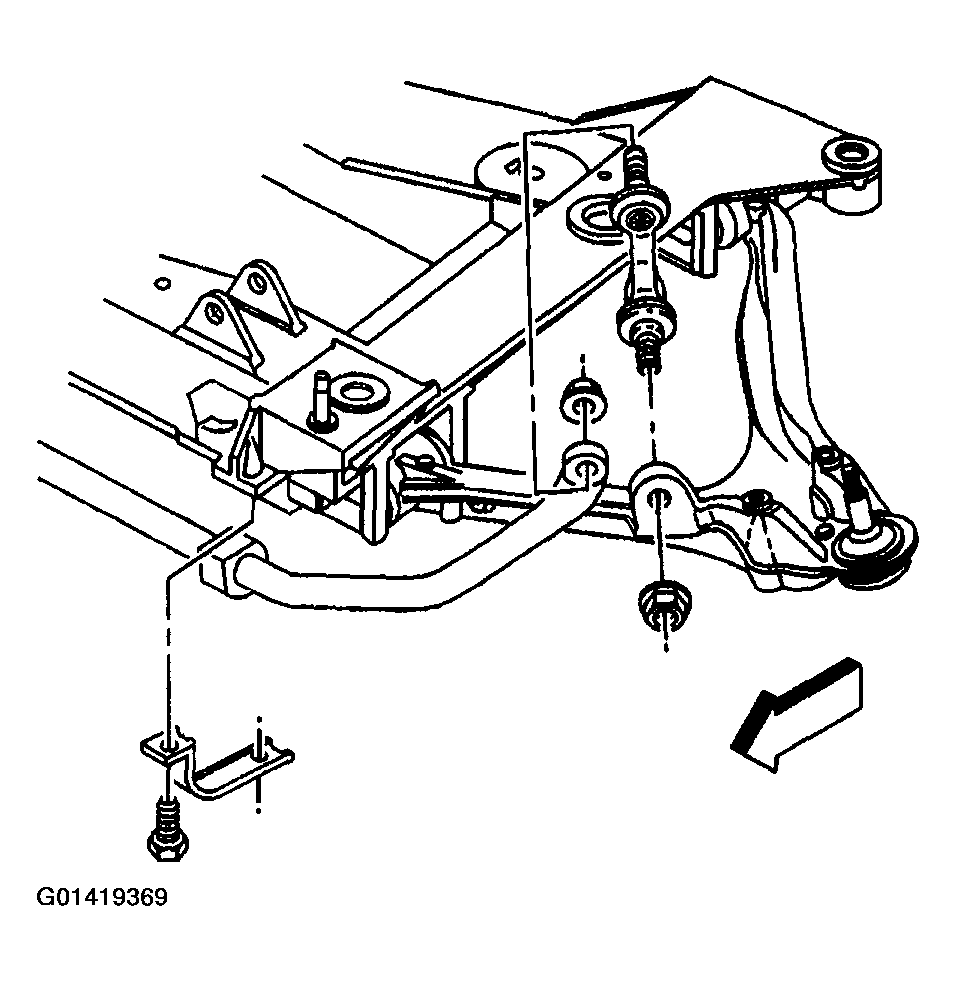

Fig 1: Installing Stabilizer Shaft Link
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the stabilizer shaft link nuts.
Tighten

Tighten the stabilizer shaft link nuts to 72 N.m (53 lb ft).
Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.
