Cruise Control Component Views

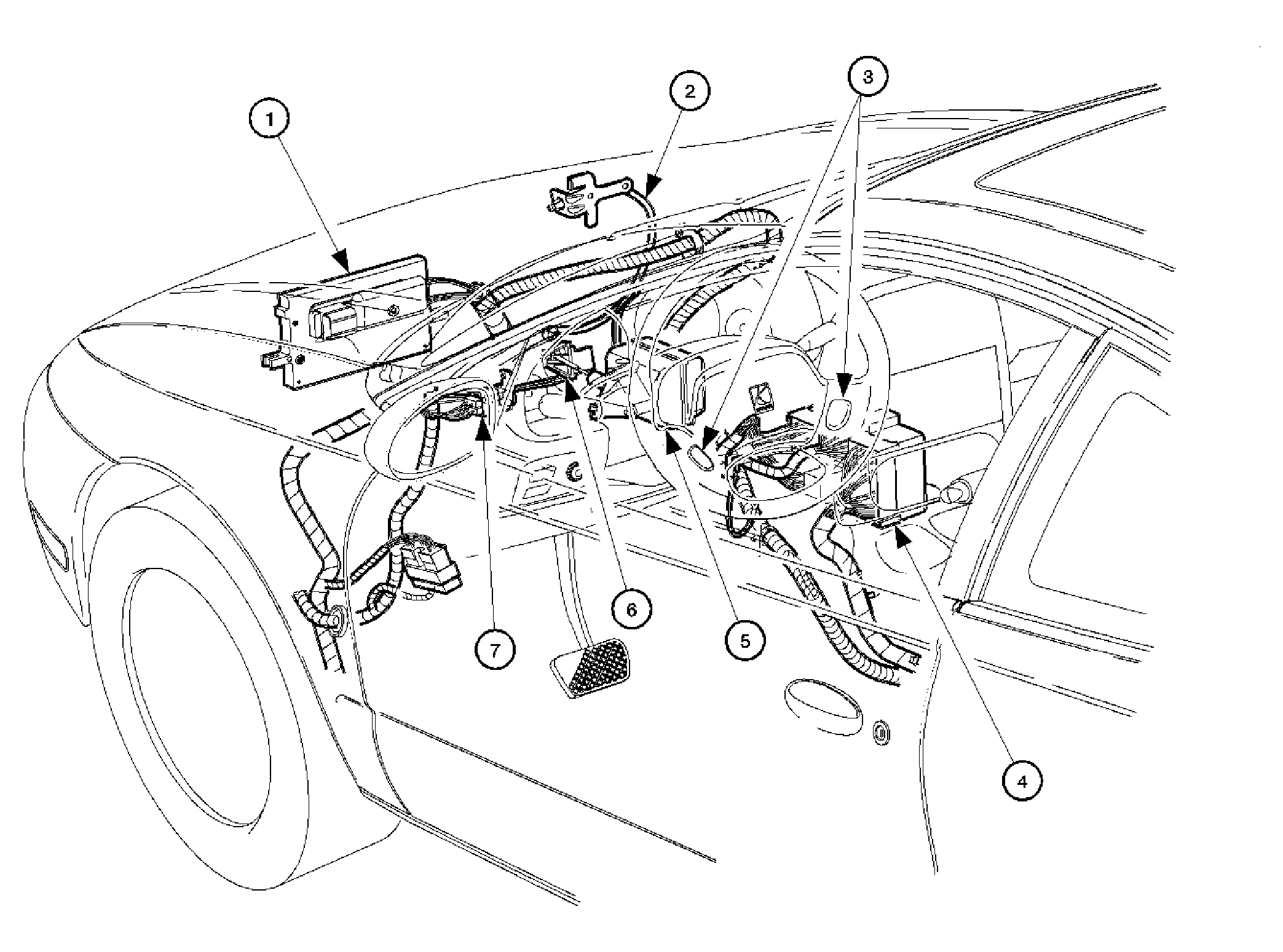

Fig 1: Cruise Control Component Views
GM883026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Powertrain Control Module (PCM)
2 Throttle Cable
3 Cruise Control Switches
4 Instrument Panel Fuse Block (IPFB)
5 Cruise Control Module
6 Cruise Control Rod
7 Stop Lamp Switch
