Stationary Windows Component Views

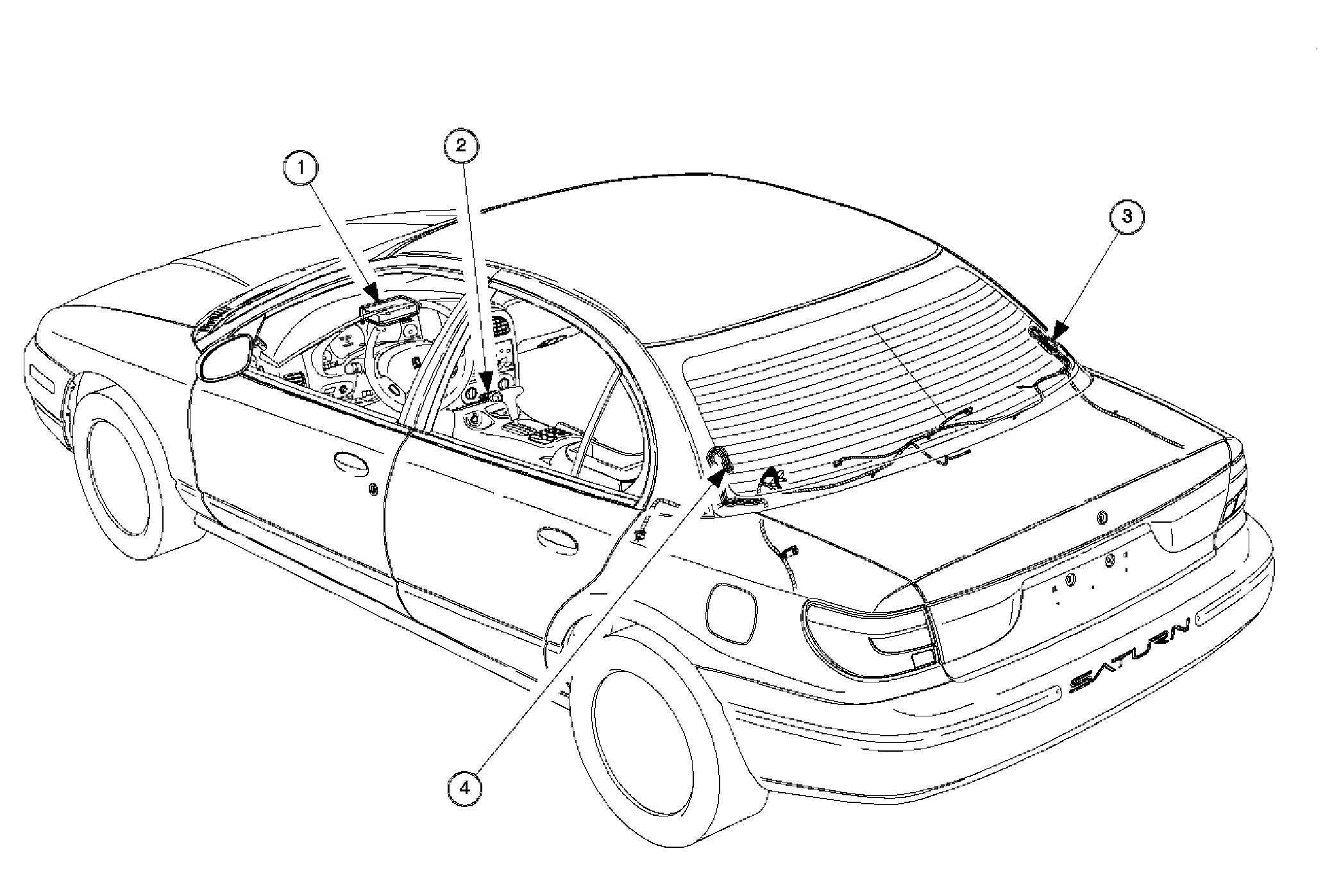

Fig 1: Stationary Windows Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module
2	Rear Defog Switch on HVAC Control Head
3	Rear Defog Ground Connector-Power Connector Switch
4	Rear Defog Power Connection-Ground Connector Switch
