Component Locations

NOTE: For cooling fan-related components, see Fig 1 -Fig 3 .

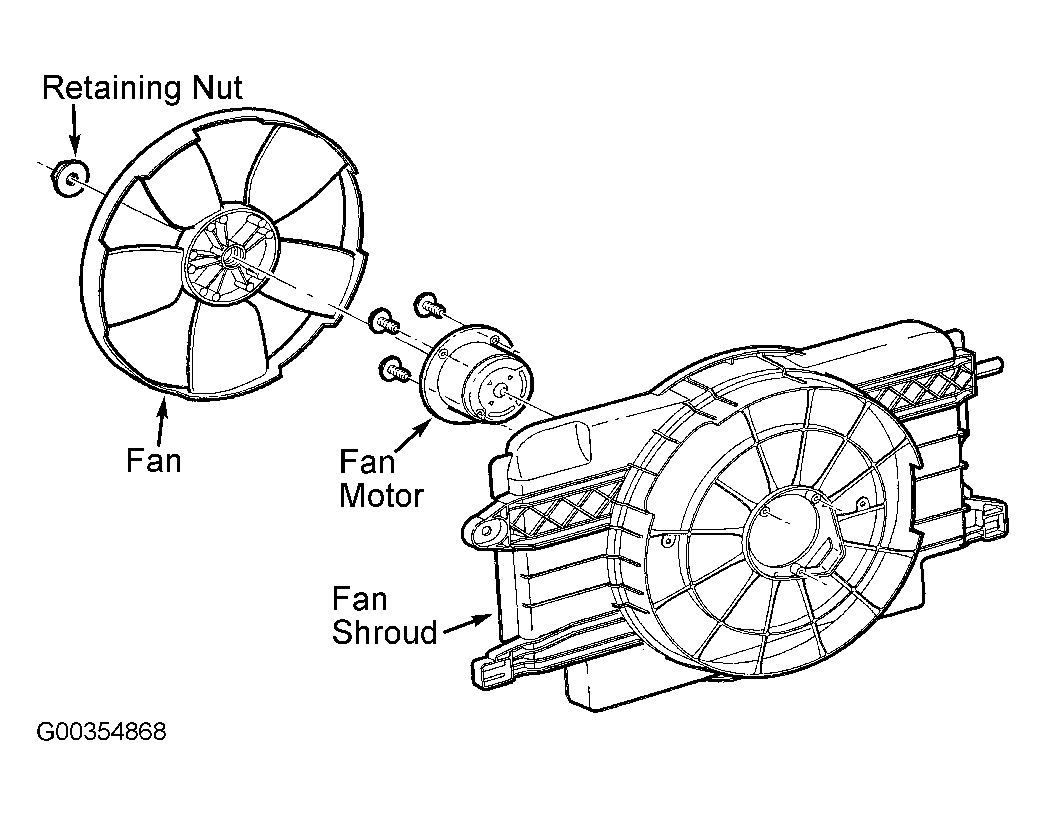

Fig 1: Identifying Cooling Fan Components
G00354868Courtesy of GENERAL MOTORS CORP.

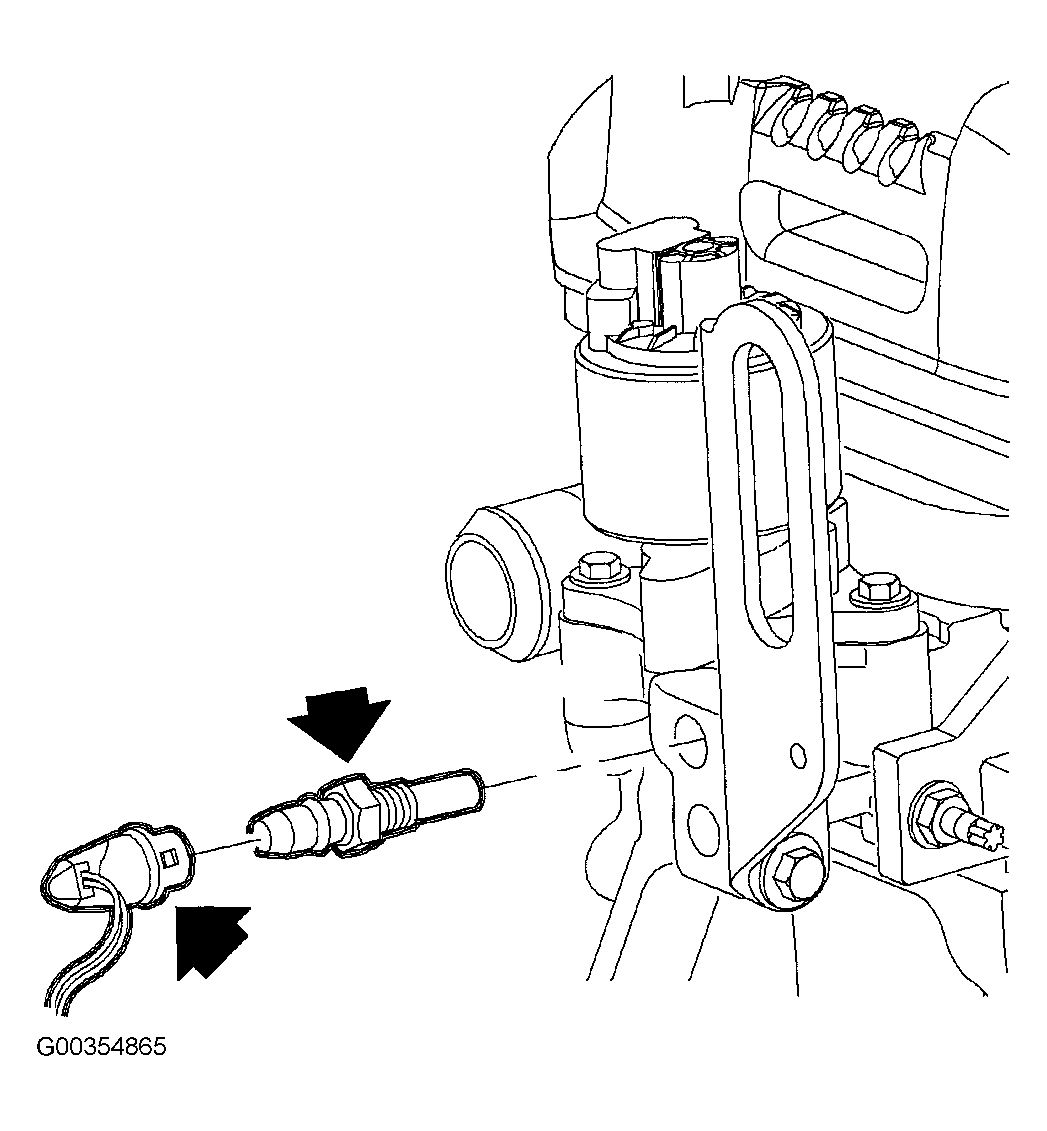

Fig 2: Locating Engine Coolant Temperature (ECT) Sensor
G00354865Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating PCM
G00132345Courtesy of GENERAL MOTORS CORP.
