Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

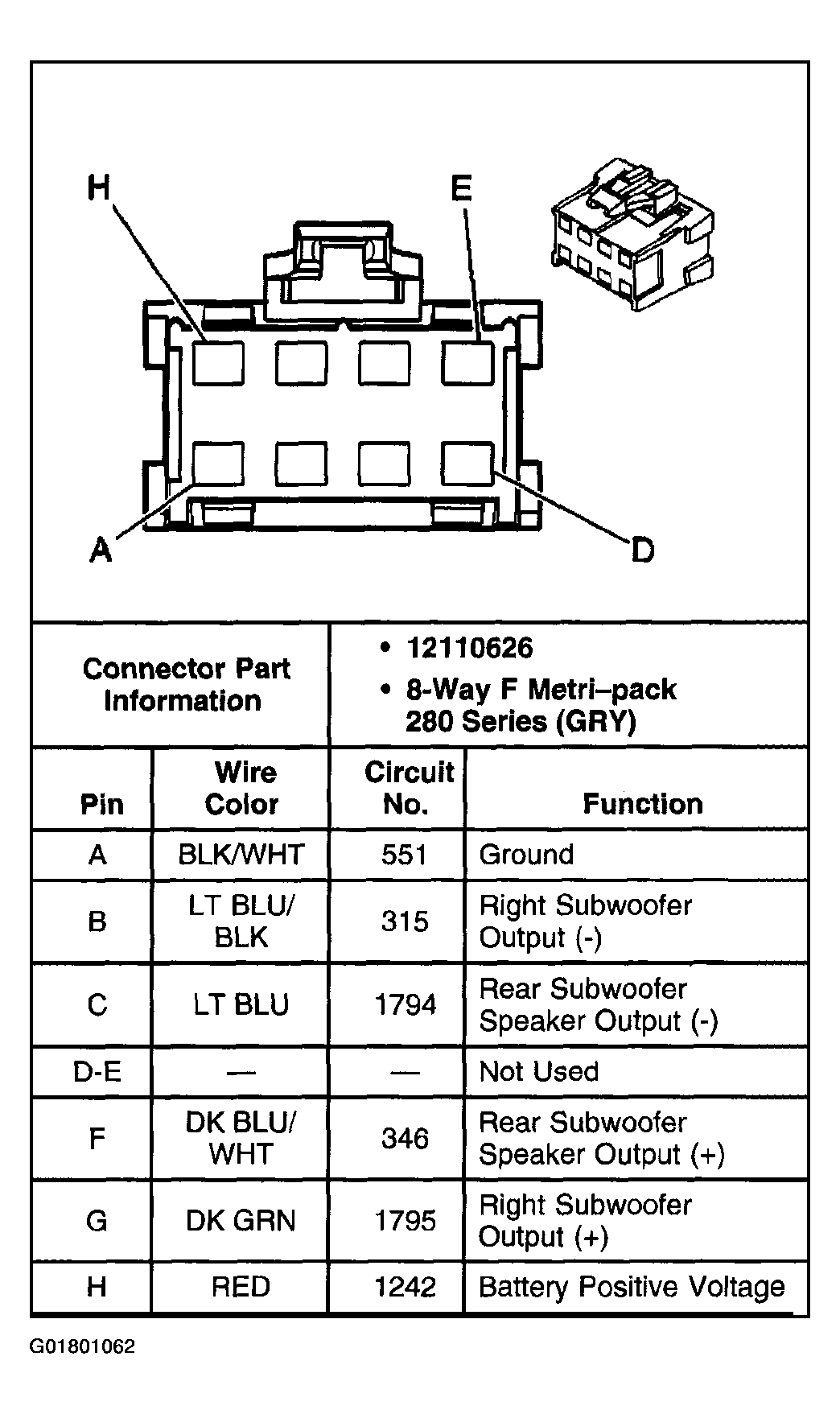

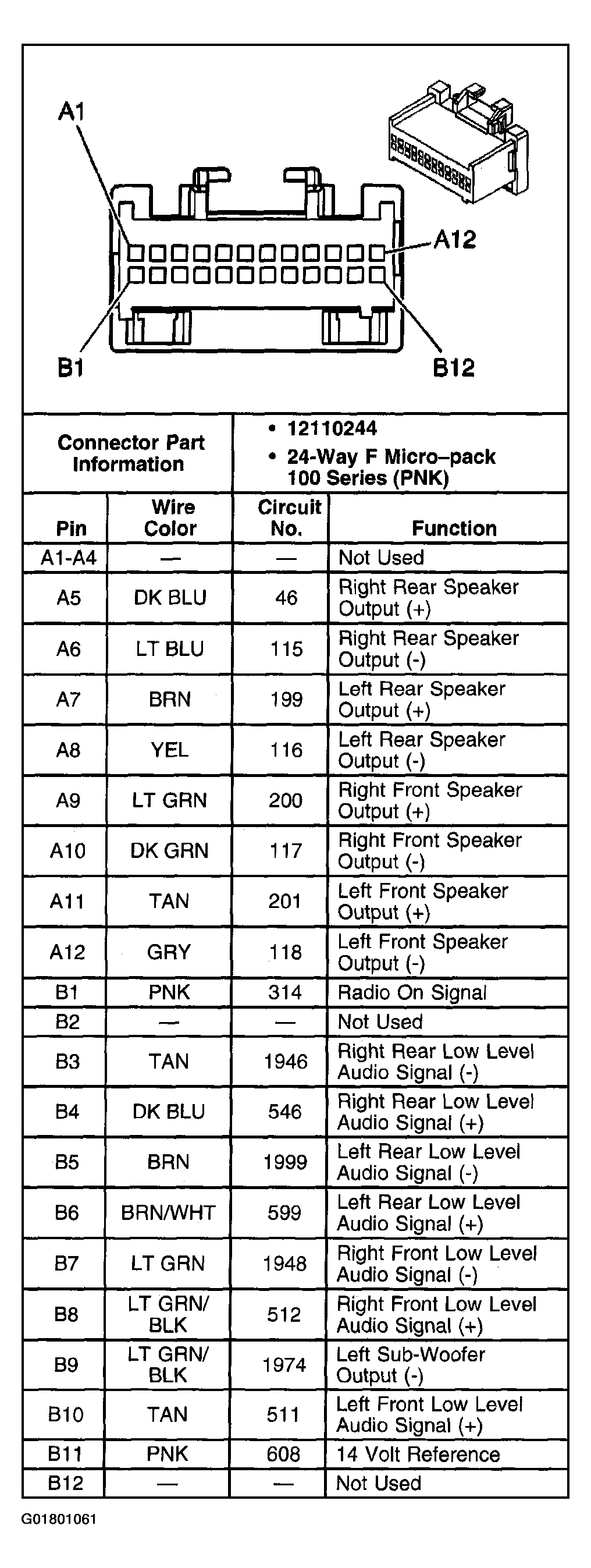

Fig 1: Audio Amplifier C1 (U80)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Audio Amplifier C2 (U80)

Courtesy of GENERAL MOTORS CORP.

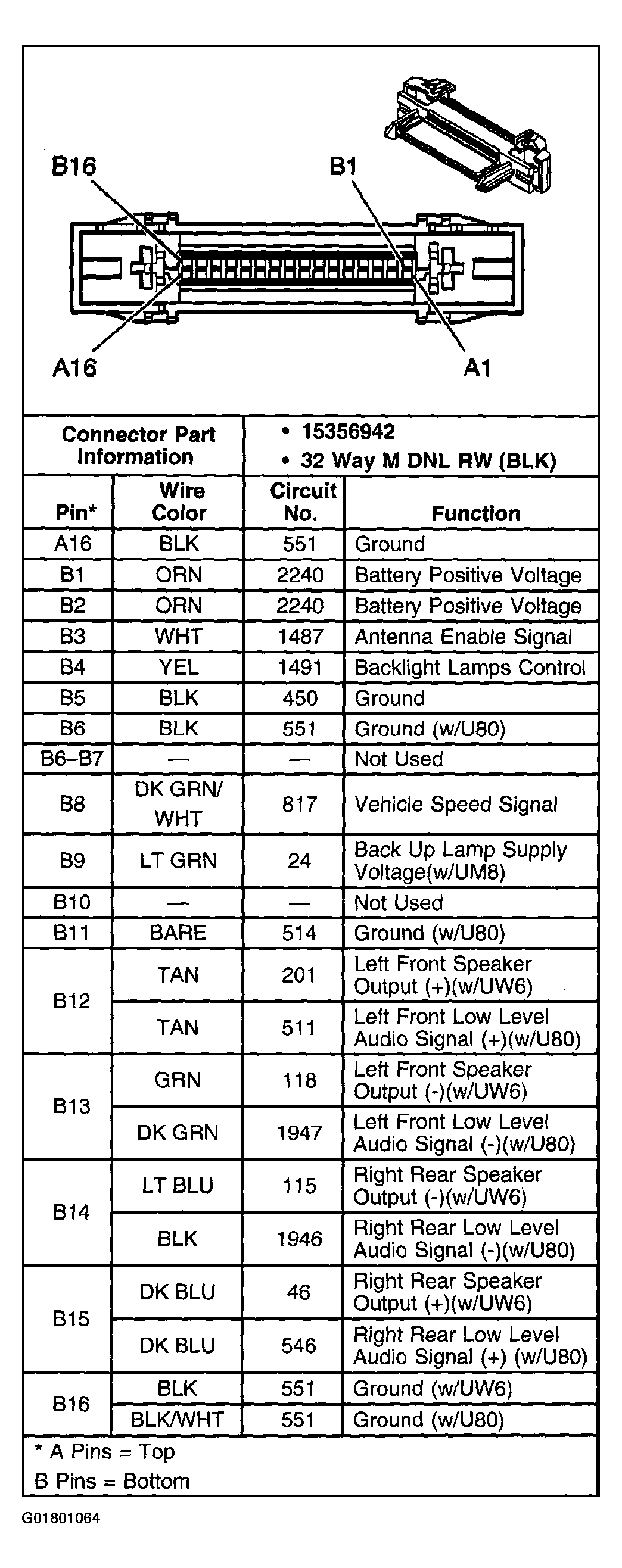

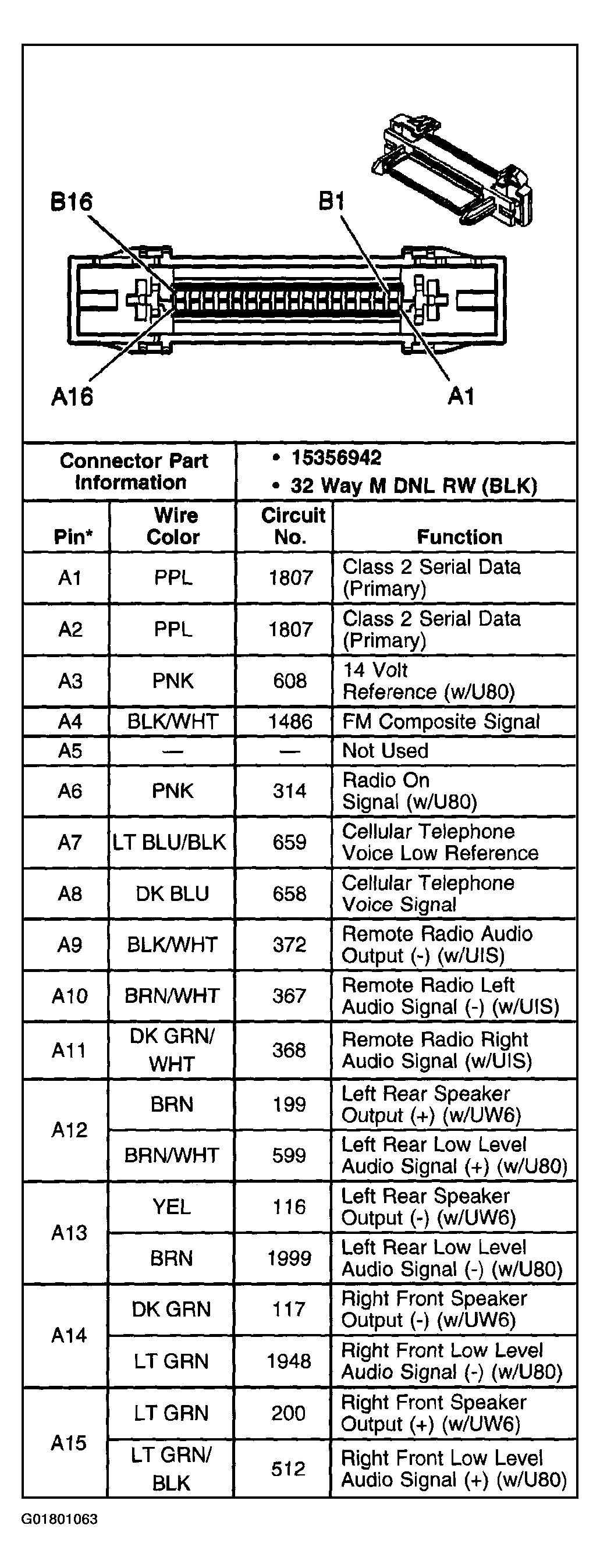

Fig 3: Radio (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Radio (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

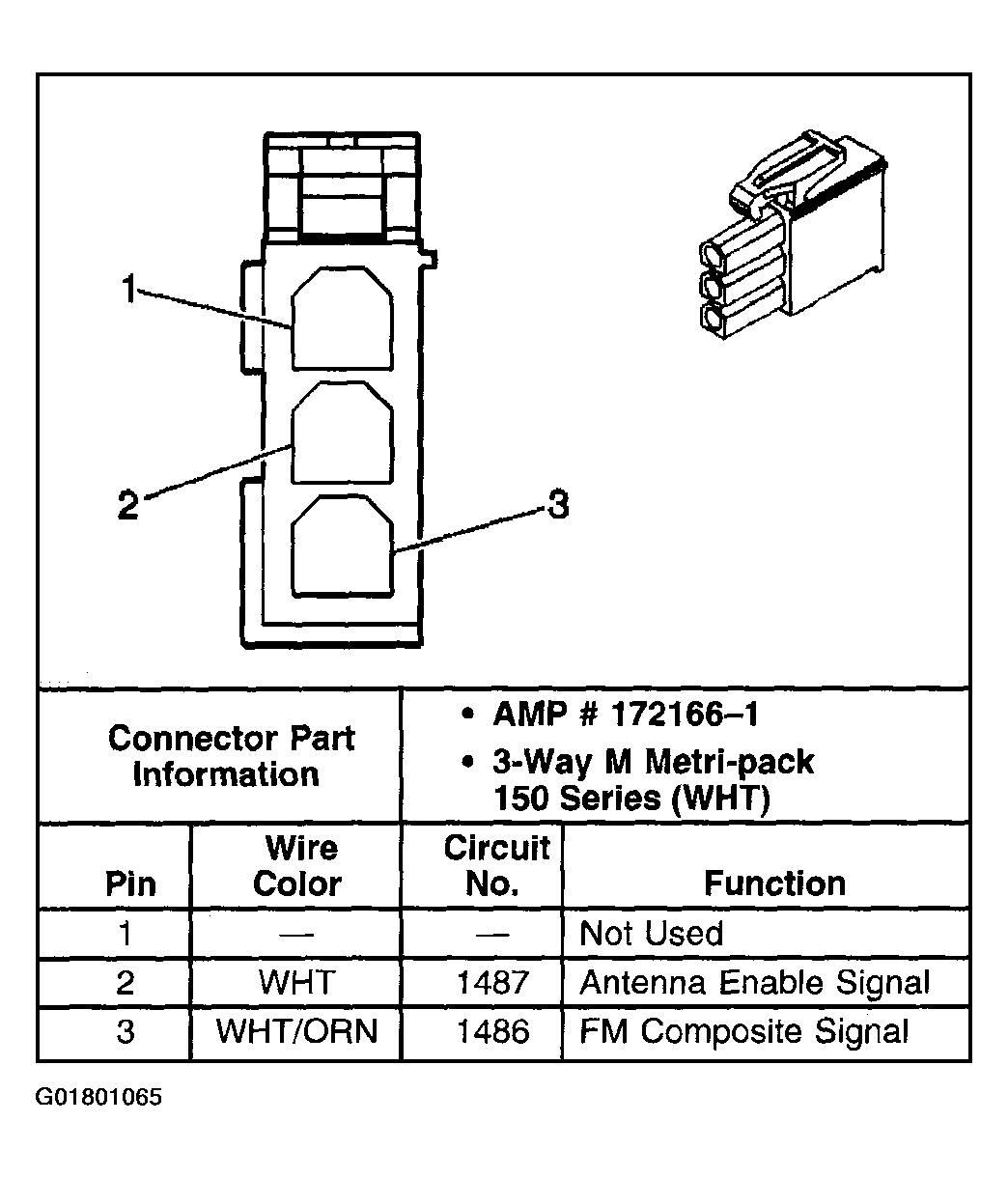

Fig 5: Radio Antenna Module

Courtesy of GENERAL MOTORS CORP.

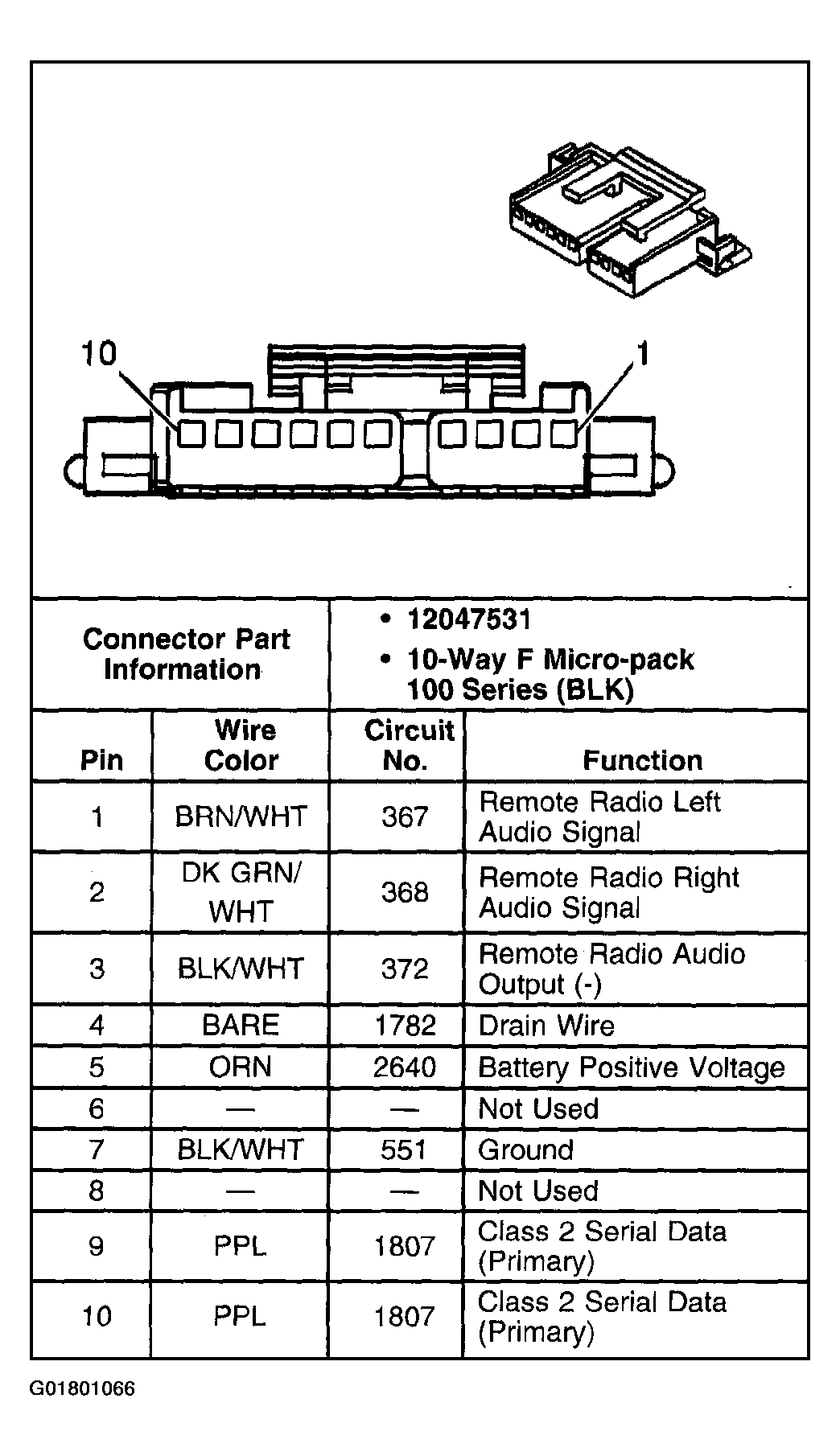

Fig 6: Remote Playback Device - CD Changer

Courtesy of GENERAL MOTORS CORP.

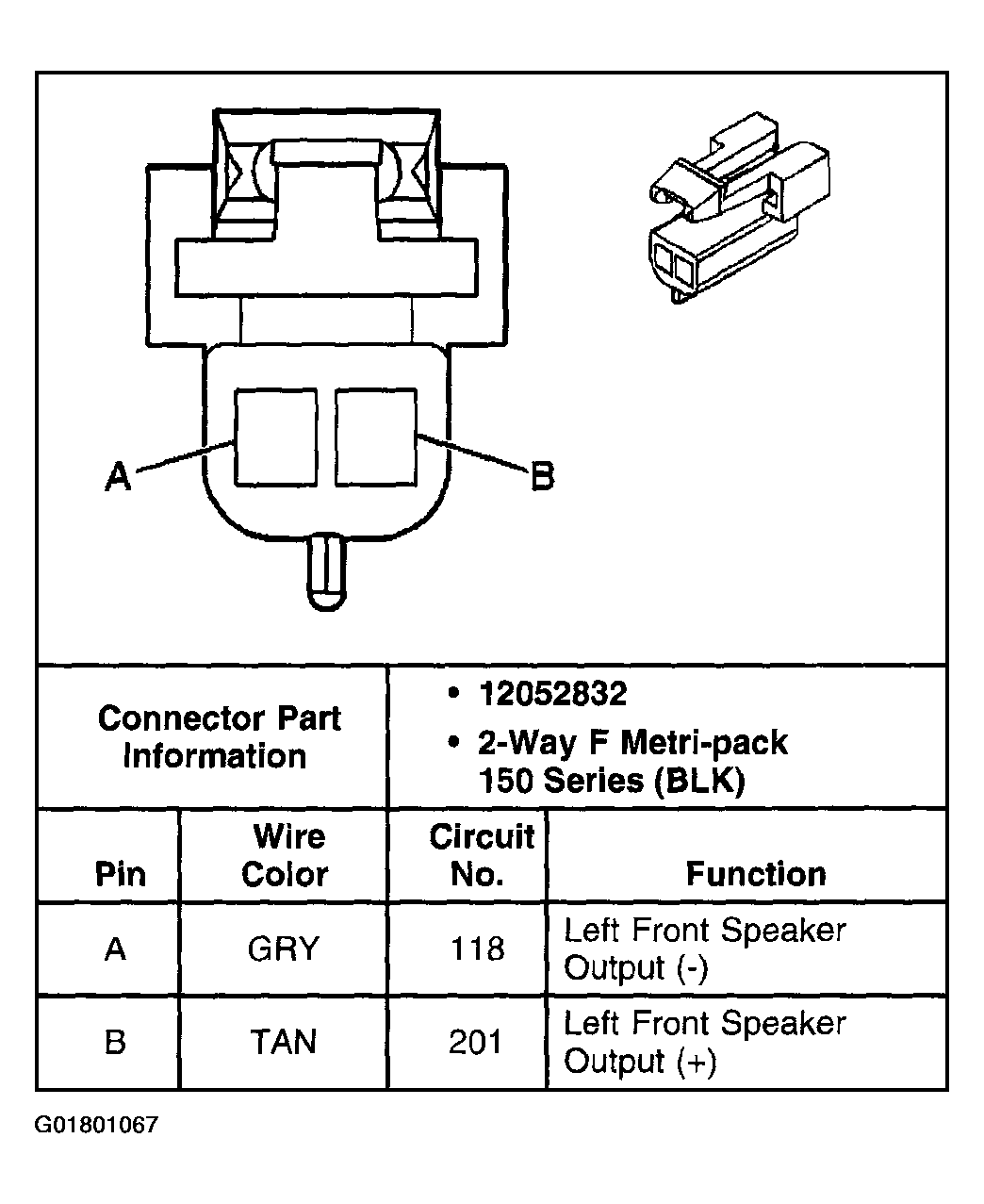

Fig 7: Speaker - LF Door

Courtesy of GENERAL MOTORS CORP.

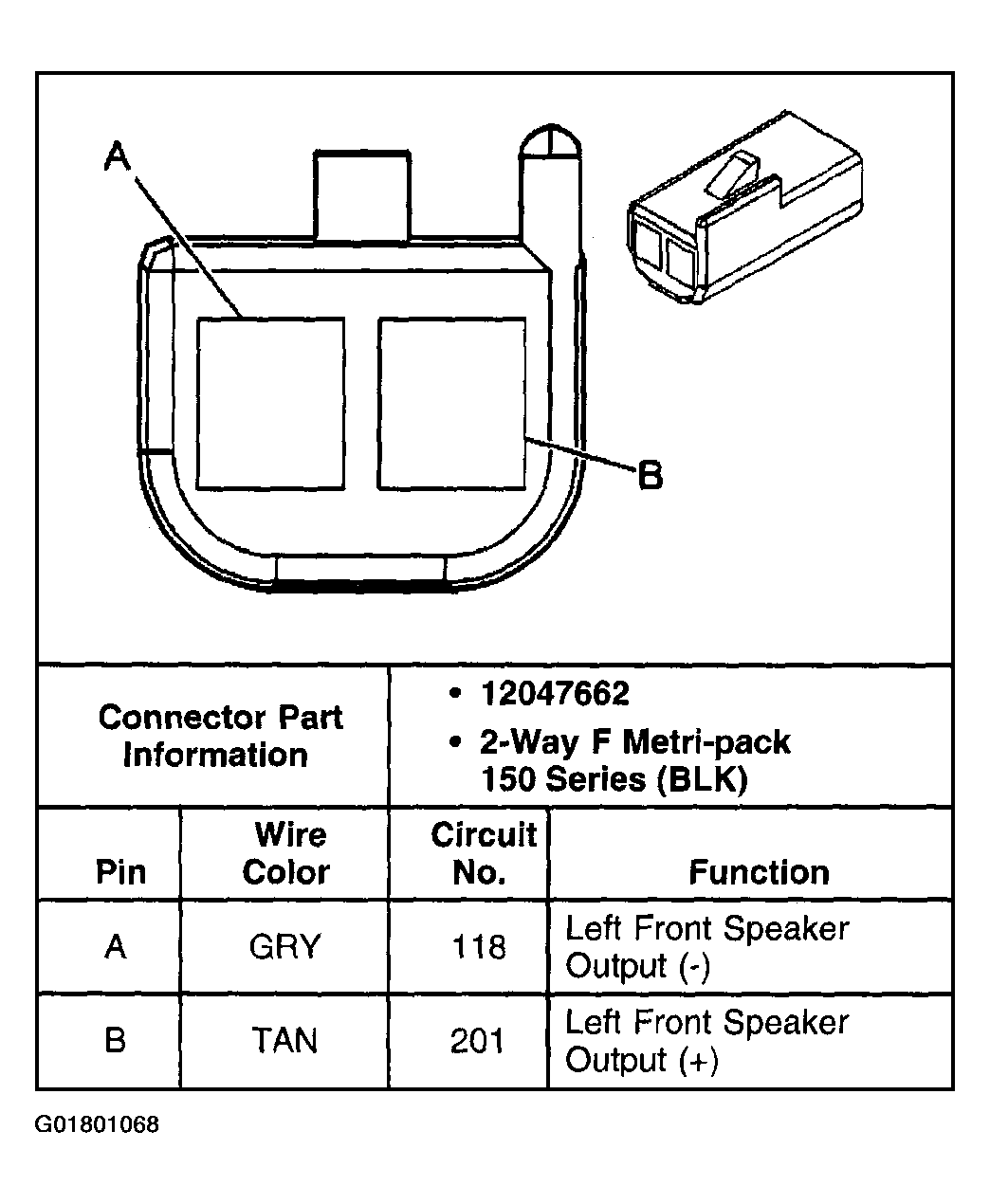

Fig 8: Speaker - LF Door Tweeter

Courtesy of GENERAL MOTORS CORP.

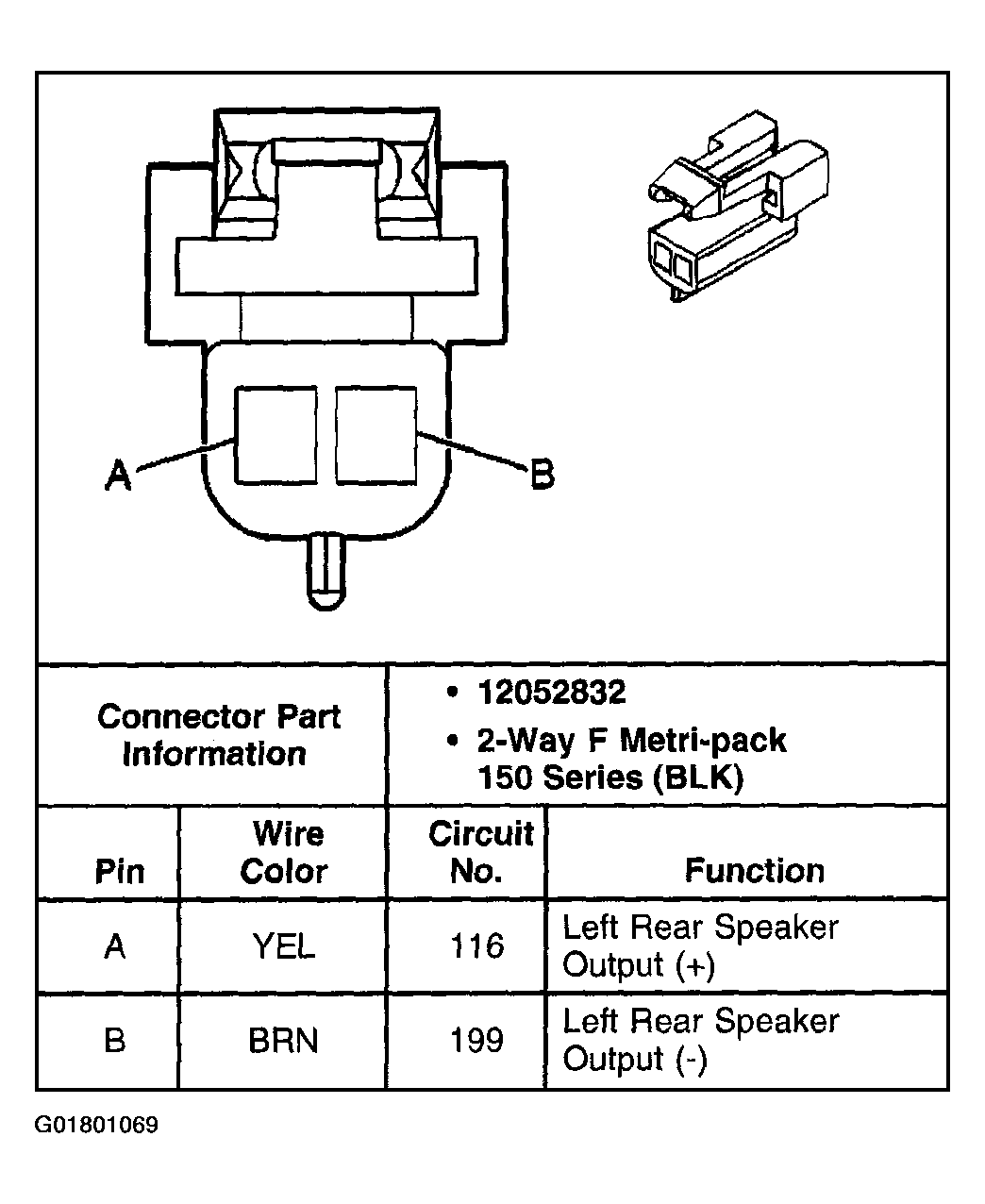

Fig 9: Speaker - LR

Courtesy of GENERAL MOTORS CORP.

Fig 10: Speaker - LR Door

Courtesy of GENERAL MOTORS CORP.

Fig 11: Speaker - LR Subwoofer (w/u80)

Courtesy of GENERAL MOTORS CORP.

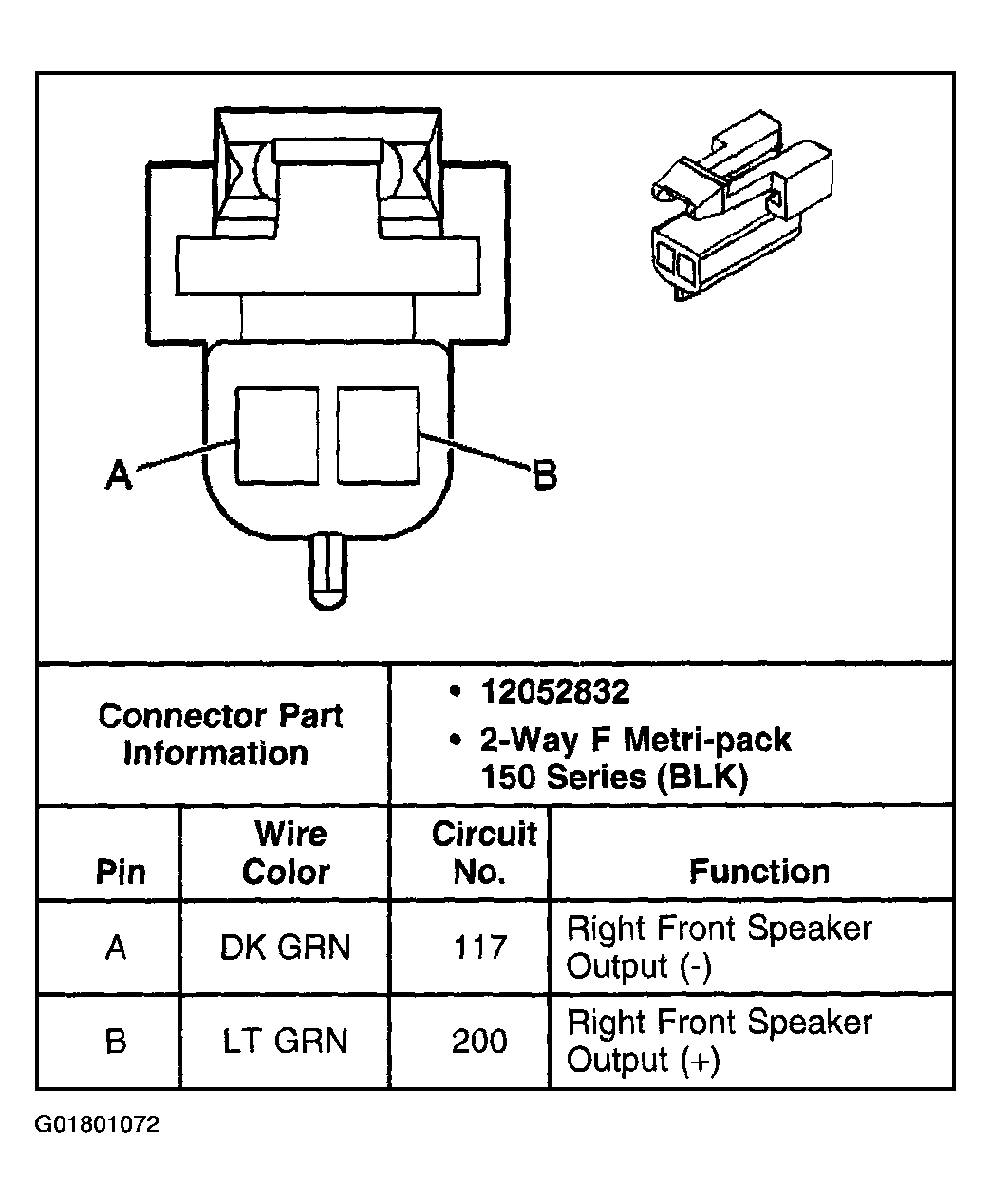

Fig 12: Speaker - RF Door

Courtesy of GENERAL MOTORS CORP.

Fig 13: Speaker - RR

Courtesy of GENERAL MOTORS CORP.

Fig 14: Speaker - RR Door

Courtesy of GENERAL MOTORS CORP.

Fig 15: Speaker - RR Subwoofer (w/U80)

Courtesy of GENERAL MOTORS CORP.
