Power Window Connector Face Views
Power Window Connector Face Views

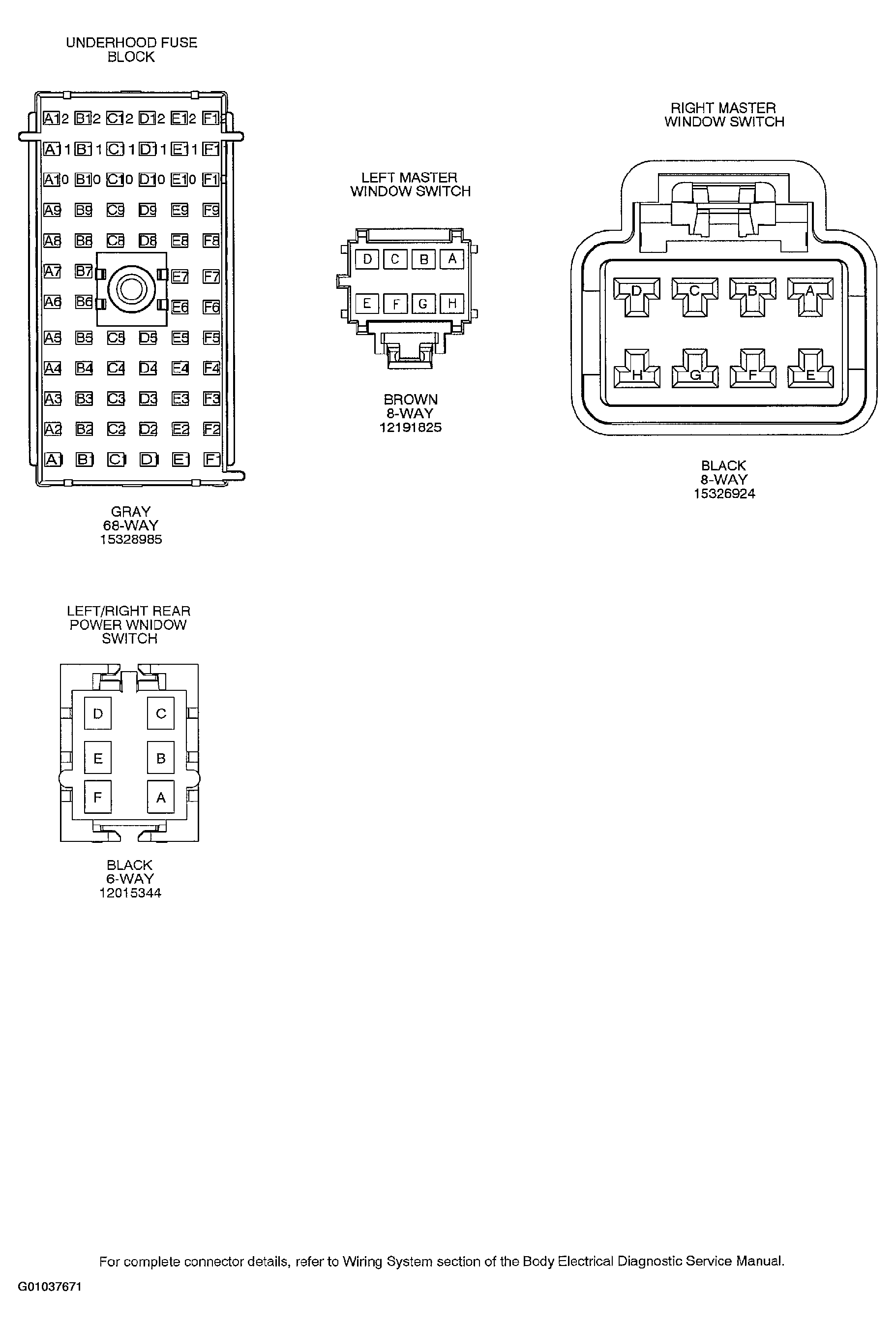

Fig 1: Power Window Connector Face Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
